LM..uu-AJ series Vocabulary linearibus pila gestus sunt a summus perficientur linearibus motu solutio, quae late in industriae automation, robots, cnc machina instrumenta et aliis agris. Hoc series products est ex summus qualis materiae cum optimum gerunt resistentia et humilis friction characteres, cursus lenis motus et altum load facultatem. Et Novifacta consilio concedit users ad adjust in afferentem alvi secundum specifica necessitatibus, providing meliorem stabilitatem et accurate. Praeterea, lm..uu-AJ serie gestus quoque habent signatum consilio, quod efficaciter prohibet intrusionem pulveris et impudicitiis et extenditur in ministerium vitae. Hoc series potest ponere optimum perficientur utrum operating ad altum celeritatem et sub gravibus onus conditionibus, faciens illud idealis electionis pro illis sequens agentibus et precise linearibus motus.

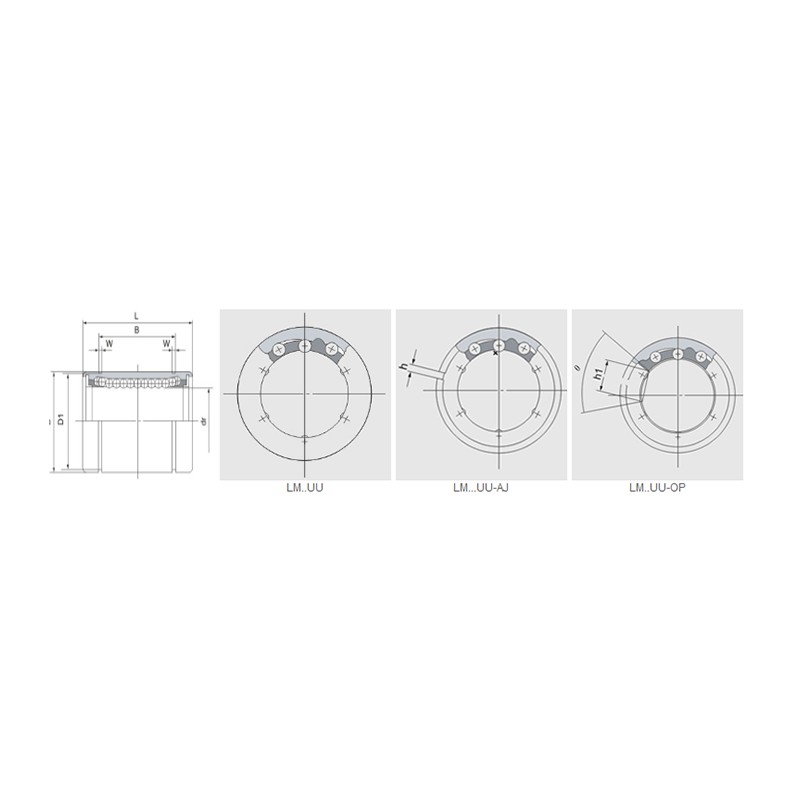

Parametri producti
| Resin Retainer | Nominal Palestrina Diameter | dr | Maior dimensiones et tolerantia | Eccentricity | Radiales Clearance (Max) | Basic Lond Rating (K) | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LM ... UU | Globus circuitu | Pondus (kg) | LM ... UU, AJ | Globus circuitu | Pondus | LM ... uu-op | Globus circuitu | Pondus (kg) | mm | mm | Tolerantia | Tolerantia | D mm | Tolerantia (μm) | L mm | Tolerantia (μm) | B mm | Tolerantia (μm) | W (mm) | D1 (mm) | h (mm) | H1 (mm) | θ θ | Praecisione | Altum | Dynamic | Stabilis | |
| LM ... UU | Globus circuitu | Pondus | LM ... UU, AJ | Globus circuitu | Pondus | LM ... uu-op | Globus circuitu | Pondus | Praecisione | Altum | Tolerantia (μm) | Tolerantia (μm) | Tolerantia (μm) | Praecisione | Altum | Co n | Co n | |||||||||||
| Lm3 | 4 | 1.35 | - | - | - | - | - | - | 3 | 3 | 0 / -5 | 0 / -8 | 7 | 0 / -9 | 10 | 0 / -120 | - | - | - | - | - | - | - | 4 | 8 | -3 | 69 | 105 |
| Lm4 | 4 | 1.9 | - | - | - | - | - | - | 4 | 4 | 0 / -5 | 0 / -8 | 8 | 0 / -9 | 12 | 0 / -120 | - | - | - | - | - | - | - | 4 | 8 | -3 | 88 | 127 |
| Lm5uu | 4 | 4 | - | - | - | - | - | - | 5 | 5 | 0 / -5 | 0 / -8 | 10 | 0 / -9 | 15 | 0 / -120 | 10.2 | 0 / -200 | 1.1 | 9.6 | - | - | - | 4 | 8 | -3 | 167 | 206 |
| Lm6uu | 4 | 7.6 | LM6uu, AJ | 4 | 7.5 | - | - | - | 6 | 6 | 0 / -6 | 0 / -9 | 12 | 0 / -11 | 19 | 0 / -200 | 13.5 | 0 / -200 | 1.1 | 11.5 | 1 | - | - | 8 | 12 | -3 | 206 | 265 |
| Lm8suu | 4 | 10.4 | LM8SUU, AJ | 4 | 10 | - | - | - | 8 | 8 | 0 / -6 | 0 / -9 | 15 | 0 / -11 | 17 | 0 / -200 | 11.5 | 0 / -200 | 1.1 | 14.3 | 1 | - | - | 8 | 12 | -3 | 176 | 216 |
| Lm8uu | 4 | 15 | Lm8uu, aj | 4 | 14.7 | - | - | - | 8 | 8 | 0 / -6 | 0 / -9 | 15 | 0 / -11 | 24 | 0 / -200 | 17.5 | 0 / -200 | 1.1 | 14.3 | 1 | - | - | 8 | 12 | -3 | 274 | 392 |
| Lm10uu | 4 | 29.5 | LM10uu, AJ | 4 | 29 | Lm10uu, op | 3 | 23 | 10 | 10 | 0 / -6 | 0 / -9 | 19 | 0 / -13 | 29 | 0 / -200 | 22 | 0 / -200 | 1.3 | 18 | 1 | 6.8 | LXXX ° | 8 | 12 | -4 | 372 | 549 |
| Lm12uu | 4 | 31.5 | LM12uu, AJ | 4 | 31 | Lm12uu, op | 3 | 25 | 12 | 12 | 0 / -6 | 0 / -9 | 21 | 0 / -13 | 30 | 0 / -200 | 23 | 0 / -200 | 1.3 | 20 | 1.5 | 8 | LXXX ° | 8 | 12 | -4 | 510 | 784 |
| Lm13uu | 4 | 43 | Lm13uu-aj | 4 | 42 | Lm13uu, op | 3 | 34 | 13 | 13 | 0 / -6 | 0 / -9 | 23 | 0 / -13 | 32 | 0 / -200 | 23 | 0 / -200 | 1.3 | 22 | 1.5 | 9 | LXXX ° | 8 | 12 | -4 | 510 | 784 |
| Lm16uu | 5 | 69 | LM16uu, AJ | 5 | 68 | Lm16uu, op | 4 | 52 | 16 | 16 | 0 / -6 | 0 / -9 | 28 | 0 / -13 | 37 | 0 / -200 | 26.5 | 0 / -200 | 1.6 | 27 | 1.5 | 11 | LXXX ° | 8 | 12 | -6 | 774 | 1180 |
| Lm20uu | 5 | 87 | LM20uu, AJ | 5 | 85 | Lm20uu, op | 4 | 69 | 20 | 20 | 0 / -7 | 0 / -10 | 32 | 0 / -16 | 42 | 0 / -200 | 30.5 | 0 / -200 | 1.6 | 30.5 | 1.5 | 11 | LX ° | 10 | 15 | -6 | 882 | 1370 |
| Lm25uu | 6 | 220 | LM25uu, AJ | 6 | 216 | Lm25uu, op | 5 | 188 | 25 | 25 | 0 / -7 | 0 / -10 | 40 | 0 / -16 | 59 | 0 / -300 | 41 | 0 / -300 | 1.85 | 38 | 2 | 12 | L ° | 10 | 15 | -6 | 980 | 1570 |
| Lm30uu | 6 | 250 | Lm30uu, aj | 6 | 245 | Lm30uu, op | 5 | 210 | 30 | 30 | 0 / -7 | 0 / -10 | 45 | 0 / -16 | 64 | 0 / -300 | 44.5 | 0 / -300 | 1.85 | 43 | 2.5 | 15 | L ° | 10 | 15 | -8 | 1570 | 2740 |
| Lm35uu | 6 | 390 | Lm35uu, aj | 6 | 384 | Lm35uu, op | 5 | 335 | 35 | 35 | 0 / -8 | 0 / -12 | 52 | 0 / -19 | 70 | 0 / -300 | 49.5 | 0 / -300 | 2.1 | 49 | 2.5 | 17 | L ° | 12 | 20 | -8 | 1670 | 3140 |
| Lm40uu | 6 | 585 | LM40UU, AJ | 6 | 579 | Lm40uu, op | 5 | 500 | 40 | 40 | 0 / -8 | 0 / -12 | 60 | 0 / -19 | 80 | 0 / -300 | 60.5 | 0 / -300 | 2.1 | 57 | 3 | 20 | L ° | 12 | 20 | -10 | 2160 | 420 |
| Lm50uu | 6 | 1580 | LM50UU, AJ | 6 | 1560 | Lm50uu, op | 5 | 1340 | 50 | 50 | 0 / -8 | 0 / -12 | 80 | 0 / -19 | 100 | 0 / -300 | 74 | 0 / -300 | 2.6 | 76.5 | 3 | 25 | L ° | 12 | 20 | -13 | 3820 | 7940 |
| Lm60uu | 6 | 1860 | LM60UU, AJ | 6 | 1820 | Lm60uu, op | 5 | 1610 | 60 | 60 | 0 / -9 | 0 / -15 | 90 | 0 / -22 | 110 | 0 / -300 | 85 | 0 / -300 | 3.15 | 86.5 | 3 | 30 | L ° | 17 | 25 | -13 | 4700 | 100 |
| Lm80uu | 6 | 4420 | LM80uu, AJ | 6 | 4300 | Lm80uu, op | 5 | 3650 | 80 | 80 | 0 / -9 | 0 / -15 | 120 | 0 / -22 | 140 | 0 / -400 | 105.5 | 0 / -400 | 4.15 | 116 | 3 | 40 | L ° | 17 | 25 | -20 | 7350 | 160 |
| Lm100uu | 6 | 8600 | LM100uu, AJ | 6 | 8540 | Lm100uu, op | 5 | 7200 | 100 | 100 | 0 / -10 | 0 / -20 | 150 | 0 / -25 | 175 | 0 / -400 | 125.5 | 0 / -400 | 4.15 | 145 | 3 | 50 | L ° | 20 | 30 | -20 | 14100 | 34800 |
| Lm120uu | 8 | 15000 | Lm120uu, aj | 8 | 14900 | Lm120uu, op | 6 | 11600 | 120 | 120 | 0 / -10 | 0 / -20 | 180 | 0 / -25 | 200 | 0 / -400 | 158.6 | 0 / -400 | 4.15 | 175 | 3 | 85 | LXXX ° | 20 | 30 | -25 | 16400 | 400 |
| Lm150uu | 8 | 20250 | LM150uu, AJ | 8 | 20150 | Lm150uu, op | 6 | 15700 | 150 | - | -13 | 0 / -25 | 210 | -29 | 240 | 0 / -400 | 170.6 | 0 / -400 | 5.15 | 204 | 3 | 105 | LXXX ° | 25 | 40 | -25 | 21100 | 54300 |
