Lme..uu..aj series Novifacta linearibus pila gestus sunt innovative components disposito specie summus praecisione motus applications. Hoc utitur summus qualitas ferro et provectus superficies curatio technology ut gerunt resistentia et servitium vitae. Haec series products habet ad adjustable structuram consilio et users potest adjust in afferentem alvi secundum specifica necessitatibus, ita consequi melius operating accurate et stabilitatem. Lme..uu..aj serie gestus late in automation apparatu, mechanica processus, 3D printing et aliis agri, et potest efficaciter redigendum friction et amplio motus efficientiam. Insuper institutionem modum huius serie est simplex et adaptability est fortis, faciens illud conveniens ad users ad celeriter reponere diversis cogitationibus. Utrum in summus onus aut summus celeritas operating environment, in lme..uu..aj series potest ponere optimum perficientur et facti momenti pars modern industriae automation.

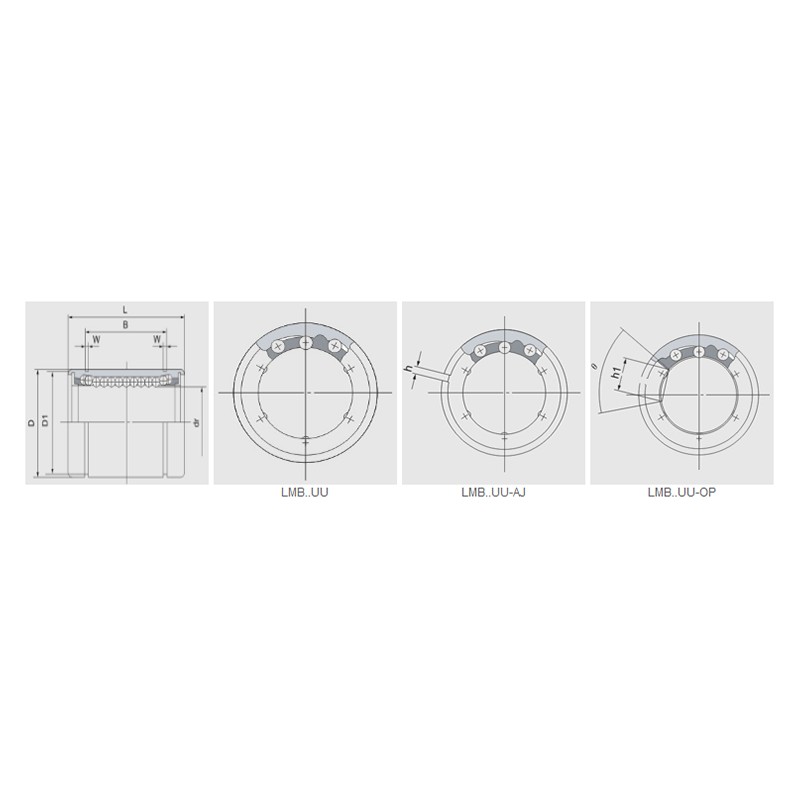

Parametri producti
| Resin Retainer | Nominal Palestrina Diameter | dr | Maior dimensiones et tolerantia | Eccentricity | Radiales Clearance (Max) | Basic Lond Rating (K) | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LME ... UU | Globus circuitu | Pondus (kg) | Lme ... UU, AJ | Globus circuitu | Pondus | LME ... UU | Globus circuitu | Pondus (kg) | mm | mm | Tolerantia | Tolerantia | D mm | Tolerantia (μm) | L mm | Tolerantia (μm) | B mm | Tolerantia (μm) | W (mm) | D1 (mm) | h (mm) | H1 (mm) | θ θ | Dynamic | Stabilis | ||
| Lme3 | 4 | 1.35 | - | - | - | - | - | - | 3 | 3 | - | 8/0 | 7 | 0 / -8 | 10 | 0 / -120 | - | - | - | - | - | - | - | 10 | -3 | 69 | 105 |
| Lme4 | 4 | 1.9 | - | - | - | - | - | - | 4 | 4 | - | 8/0 | 8 | 0 / -8 | 12 | 0 / -120 | - | - | - | - | - | - | - | 10 | -3 | 88 | 127 |
| Lme5uu | 4 | 11 | Lme5uu-aj | 4 | 10 | - | - | - | 5 | 5 | - | 8/0 | 12 | 0 / -8 | 22 | 0 / -200 | 14.5 | 0 / -200 | 1.1 | 11.5 | 1 | - | - | 12 | -3 | 206 | 265 |
| Lme8uu | 4 | 20 | Lme8uu, aj | 4 | 19.5 | - | - | - | 8 | 8 | - | 8/0 | 16 | 0 / -8 | 25 | 0 / -200 | 16.5 | 0 / -200 | 1.1 | 15.2 | 1 | - | - | 12 | -3 | 265 | 402 |
| Lme10uu | 4 | 29.5 | Lme10uu, aj | 4 | 29 | Lme10uu, op | 3 | 23 | 10 | 10 | - | 8/0 | 19 | 0 / -9 | 29 | 0 / -200 | 22 | 0 / -200 | 1.3 | 18 | 1 | 6.8 | LXXX ° | 12 | -4 | 372 | 549 |
| Lme12uu | 4 | 41 | Lme12uu-aj | 4 | 40 | Lme12uu, op | 3 | 32 | 12 | 12 | - | 8/0 | 22 | 0 / -9 | 32 | 0 / -200 | 22.9 | 0 / -200 | 1.3 | 21 | 1.5 | 7.5 | LXXVIII ° | 12 | -4 | 510 | 784 |
| Lme16uu | 5 | 57 | Lme16uu, AJ | 5 | 56 | Lme16uu, op | 4 | 44 | 16 | 16 | - | IX / -1 | 26 | 0 / -9 | 36 | 0 / -200 | 24.9 | 0 / -200 | 1.3 | 24.9 | 1.5 | 10 | LXXVIII ° | 12 | -4 | 578 | 892 |
| Lme20uu | 5 | 91 | Lme20uu, aj | 5 | 90 | Lme20uu, op | 4 | 75 | 20 | 20 | - | IX / -1 | 32 | 0 / -11 | 45 | 0 / -200 | 31.5 | 0 / -200 | 1.6 | 30.3 | 2 | 10 | LX ° | 15 | -6 | 862 | 1370 |
| Lme25uu | 6 | 215 | Lme25uu, aj | 6 | 212 | Lme25uu, op | 5 | 181 | 25 | 25 | - | XI / -1 | 40 | 0 / -11 | 58 | 0 / -300 | 44.1 | 0 / -300 | 1.85 | 37.5 | 2 | 12.5 | LX ° | 15 | -6 | 980 | 1570 |
| Lme30uu | 6 | 325 | Lme30uu, AJ | 6 | 320 | Lme30uu, op | 5 | 272 | 30 | 30 | - | XI / -1 | 47 | 0 / -11 | 68 | 0 / -300 | 52.1 | 0 / -300 | 1.85 | 44.5 | 2 | 12.5 | L ° | 15 | -8 | 1570 | 2740 |
| Lme40uu | 6 | 705 | Lme40uu-AJ | 6 | 694 | Lme40uu, op | 5 | 600 | 40 | 40 | - | XIII / -2 | 62 | 0 / -13 | 80 | 0 / -300 | 60.6 | 0 / -300 | 2.15 | 59 | 3 | 16.8 | L ° | 17 | -8 | 2160 | 4020 |
| Lme50uu | 6 | 1130 | Lme50uu, aj | 6 | 1110 | Lme50uu, op | 5 | 970 | 50 | 50 | - | XIII / -2 | 75 | 0 / -13 | 100 | 0 / -300 | 77.6 | 0 / -300 | 2.65 | 72 | 3 | 21 | L ° | 17 | -13 | 3820 | 7940 |
| Lme60uu | 6 | 250 | Lme60uu-aj | 6 | 20 | Lme60uu, op | 5 | 1580 | 60 | 60 | - | XIII / -2 | 90 | 0 / -15 | 125 | 0 / -400 | 101.7 | 0-400 | 3.15 | 86.5 | 3 | 27.2 | LIV ° | 20 | -13 | 4700 | 9800 |
