Et SQD Series Ball iuncturam virga finem afferentem est summus perficientur mechanica connexionem component late in aviation, automobiles et industriae apparatu. Sunt facta de gere, repugnans materiae, ut optimum corrosio resistentia et lassitudine resistentia, et potest ponere firmum operationem perficientur sub altum onerat et extrema environments. Design features in SQD series includit flexibile gyrationis capabilities et facile-ut-install structuris, permittens ad efficaciter portare et transmit vim in variis applications. Hoc pila iuncturam consilio permittit liberum motus in plures partes ad accommodare diversis ludis necessitates. Praeterea, in SQD series products venit in amplis magnitudinum in occursum necessitates diversis apparatu, cursus in altiore reliability et servitium vitae ratio. Utrum in robotics, hydrau systems vel mechanica cogitationes, SQD series Ball iuncturam virga finis beati sunt key components ut efficiens et firmum operationem.
Parametri producti

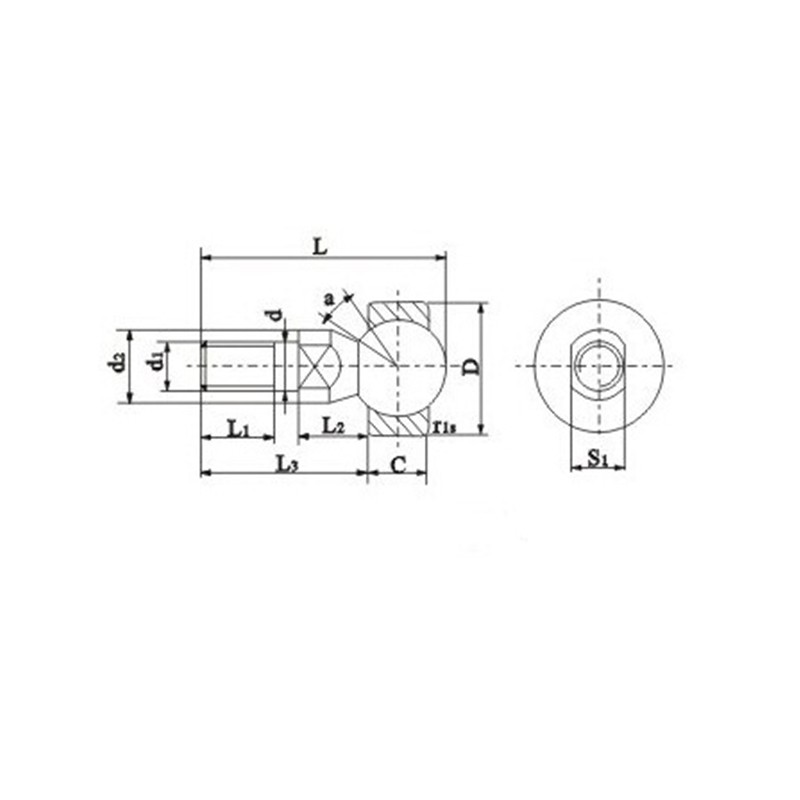

| Designatio | Dimensiones (mm) | Static onus ratings (kn) | Pondus (kg) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D1 | D2 | l1 | l2 | l3 | L | S1 | C | D | rs | α ° ≈ | |||
| Sqd5 | M5 | 9 | 8 | 8 | 19 | 27.5 | 7 | 6 | 16 | 0.3 | 25 | 2 | 0.014 |
| Sqd6 | M6 | 10 | 11 | 8.8 | 23.8 | 33.5 | 8 | 6.75 | 18 | 0.3 | 25 | 3.2 | 0.021 |
| Sqd8 | M8 | 12 | 12 | 11.6 | 28.6 | 41 | 10 | 9 | 22 | 0.3 | 25 | 5.7 | 0.042 |
| Sqd10 | M10 × 1,25 | 14 | 15 | 14.2 | 34.2 | 49 | 11 | 10.5 | 26 | 0.3 | 25 | 9.2 | 0.067 |
| Sqd12 | M12 × 1,25 | 17 | 17 | 15.1 | 38.1 | 55.1 | Est | 12 | 30 | 0.5 | 25 | 14 | 0.108 |
| Sqd14 | M14 × 1.5 | 19 | 22 | 16.8 | 51.3 | 70.7 | 17 | 13.5 | 34 | 0.5 | 20 | 19 | 0.167 |
| Sqd16 | M16 × 1.5 | 22 | 23 | 18 | 54.5 | 76.3 | 19 | 15 | 38 | 0.5 | 20 | 26 | 0.238 |
