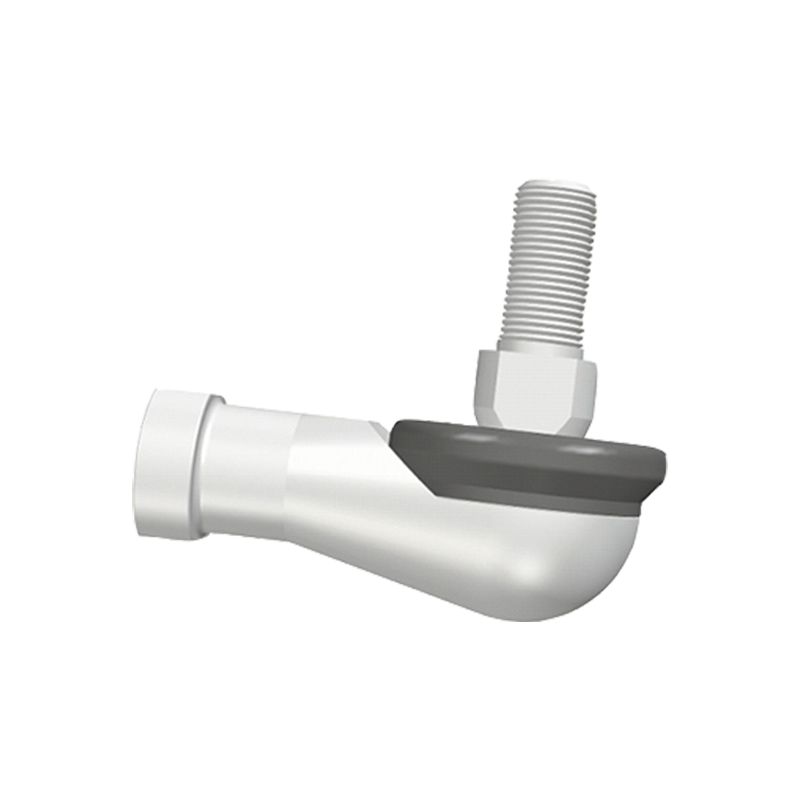

SQY ...- Rs Series Ball iuncturam virga finis beata sunt altus-perficientur mechanica components qui late in variis industriae apparatu. Haec afferentem habet sphaerica iuncturam consilio, quod potest providere flexibile motus ad plures angulos, faciens illud maxime idoneam ad applications requiring princeps onerat et dynamic motus. Et gestus in SQY ...- Rs Series fiunt ex summus qualis materiae et optimum gerunt resistentia et corrosio resistentia, ensuring diu term stabilis operatio. Eius consilio features includit humilis frictio facilis installation et sustentationem et apta applications ut robotic arma eiciam systems et agriculturae machinatione. In addition, SQY ...- Rs Series Gustas sunt etiam available in variis magnitudinum et cubits in occursum necessitatibus diversis customers et specimen ad efficientem motus transmissionem.
Parametri producti

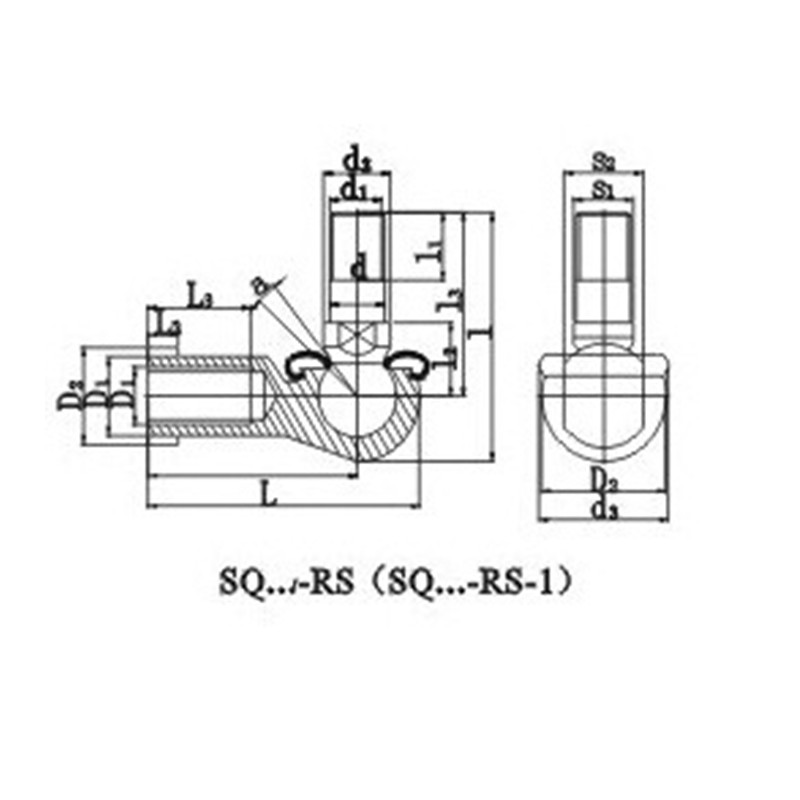

| Designatio | Dimensiones (mm) | Static onus ratings (kn) | Pondus (kg) | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D1 | D2 | D3 | l | l1 | l2 | l3 | S1 | L | L1 | L2 | L3 | D1 | D2 | D3 | S2 | α ° ≈ | |||
| Sqy4, Rs | 10-32 | 9 | 19 | 29 | 8 | 10 | 21 | 7 | 35 | 27 | 4 | 14 | 9 | 11 | 16 | 9 | 25 | 22 | 0.026 |
| Sqy6, Rs | I / 4-28 | 10 | 20 | 35.5 | 11 | 11 | 26 | 8 | 40 | 30.5 | 5 | 14 | 10 | 13 | 19 | 11 | 25 | 3.5 | 0.039 |
| Sqy7, Rs | V / 16-24 | 12 | 24 | 42.5 | 12 | 14 | 31 | 10 | 48 | 36.5 | 5 | 17 | 12.5 | 16 | 23 | 14 | 25 | 6.6 | 0.068 |
| Sqy9, Rs | III / 8-24 | 14 | 30 | 50.5 | 15 | 17 | 37 | 11 | 57 | 43.5 | 6.5 | 21 | 15 | 19 | 27 | 17 | 25 | 10 | 0.112 |
| Sqy11, Rs | VII / 16-20 | 17 | 32 | 57.5 | 17 | 19 | 42 | 15 | 66 | 50.5 | 6.5 | 25 | 17.5 | 22 | 31 | 19 | 25 | 16 | 0.164 |
| Sqy12, Rs | I / 2-20 | 19 | 38 | 73.5 | 22 | 21.5 | 56 | 17 | 75 | 57.5 | 8 | 26 | 20 | 25 | 35 | 22 | 25 | 19 | 0.254 |
| Sqy15, Rs | V / 8-18 | 22 | 44 | 79.5 | 23 | 23.5 | 60 | 19 | 84 | 64.5 | 8 | 32 | 22 | 27 | 39 | 22 | 20 | 26 | 0.336 |
| Sqy19, Rs | III / 4-16 | 23 | 45 | 90 | 25 | 26.5 | 68 | 20 | 93 | 71 | 10 | 34 | 25 | 31 | 44 | 27 | 20 | 33 | 0.464 |
