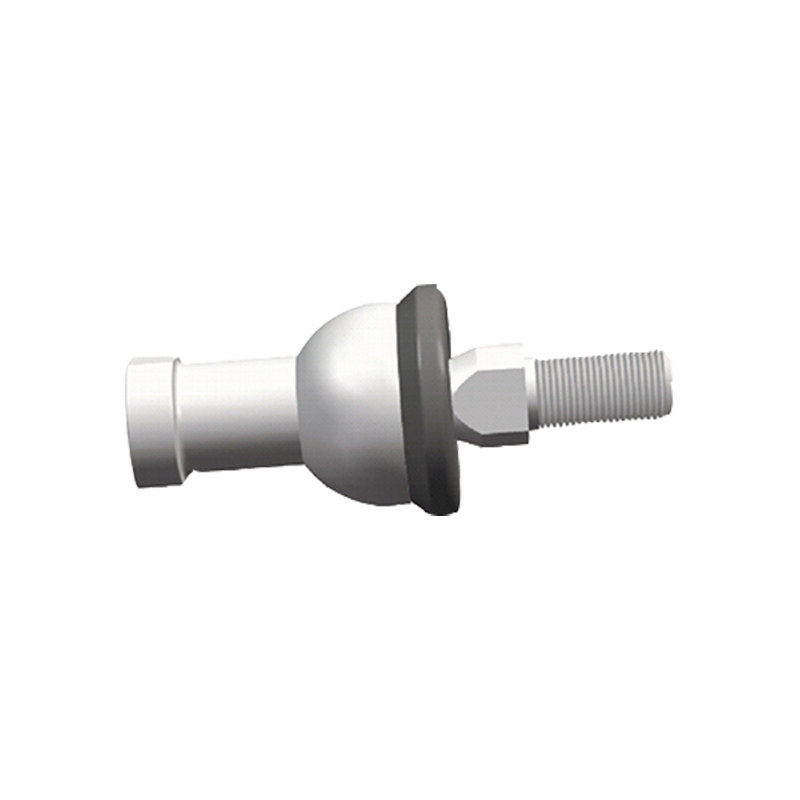

Sqz ...- Rs Series Ball iuncturam virga finem beata sunt princeps-perficientur, durabile mechanica components late in variis industriae et mechanica systems. Consilio huius afferentem enables flexibile motus sub axial et radiales onerat, providing optimum operational stabilitatem. Et SQZ ...- Rs Series est fabricari cum summus qualis materiae ut eius reliability in altum temperaturis et dura ambitus. Insuper et unique signantes structuram efficaciter prohibet intrusionem pulveris et lutum, extendens ministerium vitae afferentem. Est facile ad install et idoneam multis agris, comprehendo automobiles, aviation, constructione machinery, etc.
Parametri producti

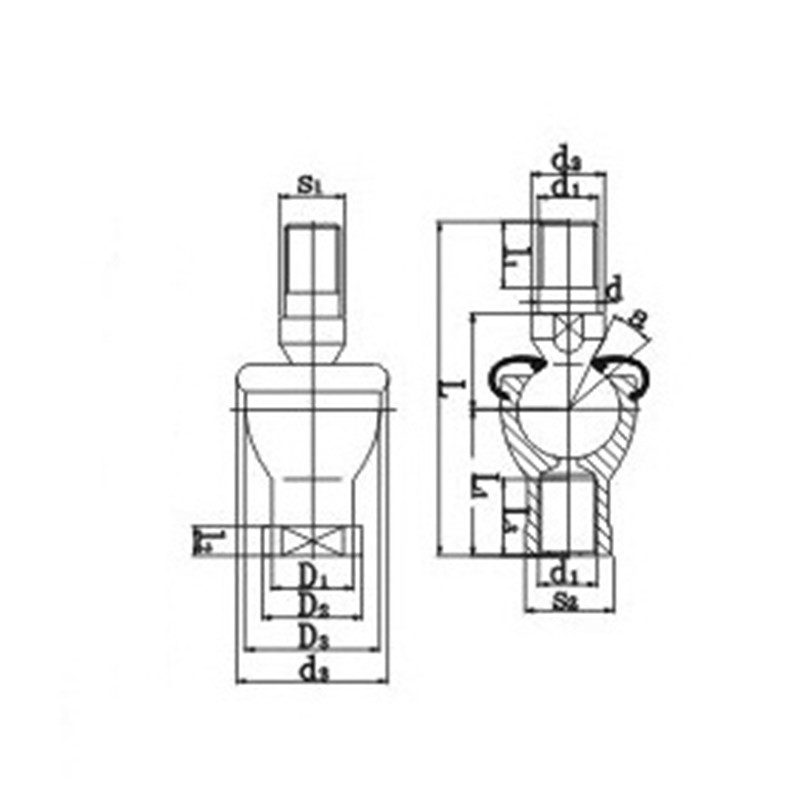

| Designatio | Dimensiones (mm) | Static onus ratings (kn) | Pondus (kg) | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D1 | D2 | D3 | l1 | l2 | S1 | L | L1 | L2 | L3 | D1 | D2 | D3 | S2 | α ° ≈ | |||
| SQZ5, Rs | M5 | 9 | 19 | 8 | 11 | 7 | 46 | 24 | 4 | 12 | 9 | 11 | 17 | 9 | 15 | 2.8 | 0.025 |
| Sqz6, Rs | M6 | 10 | 20 | 11 | 12.2 | 8 | 55.2 | 28 | 5 | 15 | 10 | 13 | 20 | 11 | 15 | 3.7 | 0.041 |
| Sqz8, Rs | M8 | 12 | 24 | 12 | 16 | 10 | 65 | 32 | 5 | 16 | 12.5 | 16 | 24 | 14 | 15 | 5.8 | 0.075 |
| SQZ10 Rs | M10 × 1,25 | 14 | 30 | 15 | 19.5 | 11 | 74.5 | 35 | 6.5 | 18 | 15 | 19 | 28 | 17 | 15 | 8.4 | 0.12 |
| Sqz12, Rs | M12 × 1,25 | 17 | 32 | 17 | 21 | 15 | 84 | 40 | 6.5 | 20 | 17.5 | 22 | 32 | 19 | 15 | 11 | 0.18 |
| Sqz14, Rs | M14 × 1.5 | 19 | 38 | 22 | 23.5 | 17 | 103 | 45 | 8 | 25 | 20 | 25 | 36 | 22 | 11 | 15 | 0.27 |
| Sqz16, Rs | M16 × 1.5 | 22 | 44 | 23 | 25.5 | 19 | 112 | 50 | 8 | 27 | 22 | 27 | 40 | 22 | 11 | 15 | 0.36 |
| Sqz18, Rs | M18 × 1.5 | 23 | 45 | 25 | 31 | 20 | 130.5 | 58 | 10 | 32 | 25 | 31 | 45 | 27 | 11 | 19 | 0.54 |
| Sqz20, Rs | M20 × 1.5 | 27 | 50 | 25 | 29 | 24 | 133 | 63 | 10 | 38 | 27.5 | 34 | 45 | 30 | 7.5 | 19 | 0.57 |
| SQZ22 Rs | M22 × 1.5 | 27 | 52 | 26 | 33 | 24 | 145 | 70 | 12 | 43 | 30 | 37 | 50 | 32 | 7.5 | 23 | 0.76 |
