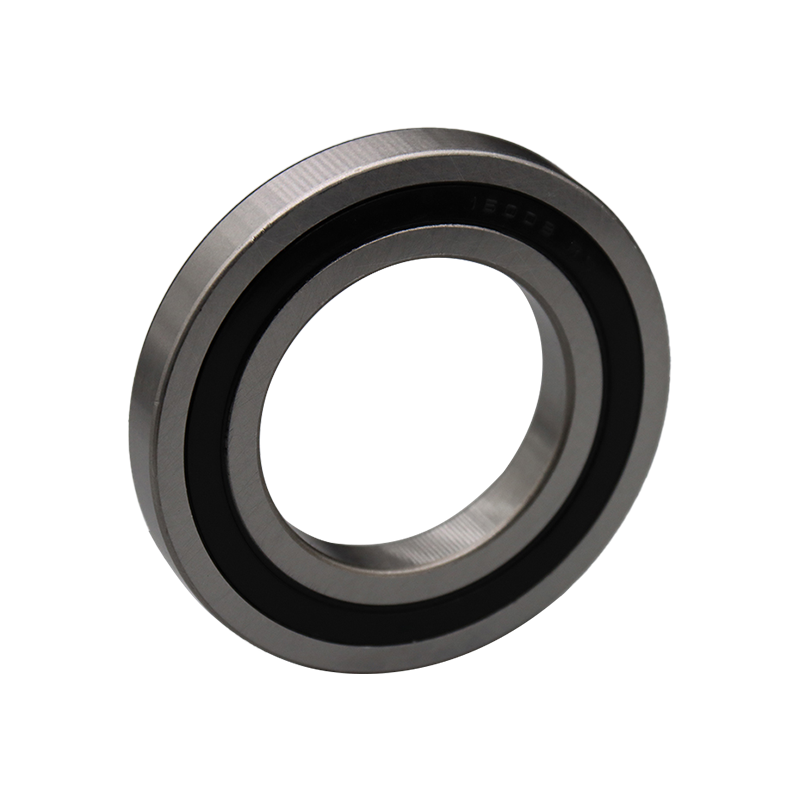

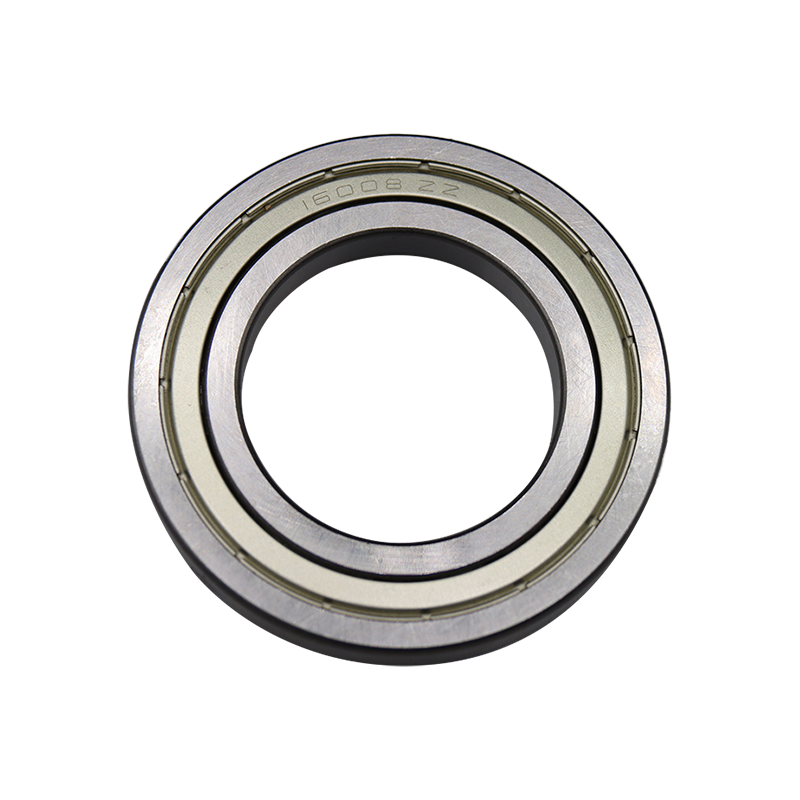

MDC series alta sulcus pila afferentem est late usus volvens afferentem. Habet characteres humilis friction resistentiam et altum celeritate, et potest resistere radiales onus aut combined radiale et axial onus. Hoc series de gestus ex anulus exterioris, an interiore circulum, a paro of ferro balls et a paro of caveis. Sunt variis exempla, ut (XVI) XI, (XVI) XII, etc., cum interioribus diametris vndique a 25mm ad 100mm et exteriores diametris et crassitudines quoque variantur. Ob sua optimum perficientur et amplis applications, MDC series alta sulcus pila gestus ludere an maximus munus in machinatione, automobiles, elevators et alia industries.
Parametri producti
| ADFERENDA | Dimensionem (mm) | Basic onus ratings (K) | Volo Ratings (RPM) | Pondus | |||||
| d | D | B | Rs min | Credo | COR | Uncto | Oleum | (KG) | |
| 16001 | 12 | 28 | 7 | 0.3 | 5.1 | 2.39 | 26000 | 30000 | 0.019 |
| 16002 | 15 | 32 | 8 | 0.3 | 5.6 | 2.83 | 22000 | 26000 | 0.025 |
| 16003 | 17 | 35 | 8 | 0.3 | 6.8 | 3.35 | 20000 | 24000 | 0.032 |
| 16004 | 20 | 42 | 8 | 0.3 | 7.9 | 4.5 | 18000 | 21000 | 0.051 |
| 16005 | 25 | 47 | 8 | 0.3 | 8.35 | 5.1 | 15000 | 18000 | 0.06 |
| 16006 | 30 | 55 | 9 | 0.3 | 11.2 | 7.35 | 13000 | 15000 | 0.091 |
| 16007 | 35 | 62 | 9 | 0.3 | 11.7 | 8.2 | 12000 | 14000 | 0.11 |
| 16008 | 40 | 68 | 9 | 0.3 | 12.6 | 9.65 | 10000 | 12000 | 0.125 |
| 16009 | 45 | 75 | 10 | 0.6 | 12.9 | 10.5 | 9000 | 11000 | 0.171 |
| 16010 | 50 | 80 | 10 | 0.6 | 13.2 | 11.3 | 8400 | 9800 | 0.18 |
| 16011 | 55 | 90 | 11 | 0.6 | 18.6 | 15.3 | 7700 | 9000 | 0.258 |
| 16012 | 60 | 95 | 11 | 0.6 | 20 | 17.5 | 7000 | 8300 | 0.283 |
| 16013 | 65 | 100 | 11 | 0.6 | 20.5 | 18.7 | 6500 | 7700 | 0.307 |
| 16014 | 70 | 110 | 13 | 0.6 | 24.4 | 22.6 | 6100 | 7100 | 0.441 |
| 16015 | 75 | 115 | 13 | 0.6 | 25 | 24 | 5700 | 6700 | 0.464 |
| 16016 | 80 | 125 | 14 | 0.6 | 25.4 | 25.1 | 5300 | 6200 | 0.597 |
| 16017 | 85 | 130 | 14 | 0.6 | 25.9 | 26.2 | 5000 | 5900 | 0.626 |
| 16018 | 90 | 140 | 16 | 1 | 33.5 | 33.5 | 4700 | 5600 | 0.848 |
| 16019 | 95 | 145 | 16 | 1 | 34.5 | 35 | 4500 | 5300 | 0.885 |
| 16020 | 100 | 150 | 16 | 1 | 35 | 36.5 | 4200 | 5000 | 0.91 |
| 16021 | 105 | 160 | 18 | 1 | 52 | 50.5 | 4000 | 4700 | 1.2 |
| 16022 | 110 | 170 | 19 | 1 | 57.5 | 56.5 | 3800 | 4500 | 1.46 |
| 16024 | 120 | 180 | 19 | 1 | 63 | 63.5 | 3500 | 4100 | 1.56 |
| 16026 | 130 | 200 | 22 | 1.1 | 80 | 79.5 | 3200 | 3800 | 2.31 |
| 16028 | 140 | 210 | 22 | 1.1 | 82 | 85 | 3000 | 3500 | 2.45 |
| 16030 | 150 | 225 | 24 | 1.1 | 96.5 | 101 | 2800 | 3200 | 3.07 |
| 16032 | 160 | 240 | 25 | 1.5 | 99 | 108 | 2600 | 3000 | 3.64 |
| 16034 | 170 | 260 | 28 | 1.5 | 119 | 128 | 2400 | 2800 | 4.93 |
| 16036 | 180 | 280 | 31 | 2 | 117 | 134 | 2300 | 2700 | 6.49 |
| 16038 | 190 | 290 | 31 | 2 | 134 | 156 | 2100 | 2500 | 6.77 |
| 16040 | 200 | 310 | 34 | 2 | 142 | 160 | 2000 | 2400 | 8.68 |
