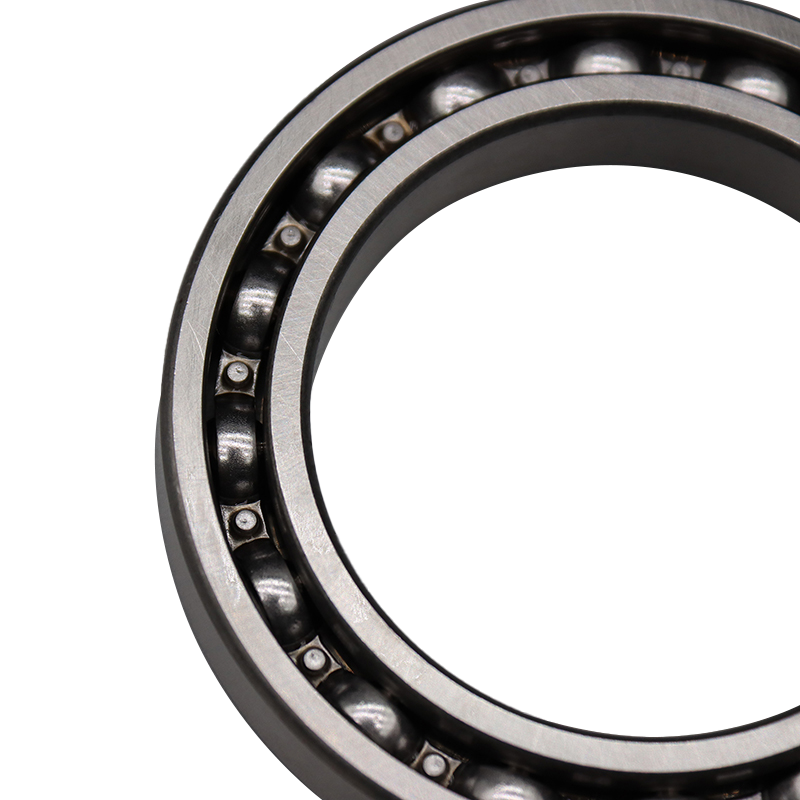

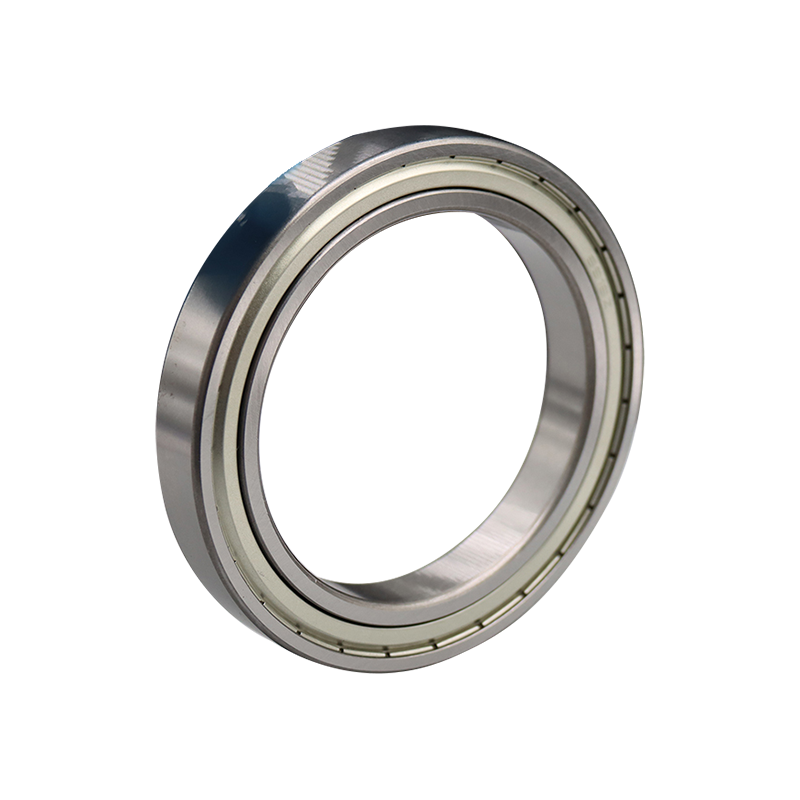

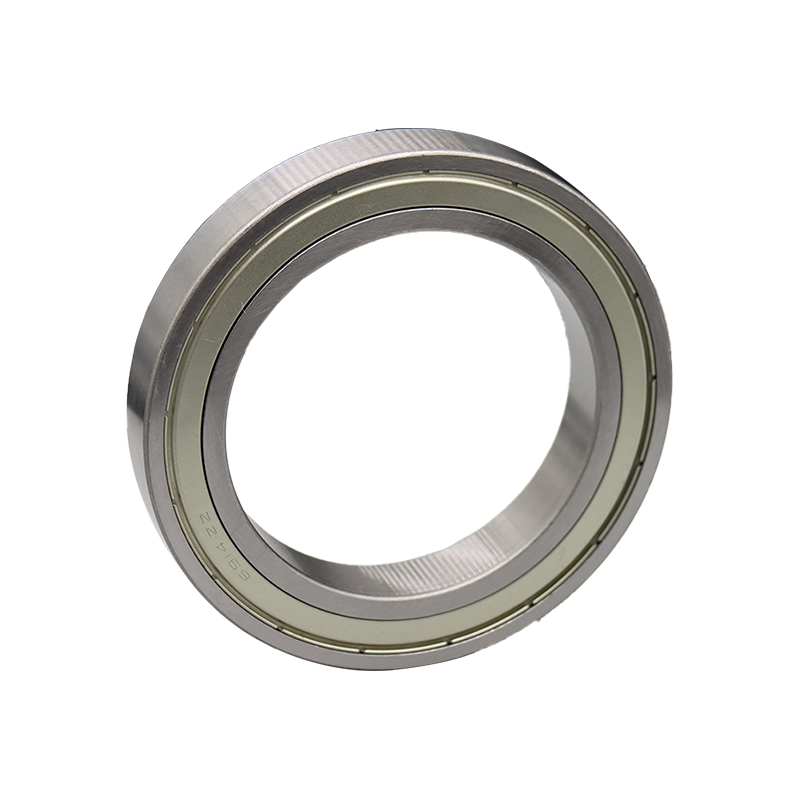

In (VI) CM series alta sulcus pila afferentem est praecisione afferat cum interiore diameter de 10mm, exterior diameter de 22mm et crassitudine 6mm. Haec portantes late in motoribus, aquae pumps, potentia instrumenta, aeris compressors, familia adjumenta et alia apparatu, et est favent ad suum fortis onus-afferentem facultatem et firmum operationem. In eodem tempore, in (VI) CM series gestus requirere princeps productio praecisione et idoneam ad summus celeritas gyrationis et ferre quadam radiales onerat. Sunt necessaria key components in multis mechanica apparatu.
Parametri producti
| ADFERENDA | Dimensionem (mm) | Basic onus ratings (K) | Volo Ratings (RPM) | Pondus | |||||
| d | D | B | Rs min | Credo | COR | Uncto | Oleum | (KG) | |
| 6900 | 10 | 22 | 6 | 0.3 | 2.7 | 1.27 | 30000 | 36000 | 0.009 |
| 6901 | 12 | 24 | 6 | 0.3 | 2.89 | 1.46 | 27000 | 32000 | 0.011 |
| 6902 | 15 | 28 | 7 | 0.3 | 3.65 | 2 | 24000 | 28000 | 0.016 |
| 6903 | 17 | 30 | 7 | 0.3 | 4.65 | 2.58 | 22000 | 26000 | 0.018 |
| 6904 | 20 | 37 | 9 | 0.3 | 6.4 | 3.7 | 19000 | 23000 | 0.036 |
| 6905 | 25 | 42 | 9 | 0.3 | 7.05 | 4.55 | 16000 | 19000 | 0.042 |
| 6906 | 30 | 47 | 9 | 0.3 | 7.25 | 5 | 14000 | 17000 | 0.048 |
| 6907 | 35 | 55 | 10 | 0.6 | 9.55 | 6.85 | 12000 | 15000 | 0.074 |
| 6908 | 40 | 62 | 12 | 0.6 | 12.2 | 8.9 | 11000 | 13000 | 0.11 |
| 6909 | 45 | 68 | 12 | 0.6 | 13.1 | 10.4 | 9000 | 12000 | 0.128 |
| 6910 | 50 | 72 | 12 | 0.6 | 13.4 | 11.2 | 8900 | 11000 | 0.132 |
| 6911 | 55 | 80 | 13 | 1 | 16 | 13.3 | 8200 | 9600 | 0.18 |
| 6912 | 60 | 85 | 13 | 1 | 16.4 | 14.3 | 7600 | 8900 | 0.193 |
| 6913 | 65 | 90 | 13 | 1 | 17.4 | 16.1 | 7000 | 8200 | 0.206 |
| 6914 | 70 | 100 | 16 | 1 | 23.7 | 21.2 | 6500 | 7700 | 0.334 |
| 6915 | 75 | 105 | 16 | 1 | 24.4 | 22.6 | 6100 | 7200 | 0.353 |
| 6916 | 80 | 110 | 16 | 1 | 24.9 | 24 | 5700 | 6700 | 0.373 |
| 6917 | 85 | 120 | 18 | 1.1 | 32 | 29.6 | 5400 | 6300 | 0.536 |
| 6918 | 90 | 125 | 18 | 1.1 | 33 | 31.5 | 5100 | 6000 | 0.554 |
| 6919 | 95 | 130 | 18 | 1.1 | 33.5 | 33.5 | 4800 | 5700 | 0.579 |
| 6920 | 100 | 140 | 20 | 1.1 | 41 | 39.5 | 4500 | 5300 | 0.785 |
| 6921 | 105 | 145 | 20 | 1.1 | 42.5 | 42 | 4300 | 5100 | 0.816 |
| 6922 | 110 | 150 | 20 | 1.1 | 43.5 | 44.5 | 4100 | 4800 | 0.849 |
| 6924 | 120 | 165 | 22 | 1.1 | 53 | 54 | 3800 | 4400 | 1.15 |
| 6926 | 130 | 180 | 24 | 1.5 | 65 | 67.5 | 3500 | 4100 | 1.52 |
| 6928 | 140 | 190 | 24 | 1.5 | 66.5 | 71.5 | 3200 | 3800 | 1.62 |
| 6930 | 150 | 210 | 28 | 2 | 85 | 90.5 | 3000 | 3500 | 2.47 |
| 6932 | 160 | 220 | 28 | 2 | 87 | 96 | 2800 | 3300 | 2.61 |
| 6934 | 170 | 230 | 28 | 2 | 86 | 95.5 | 2600 | 3100 | 2.74 |
| 6936 | 180 | 250 | 33 | 2 | 110 | 119 | 2400 | 2900 | 4.76 |
| 6938 | 190 | 260 | 33 | 2 | 113 | 127 | 2300 | 2700 | 4.98 |
| 6940 | 200 | 280 | 38 | 2.1 | 157 | 168 | 2200 | 2600 | 7.1 |
