R series alta sulcus pila afferentem est late usus afferentem genus. Habet proprietates simplex structuram, facile installation et humilis sustentacionem sumptus. Potest sustinere radiale onus et quidam bidirectional axial onus. In addition, r seriei altum sulcus pila gestus etiam habent characteres humilis frictio, humilis strepitu et humilis tremor et idoneam summus celeritate operationem conditionibus. Hoc genus afferentem praebet varietate structurae types, ut cum pulvis operimentum, sigillum anulum, etc, in occursum necessitatibus diversis operationem environments.
Parametri producti

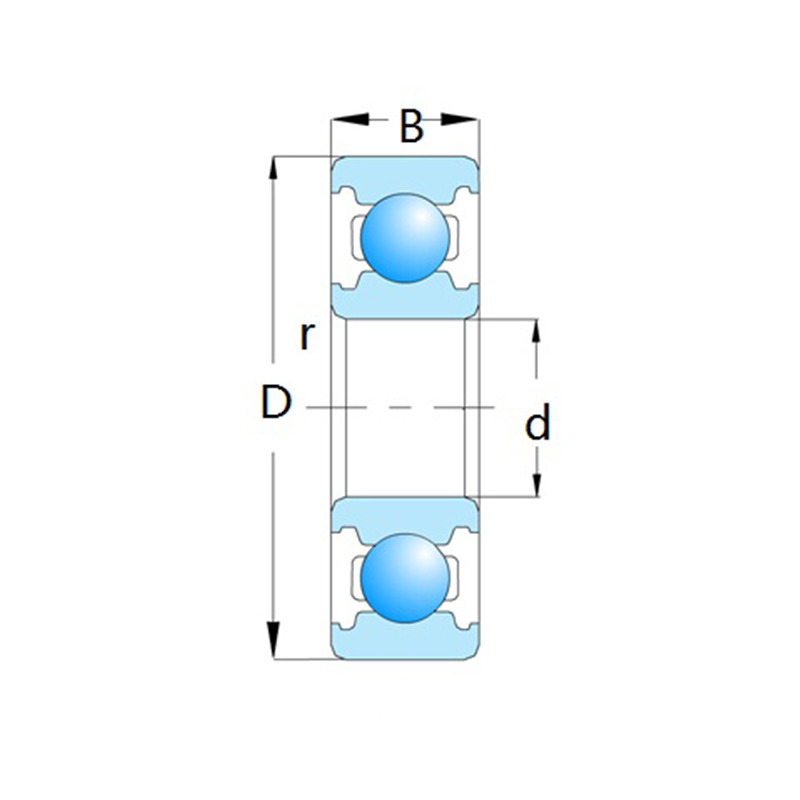

| ADFERENDA | Dimensio | Pondus | |||||||
| d | d | D | D | B | B | Rs min | Rs min | Kg | |
| in | mm | in | mm | in | mm | in | mm | ||
| R10 | 45420 | 15.875 | 36958 | 34.925 | 0.2181 | 5.54 | 0.031 | 0.8 | 37 |
| R12 | 45355 | 19.05 | 37019 | 41.275 | 0.3126 | 7.94 | 0.031 | 0.8 | 47 |
| R14 | 45481 | 22.225 | 37080 | 47.625 | 0.3752 | 9.53 | 0.031 | 0.8 | 71 |
| R16 | 1 | 25.4 | 2 | 50.8 | 0.3752 | 9.53 | 0.031 | 0.8 | 85 |
| R18 | 36899 | 28.575 | 37264 | 53.975 | 0.3752 | 9.53 | 0.031 | 0.8 | 90 |
| R20 | 36895 | 31.75 | 37260 | 57.15 | 0.3752 | 9.53 | 0.031 | 0.8 | 95 |
| R22 | 36958 | 34.925 | 37258 | 63.5 | 0.4374 | 11.11 | 0.031 | 0.8 | 106 |
| R24 | 36893 | 38.1 | 37384 | 66.675 | 0.4374 | 11.11 | 0.031 | 0.8 | 141 |
| R6 | 45359 | 9.525 | 45481 | 22.225 | 0.2189 | 5.56 | 0.016 | 0.4 | 11 |
| R8 | 45293 | 12.7 | 36899 | 28.575 | 0.25 | 6.35 | 0.016 | 0.4 | 18 |
