Series 3000A-2RS duplex ordo contactus pilae angularis gestationes altae sunt gestus perficiendi destinati ad onera simultanea radialia et axialis sustinenda. Unicum suum duplicatum consilium praebet altiorem oneris capacitatem ac stabilitatem, et ad usum in altum onere ac celeritate applicationum apta est. Haec series gestuum praecipui materiae qualitas efficiuntur et repugnant et corrosioni resistunt ut diuturnum tempus et certa operatio conservetur. Contactus angulus interioris et exterioris circuli portationis praecise destinatur ad onus distribuendum efficaciter, ita ut vita servitutis extenditur. Praeterea, consilium signaculum 2RS efficaciter impedit contaminantes ne intret intus ad sustinendum et minuendum frequentiam sustentandam. Hoc genus gerendi late in autocinetis industria, machina instrumentorum, ventorum generationum aliisque instrumentis mechanicis adhibitis. Praeclaram habet observantiam ac stabilitatem ac variarum condiciones laborantium necessitates occurrere potest
Parametri producti

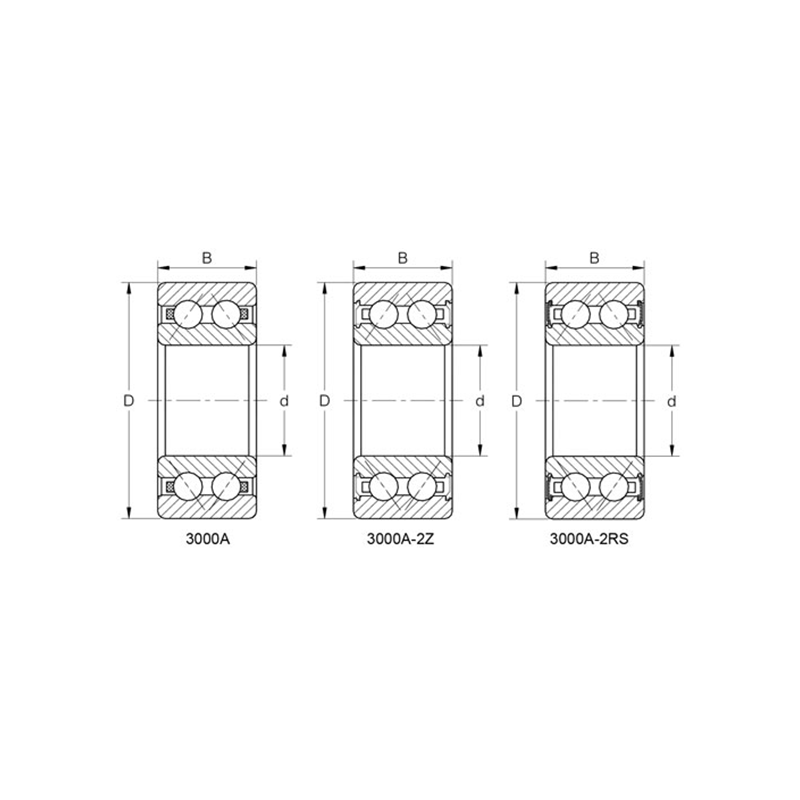

| Designatio | Dimensiones principales (mm) | Basic Load Ratings (KN) | Mobilitate limitata (rpm) | Pondus | ||||
| d | D | B | Dynamic(Cr) | Static(Cor) | Grease | Oleum | (kg) | |
| 3000A-2RS | 10 | 26 | 12 | 5.5 | 3.2 | 18000 | - | 0.022 |
| 3200A-2RS | 10 | 30 | 14.3 | 7.5 | 4.3 | 16000 | - | 0.05 |
| 3001A-2RS | 12 | 28 | 12 | 6.1 | 3.7 | 17000 | - | 0.025 |
| 3201A-2RS | 12 | 32 | 15.9 | 9 | 4.9 | 14000 | - | 0.058 |
| 3002A-2RS | 15 | 32 | 13 | 8.5 | 5.4 | 14500 | - | 0.036 |
| 3202A-2RS | 15 | 35 | 15.9 | 10 | 6 | 11000 | - | 0.066 |
| 3302A-2RS | 15 | 42 | 19 | 14 | 8 | 10000 | - | 0.13 |
| 3003A-2RS | 17 | 35 | 14 | 9 | 6 | 12500 | - | 0.042 |
| 3203A-2RS | 17 | 40 | 17.5 | 12.7 | 7.8 | 9000 | - | 0.096 |
| 3303A-2RS | 17 | 47 | 22.2 | 17.3 | 10.4 | 8000 | - | 0.18 |
| 3804A-2RS | 20 | 32 | 10 | 4.9 | 3.9 | 13000 | - | 0.02 |
| 3904A-2RS | 20 | 37 | 13 | 9.3 | 6.6 | 12000 | - | 0.046 |
| 3004A-2RS | 20 | 42 | 16 | 14.2 | 9.6 | 11000 | - | 0.08 |
| 3204A-2RS | 20 | 47 | 20.6 | 19 | 12.1 | 8000 | - | 0.16 |
| 3304A-2RS | 20 | 52 | 22.2 | 19 | 12.3 | 8500 | - | 0.22 |
| 3805A-2RS | 25 | 37 | 10 | 5.5 | 4.9 | 11500 | - | 0.025 |
| 3905A-2RS | 25 | 42 | 13 | 9.6 | 7.5 | 11000 | - | 0.062 |
| 3005A-2RS | 25 | 47 | 16 | 15.2 | 11 | 9500 | - | 0.1 |
| 3205A-2RS | 25 | 52 | 20.6 | 20.6 | 13.9 | 7500 | - | 0.19 |
| 3305A-2RS | 25 | 62 | 25.4 | 27.6 | 17.8 | 7500 | - | 0.367 |
| 3806A-2RS | 30 | 42 | 10 | 5.7 | 5.6 | 10000 | - | 0.03 |
| 3906A-2RS | 30 | 47 | 13 | 9.9 | 8.3 | 9500 | - | 0.095 |
| 3006A-2RS | 30 | 55 | 19 | 20.3 | 15.5 | 8000 | - | 0.16 |
| 3206A-2RS | 30 | 62 | 23.8 | 25.7 | 18.5 | 6300 | - | 0.31 |
| 3306A-2RS | 30 | 72 | 30.2 | 37.2 | 25.9 | 6000 | - | 0.59 |
| 3807A-2RS | 35 | 47 | 10 | 6.1 | 6.2 | 8500 | - | 0.035 |
| 3907A-2RS | 35 | 55 | 15 | 12.9 | 11.3 | 8000 | - | 0.138 |
| 3007A-2RS | 35 | 62 | 20 | 24.2 | 20.4 | 6500 | - | 0.24 |
| 3207A-2RS | 35 | 72 | 27 | 30.4 | 23.5 | 5600 | - | 0.51 |
| 3307A-2RS | 35 | 80 | 34.9 | 46.1 | 35.3 | 5300 | - | 0.82 |
| 3808A-2RS | 40 | 52 | 10 | 6.4 | 6.9 | 7000 | - | 0.04 |
| 3908A-2RS | 40 | 62 | 16 | 17.4 | 15.8 | 6500 | - | 0.158 |
| 3008A-2RS | 40 | 68 | 21 | 24.5 | 20.8 | 6000 | - | 0.279 |
| 3208A-2RS | 40 | 80 | 30.2 | 40.8 | 30.2 | 5300 | - | 0.64 |
| 3308A-2RS | 40 | 90 | 36.5 | 54.9 | 40.1 | 4800 | - | 1.06 |
| 3809A-2RS | 45 | 58 | 10 | 6.7 | 7.7 | 6300 | - | 0.055 |
| 3909A-2RS | 45 | 68 | 16 | 17.9 | 17.2 | 6000 | - | 0.183 |
| 3009A-2RS | 45 | 75 | 23 | 39.3 | 36.4 | 5600 | - | 0.364 |
| 3209A-2RS | 45 | 85 | 30.2 | 42.8 | 34.5 | 4800 | - | 0.72 |
| 3309A-2RS | 45 | 100 | 39.7 | 72.1 | 52 | 4300 | - | 1.24 |
| 3810A-2RS | 50 | 65 | 12 | 7 | 8.4 | 6000 | - | 0.075 |
| 3910A-2RS | 50 | 72 | 16 | 19.1 | 19.6 | 5800 | - | 0.189 |
| 3010A-2RS | 50 | 80 | 23 | 42.3 | 41.9 | 5300 | - | 0.395 |
| 3210A-2RS | 50 | 90 | 30.2 | 43.2 | 35.3 | 4500 | - | 0.78 |
| 3310A-2RS | 50 | 110 | 44.4 | 84.9 | 62.6 | 4000 | - | 1.96 |
| 3811A-2RS | 55 | 72 | 13 | 12.8 | 14.4 | 5500 | - | 0.01 |
| 3911A-2RS | 55 | 80 | 19 | 20 | 21.7 | 5300 | - | 0.282 |
| 3011A-2RS | 55 | 90 | 26 | 43.7 | 44.7 | 4800 | - | 0.581 |
| 3211A-2RS | 55 | 100 | 33.3 | 53.9 | 47.2 | 4000 | - | 1.03 |
| 3311A-2RS | 55 | 120 | 49.2 | 106.3 | 82 | 3600 | - | 2.4 |
| 3812A-2RS | 60 | 78 | 14 | 13.6 | 16.2 | 5000 | - | 0.14 |
| 3912A-2RS | 60 | 85 | 19 | 21 | 23.8 | 4800 | - | 0.303 |
| 3012A-2RS | 60 | 95 | 26 | 47.2 | 53.4 | 4400 | - | 0.621 |
| 3212A-2RS | 60 | 110 | 36.5 | 61.3 | 52.6 | 3800 | - | 1.4 |
| 3312A-2RS | 60 | 130 | 54 | 121.4 | 95.1 | 3400 | - | 3.24 |
| 3813A-2RS | 65 | 85 | 15 | 15.1 | 18.3 | 4700 | - | 0.182 |
| 3913A-2RS | 65 | 90 | 19 | 21.4 | 24.8 | 4500 | - | 0.324 |
| 3013A-2RS | 65 | 100 | 26 | 49.5 | 59.2 | 4000 | - | 0.661 |
| 3213A-2RS | 65 | 120 | 38.1 | 73.4 | 66.6 | 3400 | - | 1.84 |
| 3313A-2RS | 65 | 140 | 58.7 | 137.5 | 109.6 | 2800 | - | 3.9 |
| 3814A-2RS | 70 | 90 | 15 | 18 | 21.9 | 4400 | - | 0.19 |
| 3914A-2RS | 70 | 100 | 23 | 25.8 | 30 | 4000 | - | 0.516 |
| 3014A-2RS | 70 | 110 | 30 | 54.2 | 58.9 | 3600 | - | 0.95 |
| 3214A-2RS | 70 | 125 | 39.7 | 80.5 | 73.8 | 3200 | - | 1.98 |
| 3314A-2RS | 70 | 150 | 63.5 | 154.5 | 125.1 | 2800 | - | 4.7 |
| 3815A-2RS | 75 | 95 | 15 | 16 | 20.3 | 4200 | - | 0.224 |
| 3915A-2RS | 75 | 105 | 23 | 26 | 31.3 | 3800 | - | 0.546 |
| 3015A-2RS | 75 | 115 | 30 | 57.7 | 66.5 | 3400 | - | 1.003 |
| 3215A-2RS | 75 | 130 | 41.3 | 87.9 | 81.4 | 3000 | - | 2.01 |
| 3315A-2RS | 75 | 160 | 68.3 | 171.4 | 134.8 | 2600 | - | 6.3 |
| 3216A-2RS | 80 | 140 | 44.4 | 103.7 | 97.5 | 2800 | - | 2.48 |
| 3316A-2RS | 80 | 170 | 68.3 | 190.1 | 151.7 | 2400 | - | 7.21 |
| 3217A-2RS | 85 | 150 | 49.2 | 111.8 | 106.4 | 2400 | - | 3.2 |
| 3317A-2RS | 85 | 180 | 73 | 189.4 | 234.5 | 2200 | - | 8.3 |
| 3218A-2RS | 90 | 160 | 52.4 | 111.8 | 106.4 | 2400 | - | 4.5 |
