Ad Usum 3000a-2Z Series Geminus row angularis contactus pila gestus Fabricator, Officina

3000a-2Z Series

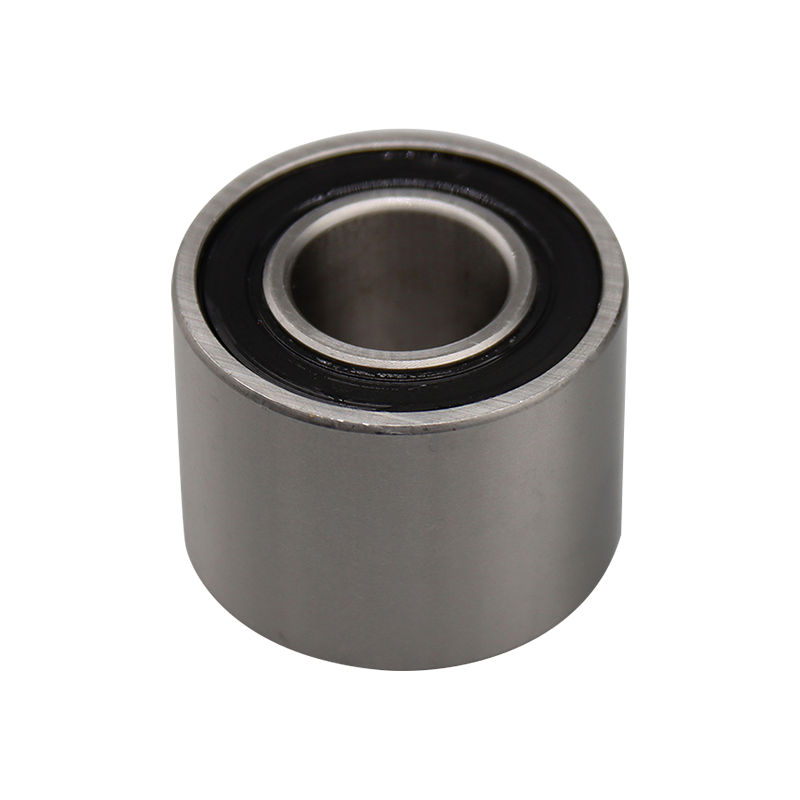

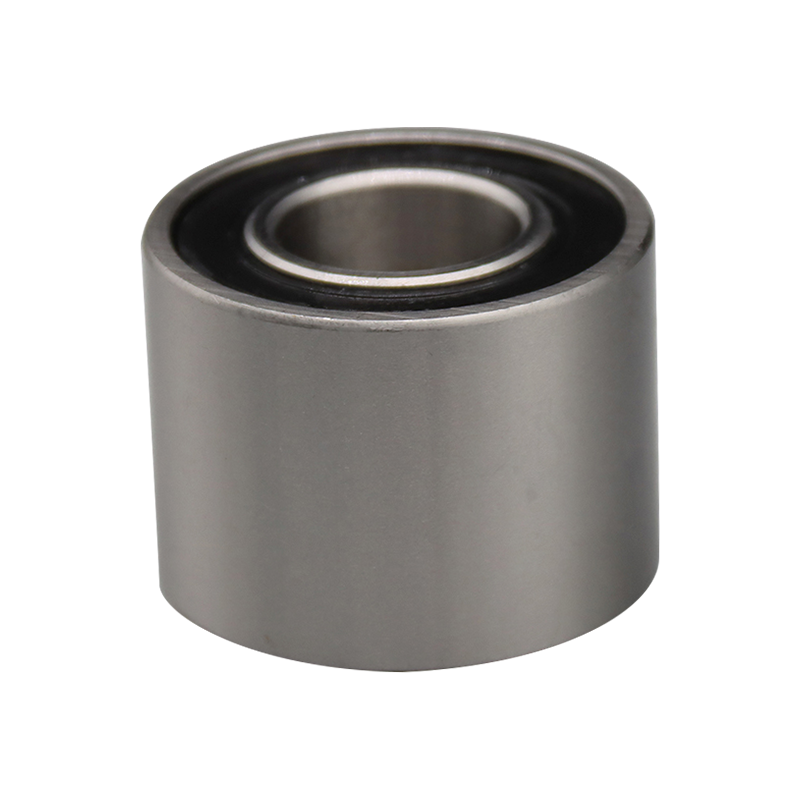

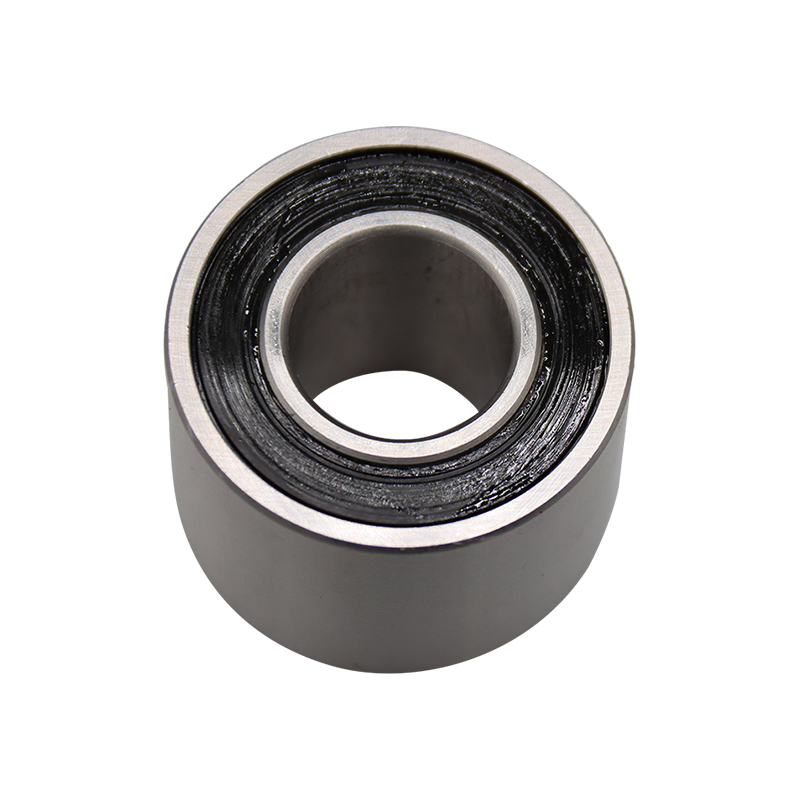

3000a-2z series duplex row angularis contactus pila afferentem est summus perficientur late in electromechanical apparatu, automobiles et industriae machinery. Hoc series gestus habet duplex-row consilio, potest sustinere altiorem axial et radiales onerat, et idoneam usum sub summus celeritas operationem et gravibus onus conditionibus. Atrum contactus structuram dat afferentem ad efficaciter disperse accentus, redigendum friction et amplio diuturnitatem cum ferre onus. 3000a-2z series beati quoque instructa pulvis tegit (2z), quae ne lutum et impudicitiis ab intrantes intus in exserta et extend ad vitam intus. Praeterea, haec afferentem habet optimum perficientur secundum accurate et rigiditatem, faciens idoneam ad altus-praecisione applications.

Mitte inquisitionem

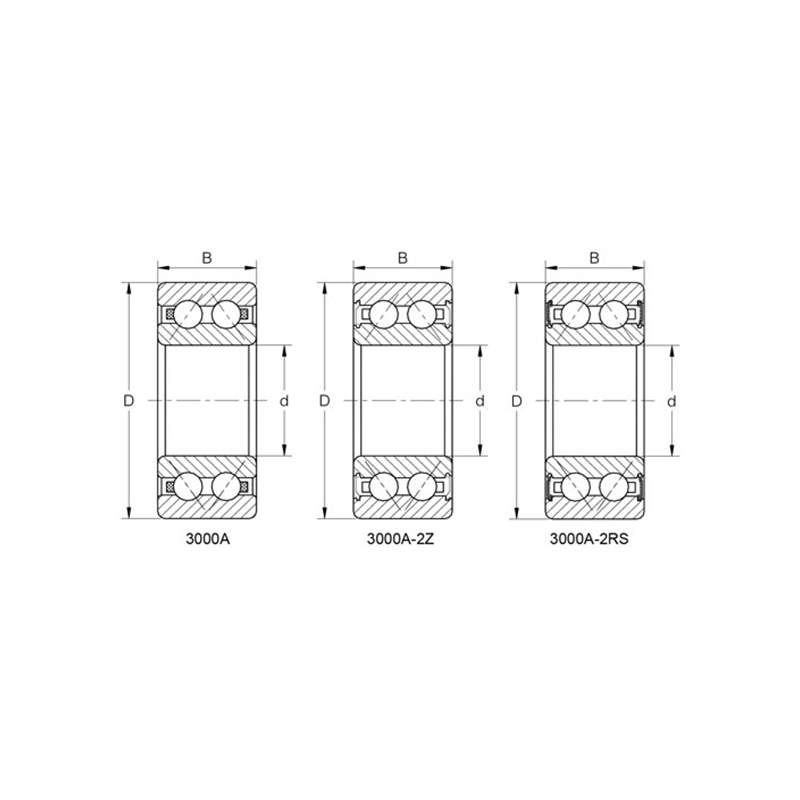

Designatio	Principalem dimensiones (mm)			Basic onus ratings (K)		LiMND Celeritati (RPM)		Pondus
Designatio	d	D	B	Dynamic (CR)	Static (Cor)	Uncto	Oleum	(KG)
3000a- 2Z	10	26	12	5.5	3.2	18000	-	0.022
3200A-2Z	10	30	14.3	7.5	4.3	16000	-	0.05
3001a-2Z	12	28	12	6.1	3.7	17000	-	0.025
3201a-2Z	12	32	15.9	9	4.9	14000	-	0.058
3002A-2Z	15	32	13	8.5	5.4	14500	-	0.036
3202a-2Z	15	35	15.9	10	6	11000	-	0.066
3302A-2Z	15	42	19	14	8	10000	-	0.13
3003a-2Z	17	35	14	9	6	12500	-	0.042
3203a-2Z	17	40	17.5	12.7	7.8	9000	-	0.096
3303a-2Z	17	47	22.2	17.3	10.4	8000	-	0.18
3804A-2Z	20	32	10	4.9	3.9	13000	-	0.02
, 3904a, 2Z	20	37	13	9.3	6.6	12000	-	0.046
3004a-2Z	20	42	16	14.2	9.6	11000	-	0.08
3204A-2Z	20	47	20.6	19	12.1	8000	-	0.16
3304A-2Z	20	52	22.2	19	12.3	8500	-	0.22
3805a-2Z	25	37	10	5.5	4.9	11500	-	0.025
3905a, 2Z	25	42	13	9.6	7.5	11000	-	0.062
3005a-2Z	25	47	16	15.2	11	9500	-	0.1
3205a-2Z	25	52	20.6	20.6	13.9	7500	-	0.19
3305a-2Z	25	62	25.4	27.6	17.8	7500	-	0.367
3806A-2Z	30	42	10	5.7	5.6	10000	-	0.03
, 3906a, 2Z	30	47	13	9.9	8.3	9500	-	0.095
3006a-2Z	30	55	19	20.3	15.5	8000	-	0.16
3206a-2Z	30	62	23.8	25.7	18.5	6300	-	0.31
3306A-2Z	30	72	30.2	37.2	25.9	6000	-	0.59
3807A-2Z	35	47	10	6.1	6.2	8500	-	0.035
, 3907a-2Z	35	55	15	12.9	11.3	8000	-	0.138
3007a-2Z	35	62	20	24.2	20.4	6500	-	0.24
3207A-2Z	35	72	27	30.4	23.5	5600	-	0.51
3307a-2Z	35	80	34.9	46.1	35.3	5300	-	0.82
3808A-2Z	40	52	10	6.4	6.9	7000	-	0.04
, 3908a, 2Z	40	62	16	17.4	15.8	6500	-	0.158
3008A-2Z	40	68	21	24.5	20.8	6000	-	0.279
3208A-2Z	40	80	30.2	40.8	30.2	5300	-	0.64
3308A-2Z	40	90	36.5	54.9	40.1	4800	-	1.06
3809A-2Z	45	58	10	6.7	7.7	6300	-	0.055
, 3909A-2Z	45	68	16	17.9	17.2	6000	-	0.183
3009A-2Z	45	75	23	39.3	36.4	5600	-	0.364
3209A-2Z	45	85	30.2	42.8	34.5	4800	-	0.72
3309A-2Z	45	100	39.7	72.1	52	4300	-	1.24
3810a-2Z	50	65	12	7	8.4	6000	-	0.075
3910a-2Z	50	72	16	19.1	19.6	5800	-	0.189
3010A-2Z	50	80	23	42.3	41.9	5300	-	0.395
3210a-2Z	50	90	30.2	43.2	35.3	4500	-	0.78
3310a-2Z	50	110	44.4	84.9	62.6	4000	-	1.96
3811A-2Z	55	72	13	12.8	14.4	5500	-	0.01
3911A-2Z	55	80	19	20	21.7	5300	-	0.282
3011A-2Z	55	90	26	43.7	44.7	4800	-	0.581
3211A-2Z	55	100	33.3	53.9	47.2	4000	-	1.03
3311A-2Z	55	120	49.2	106.3	82	3600	-	2.4
3812A-2Z	60	78	14	13.6	16.2	5000	-	0.14
3912A-2Z	60	85	19	21	23.8	4800	-	0.303
3012A-2Z	60	95	26	47.2	53.4	4400	-	0.621
3212a-2Z	60	110	36.5	61.3	52.6	3800	-	1.4
3312A-2Z	60	130	54	121.4	95.1	3400	-	3.24
3813a-2Z	65	85	15	15.1	18.3	4700	-	0.182
3913a-2Z	65	90	19	21.4	24.8	4500	-	0.324
3013a-2Z	65	100	26	49.5	59.2	4000	-	0.661
3213a-2Z	65	120	38.1	73.4	66.6	3400	-	1.84
3313a-2Z	65	140	58.7	137.5	109.6	2800	-	3.9
3814A-2Z	70	90	15	18	21.9	4400	-	0.19
3914A-2Z	70	100	23	25.8	30	4000	-	0.516
3014A-2Z	70	110	30	54.2	58.9	3600	-	0.95
3214A-2Z	70	125	39.7	80.5	73.8	3200	-	1.98
3314A-2Z	70	150	63.5	154.5	125.1	2800	-	4.7
3815a-2Z	75	95	15	16	20.3	4200	-	0.224
3915a-2Z	75	105	23	26	31.3	3800	-	0.546
3015a-2Z	75	115	30	57.7	66.5	3400	-	1.003
3215a-2Z	75	130	41.3	87.9	81.4	3000	-	2.01
3315a-2Z	75	160	68.3	171.4	134.8	2600	-	6.3
3216a-2z	80	140	44.4	103.7	97.5	2800	-	2.48
3316a-2z	80	170	68.3	190.1	151.7	2400	-	7.21
3217a-2Z	85	150	49.2	111.8	106.4	2400	-	3.2
3317a-2Z	85	180	73	189.4	234.5	2200	-	8.3
3218a-2Z	90	160	52.4	111.8	106.4	2400	-	4.5

3000a-2Z Series
