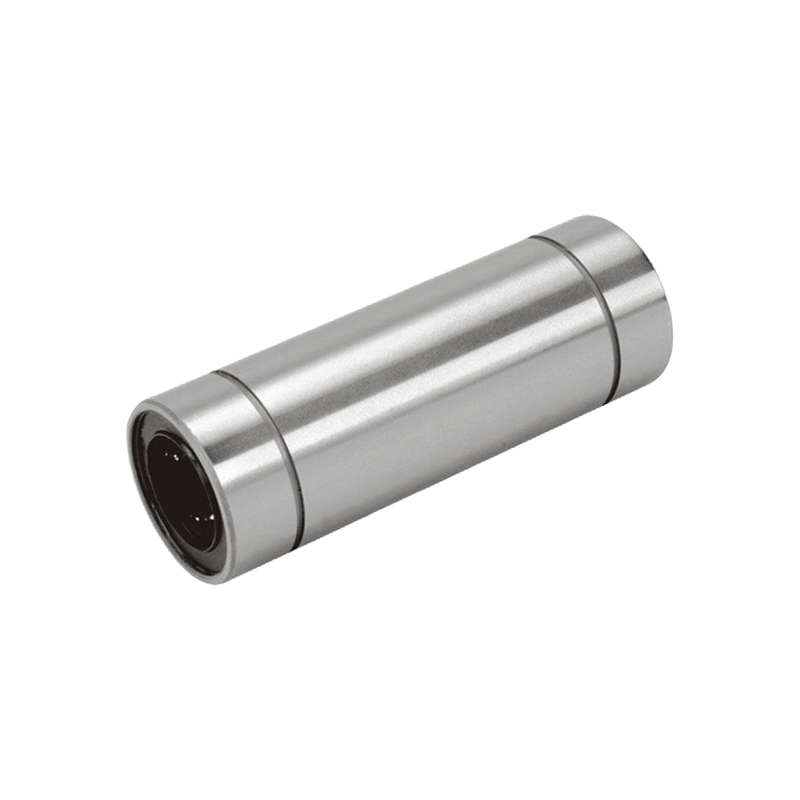

Et lme..Luu series duplex-lata linearibus pila afferentem est summus perficientur linearibus motus component disposito ad sustinere gravibus onera et alta celeritates. Haec series products adoptat duplex, latitudine structuram, providing maius onus-afferentem facultatem et altiorem stabilitatem, et idoneam usum in dura environments. Lme..Luu gestus continent summus praecisione sphaeris intus, cursus lenis motus et humilis friction coefficientes, ita improving efficientiam et vitam mechanica apparatu. Hoc genus afferentem est facile ut install et requirit humilis sustentationem, et late in automation apparatu, robots, cnc machina instrumenta et alia praecisione machinery. Per suum superiorem consilio, lme..Luu series efficaciter reduces hiatus inter movens partes et amplio altiore motus accurate et reliability. Est necessaria key component in modern industria.
Parametri producti
| Numerus | Nominal Palestrina Diameter | dr | Maior dimensiones et tolerantia | Eccentricity | Basic Lond Rating (K) | Pondus (kg) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lme ... Luu | Globus circuitu | mm | mm | Tolerantia | D mm | Tolerantia (μm) | L mm | Tolerantia (μm) | B mm | Tolerantia (μm) | W (mm) | D1 (mm) | Dynamic | Stabilis | ||
| Lme8luu | 4 | 8 | 8 | -9 | 16 | 0 / -9 | 46 | 0 / -300 | 33 | 0 / -300 | 1.1 | 15.2 | 15 | 421 | 804 | 40 |
| Lme12luu | 4 | 12 | 12 | -9 | 22 | 0 / -11 | 61 | 0 / -300 | 45.8 | 0 / -300 | 1.3 | 21 | 15 | 813 | 1570 | 80 |
| Lme16luu | 5 | 16 | 16 | -11 | 26 | 0 / -11 | 68 | 0 / -300 | 49.8 | 0 / -300 | 1.3 | 24.9 | 15 | 921 | 1780 | 115 |
| Lme20luu | 5 | 20 | 20 | -11 | 32 | 0 / -13 | 80 | 0 / -300 | 61 | 0 / -300 | 1.6 | 30.5 | 17 | 1370 | 2740 | 180 |
| Lme25luu | 6 | 25 | 25 | -6.5 | 40 | 0 / -13 | 112 | 0 / -400 | 82 | 0 / -400 | 1.85 | 38 | 17 | 1570 | 3140 | 430 |
| Lme30luu | 6 | 30 | 30 | -6.5 | 47 | 0 / -13 | 123 | 0 / -400 | 104.2 | 0 / -400 | 1.85 | 44.5 | 17 | 2500 | 5490 | 615 |
| Lme40luu | 6 | 40 | 40 | -4 | 62 | 0 / -15 | 151 | 0 / -400 | 121.2 | 0 / -400 | 2.15 | 59 | 20 | 3430 | 840 | 1400 |
| Lme50luu | 6 | 50 | 50 | -4 | 75 | 0 / -15 | 192 | 0 / -400 | 155.2 | 0 / -400 | 2.65 | 72 | 20 | 680 | 15900 | 2320 |
| Lme60luu | 6 | 60 | 60 | -4 | 90 | 0 / -20 | 209 | 0 / -400 | 170 | 0 / -400 | 3.15 | 86.5 | 25 | 7550 | 200 | 3920 |
