NA series inserta gestus sunt volventes gustings disposito simpliciorem installation et sustentationem. Solent ex interiore anulum, anulum et volvens elementa. Interiorem anulum potest installed directe in hastili dum exterior circulum plerumque fixum in armamentis et bracket. NA series gestus habere bonum gerunt resistentia et onus-afferentem facultatem et late in industriae apparatu, agriculturae machinery, potentia instrumenta et aliis agris. In consilio concedit operatio cum quadam gradu axis offset et angulus mutationes, faciens eos valde adaptabile. Hoc series et gestus et offert varietate signantes et dridproofing options ut amplio eorum perficientur in dura ambitus. In characteres in na series insertiones et eos efficiens et reliable arbitrium ad occursum a varietate application necessitates et redigendum apparatu sustentacionem costs.
Parametri producti

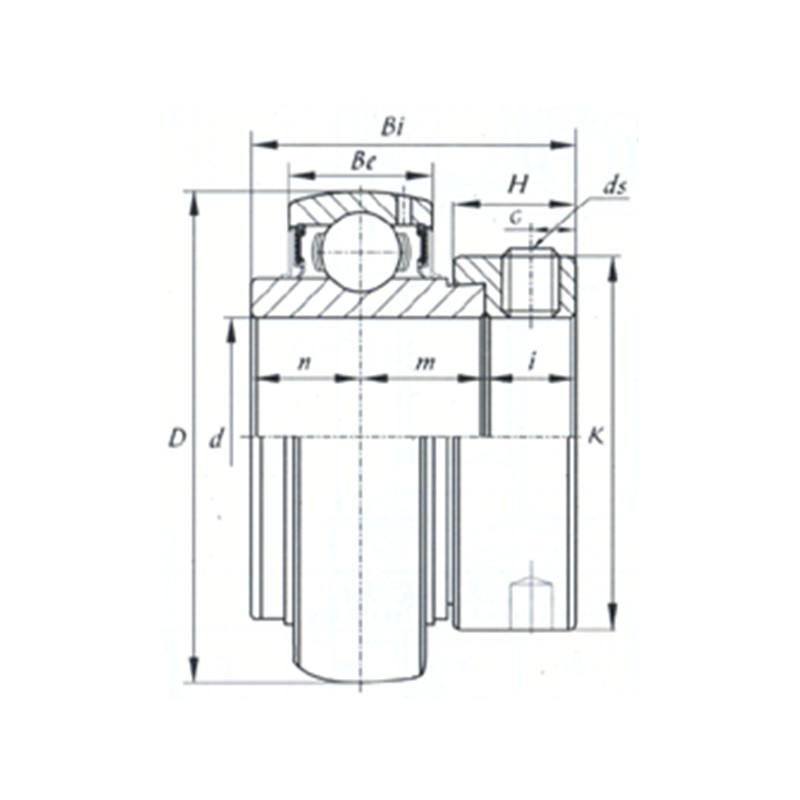

| NOTA | d | Dimensiones (M) | Basic Lond Rating (K) | ||||||||||
| (mm) | (In.) | D | Ineo | Bi | B1 | n | K | H | G | ds | Dynamic | Stabilis | |
| Na203 | 17 | 40 | 14 | 37.3 | 27.8 | 13.9 | 28.6 | 13.5 | 5 | M6x1 | 900 | 500 | |
| Na203-11 | 17.463 | 11/16 | 40 | 14 | 37.3 | 27.8 | 13.9 | 28.6 | 13.5 | 5 | I / 4-28unf | 900 | 500 |
| Na204-12 | 19.05 | 3/4 | 47 | 17 | 43.7 | 34.2 | 17.1 | 33.3 | 13.5 | 5 | I / 4-28unf | 1250 | 650 |
| Na204 | 20 | 47 | 17 | 43.7 | 34.2 | 17.1 | 33.3 | 13.5 | 5 | M6x1 | 1250 | 650 | |
| Na205-14 | 22.225 | 7/8 | 52 | 17 | 44.4 | 35 | 17.5 | 38.1 | 13.5 | 5 | I / 4-28unf | 1400 | 750 |
| Na205-15 | 23.813 | 15/16 | 52 | 17 | 44.4 | 35 | 17.5 | 38.1 | 13.5 | 5 | I / 4-28unf | 1400 | 750 |
| Na205 | 25 | 52 | 17 | 44.4 | 35 | 17.5 | 38.1 | 13.5 | 5 | M6x1 | 1400 | 750 | |
| NA205-16 | 25.4 | 1 | 52 | 17 | 44.4 | 35 | 17.5 | 38.1 | 13.5 | 5 | I / 4-28unf | 1400 | 750 |
| Na206-18 | 28.575 | 11/8 | 62 | 19 | 48.4 | 36.6 | 18.3 | 44.5 | 15.9 | 6 | V / 16-24unf | 1900 | 1100 |
| Na206 | 30 | 62 | 19 | 48.4 | 36.6 | 18.3 | 44.5 | 15.9 | 6 | M8x1 | 1900 | 1100 | |
| Na206-19 | 30.163 | 13/16 | 62 | 19 | 48.4 | 36.6 | 18.3 | 44.5 | 15.9 | 6 | V / 16-24unf | 1900 | 1100 |
| Na206-20 | 31.75 | 11/4 | 62 | 19 | 48.4 | 36.6 | 18.3 | 44.5 | 15.9 | 6 | V / 16-24unf | 1900 | 1100 |
| Na207-20 | 31.75 | 11/4 | 72 | 20 | 51.1 | 37.6 | 18.8 | 55.6 | 17.5 | 6.5 | V / 16-24unf | 2550 | 1500 |
| Na207-22 | 34.925 | 13/8 | 72 | 20 | 51.1 | 37.6 | 18.8 | 55.6 | 17.5 | 6.5 | V / 16-24unf | 2550 | 1500 |
| Na207 | 35 | 72 | 20 | 51.1 | 37.6 | 18.8 | 55.6 | 17.5 | 6.5 | M8x1 | 2550 | 1500 | |
| Na207-23 | 36.513 | 17/6 | 72 | 20 | 51.1 | 37.6 | 18.8 | 55.6 | 17.5 | 6.5 | V / 16-24unf | 2550 | 1500 |
| Na208-24 | 38.1 | 11/2 | 80 | 21 | 56.3 | 42.8 | 21.4 | 60.3 | 18.3 | 6.5 | V / 16-24unf | 2950 | 1800 |
| Na208-25 | 39.688 | 19/16 | 80 | 21 | 56.3 | 42.8 | 21.4 | 60.3 | 18.3 | 6.5 | V / 16-24unf | 2950 | 1800 |
| Na208 | 40 | 80 | 21 | 56.3 | 42.8 | 21.4 | 60.3 | 18.3 | 6.5 | M8x1 | 2950 | 1800 | |
| Na209-26 | 41.275 | 15/8 | 85 | 22 | 56.3 | 42.8 | 21.4 | 63.5 | 18.3 | 6.5 | V / 16-24unf | 3180 | 2050 |
| Na209-27 | 42.863 | I 11/16 | 85 | 22 | 56.3 | 42.8 | 21.4 | 63.5 | 18.3 | 6.5 | V / 16-24unf | 3180 | 2050 |
| Na209-28 | 44.45 | 13/4 | 85 | 22 | 56.3 | 42.8 | 21.4 | 63.5 | 18.3 | 6.5 | V / 16-24unf | 3180 | 2050 |
| Na209 | 45 | 85 | 22 | 56.3 | 42.8 | 21.4 | 63.5 | 18.3 | 6.5 | M8x1 | 3180 | 2050 | |
| Na210-31 | 49.213 | I 15/16 | 90 | 24 | 62.7 | 49.2 | 24.6 | 69.9 | 18.3 | 6.5 | V / 16-24unf | 3500 | 2300 |
| NA210 | 50 | 90 | 24 | 62.7 | 49.2 | 24.6 | 69.9 | 18.3 | 6.5 | M8x1 | 3500 | 2300 | |
| Na210-32 | 50.8 | 2 | 90 | 24 | 62.7 | 49.2 | 24.6 | 69.9 | 18.3 | 6.5 | V / 16-24unf | 3500 | 2300 |
| Na211-32 | 50.8 | 2 | 100 | 25 | 71.4 | 55.6 | 27.8 | 76.2 | 20.7 | 8 | III / 8-24unf | 4350 | 2900 |
| Na211 | 55 | 100 | 25 | 71.4 | 55.6 | 27.8 | 76.2 | 20.7 | 8 | M10x1.25 | 4350 | 2900 | |
| Na211-35 | 55.563 | 23/16 | 100 | 25 | 71.4 | 55.6 | 27.8 | 76.2 | 20.7 | 8 | III / 8-24unf | 4350 | 2900 |
| Na212-36 | 57.15 | 21/4 | 110 | 27 | 77.8 | 62 | 31 | 84.2 | 22.3 | 8 | III / 8-24unf | 4750 | 3250 |
| NA212 | 60 | 110 | 27 | 77.8 | 62 | 31 | 84.2 | 22.3 | 8 | M10x1.25 | 4750 | 3250 | |
| Na212-39 | 61.913 | 27/16 | 110 | 27 | 77.8 | 62 | 31 | 84.2 | 22.3 | 8 | III / 8-24unf | 4750 | 3250 |
| Na213-40 | 63.5 | 21/2 | 120 | 28 | 85.7 | 68.6 | 34.1 | 86 | 23.5 | 8.5 | III / 8-24unf | 5700 | 4000 |
| Na213 | 65 | 120 | 28 | 85.7 | 68.6 | 34.1 | 86 | 23.5 | 8.5 | M10x1.25 | 5700 | 4000 | |
| Na215-47 | 74.613 | 215/16 | 130 | 30 | 92.1 | 75 | 37.3 | 102 | 23.5 | 8.5 | III / 8-24unf | 6600 | 4950 |
| NA215 | 75 | 130 | 30 | 92.1 | 75 | 37.3 | 102 | 23.5 | 8.5 | M10x1.25 | 6600 | 4950 | |
| Na215-48 | 76.2 | 3 | 130 | 30 | 92.1 | 75 | 37.3 | 102 | 23.5 | 8.5 | III / 8-24unf | 6600 | 4950 |
