SA series inserere gestus sunt altus-perficientur volvens lectus qui late in variis mechanica apparatibus. Consilio huius afferentem concedit ut ascendetur directe in auxilium structura, simplifying installation processus et meliorem opus efficientiam. SA series gestus habere optimum onus-portantes facultatem et gerunt resistentia, et potest operari stabiliter sub altum onus et princeps celeritate conditionibus. In matching praecisione inter interiorem circulum et exteriores anulus est altum, quod efficaciter reduces frictio et calor et auget ministerium vitae. In addition, ad signationem consilio a series gestus possit efficaciter ne intrusionem lutum et humorem et aptet ad dura operantes environments. Ob eorum optimum perficientur, SA series inserta gestus late usus est in agriculturae machinatione, importans apparatu, vento potentia generationem et alia industriae agri.
Parametri producti

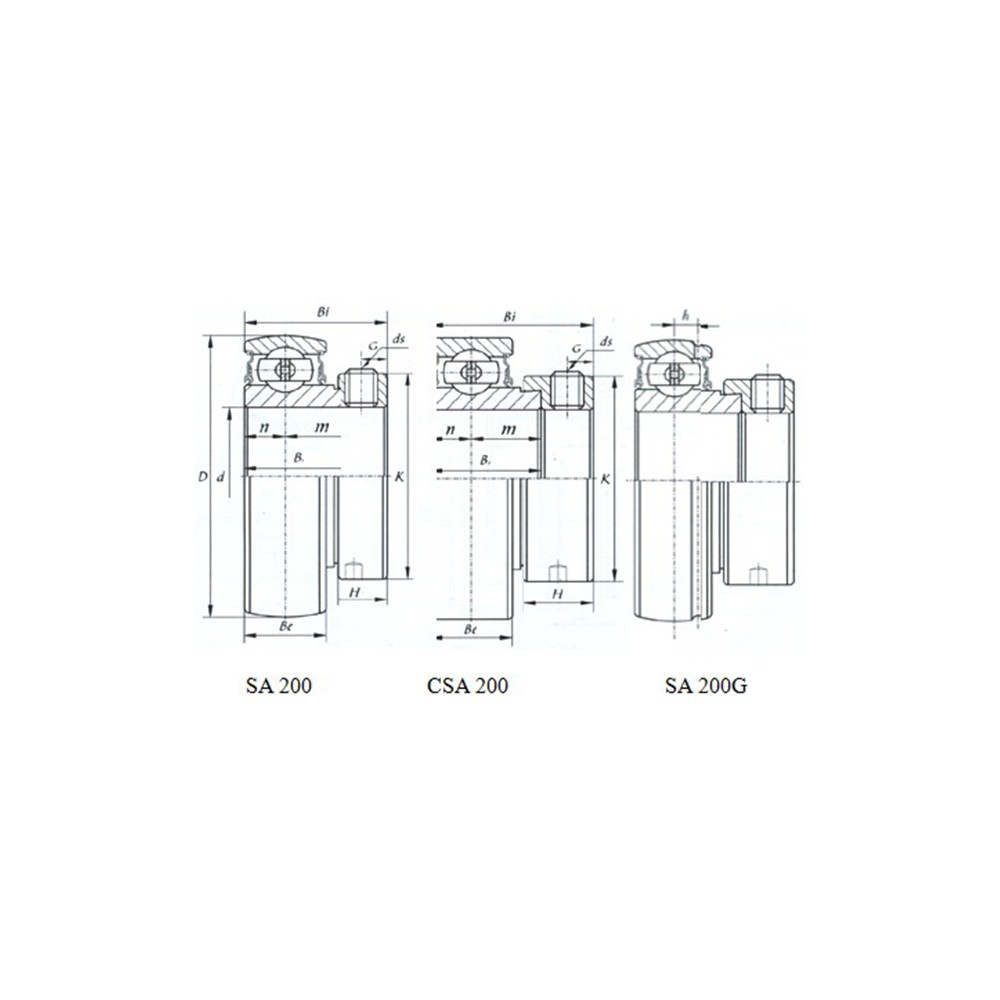

| NOTA | d | Dimensiones (M) | |||||||||
| (mm) | (In.) | D | Bi | Ineo | B1 | n | K | H | G | ds | |
| Sa201 | 12 | 40 | 28.6 | 12 | 19.1 | 6.5 | 28.6 | 13.5 | 5 | M6x1 | |
| Sa201-8 | 12.7 | 1/2 | 40 | 28.6 | 12 | 19.1 | 6.5 | 28.6 | 13.5 | 5 | I / 4-28unf |
| Sa202 | 15 | 40 | 28.6 | 12 | 19.1 | 6.5 | 28.6 | 13.5 | 5 | M6x1 | |
| Sa202-10 | 15.875 | 5/8 | 40 | 28.6 | 12 | 19.1 | 6.5 | 28.6 | 13.5 | 5 | I / 4-28unf |
| Sa203 | 17 | 40 | 28.6 | 12 | 19.1 | 6.5 | 28.6 | 13.5 | 5 | M6x1 | |
| Sa203-11 | 17.462 | 11/16 | 40 | 28.6 | 12 | 19.1 | 6.5 | 28.6 | 13.5 | 5 | I / 4-28unf |
| Sa204-12 | 19.05 | 3/4 | 47 | 31 | 14 | 21.5 | 7.5 | 33.3 | 13.5 | 5 | I / 4-28unf |
| Sa204 | 20 | 47 | 31 | 14 | 21.5 | 7.5 | 33.3 | 13.5 | 5 | M6x1 | |
| Sa205-14 | 22.225 | 7/8 | 52 | 31 | 15 | 21.5 | 7.5 | 38.1 | 13.5 | 5 | I / 4-28unf |
| Sa205 | 25 | 52 | 31 | 15 | 21.5 | 7.5 | 38.1 | 13.5 | 5 | M6x1 | |
| Sa205-16 | 25.4 | 1 | 52 | 31 | 15 | 21.5 | 7.5 | 38.1 | 13.5 | 5 | I / 4-28unf |
| Sa206-18 | 28.575 | 11/8 | 62 | 35.7 | 16 | 23.8 | 9 | 44.5 | 15.9 | 6 | V / 16-24unf |
| Sa206 | 30 | 62 | 35.7 | 16 | 23.8 | 9 | 44.5 | 15.9 | 6 | M8x1.0 | |
| Sa206-19 | 30.162 | 13/16 | 62 | 35.7 | 16 | 23.8 | 9 | 44.5 | 15.9 | 6 | V / 16-24unf |
| Sa206-20 | 31.75 | 11/4 | 62 | 35.7 | 16 | 23.8 | 9 | 44.5 | 15.9 | 6 | V / 16-24unf |
| Sa207-20 | 31.75 | 11/4 | 72 | 38.9 | 17 | 25.4 | 9.5 | 55.6 | 17.5 | 6.5 | V / 16-24unf |
| Sa207-22 | 34.925 | 13/8 | 72 | 38.9 | 17 | 25.4 | 9.5 | 55.6 | 17.5 | 6.5 | V / 16-24unf |
| Sa207 | 35 | 72 | 38.9 | 17 | 25.4 | 9.5 | 55.6 | 17.5 | 6.5 | M8x1.0 | |
| Sa207-23 | 36.513 | 17/16 | 72 | 38.9 | 17 | 25.4 | 9.5 | 55.6 | 17.5 | 6.5 | V / 16-24unf |
| Sa208-24 | 38.1 | 11/2 | 80 | 43.7 | 18 | 30.2 | 11 | 60.3 | 18.3 | 6.5 | V / 16-24unf |
| Sa208-25 | 39.688 | 19/16 | 80 | 43.7 | 18 | 30.2 | 11 | 60.3 | 18.3 | 6.5 | V / 16-24unf |
| Sa208 | 40 | 80 | 43.7 | 18 | 30.2 | 11 | 60.3 | 18.3 | 6.5 | M8x1.0 | |
| Sa209-26 | 41.275 | 15/8 | 85 | 43.7 | 19 | 30.2 | 11 | 63.5 | 18.3 | 6.5 | V / 16-24unf |
| Sa209-27 | 42.863 | 11/6 | 85 | 43.7 | 19 | 30.2 | 11 | 63.5 | 18.3 | 6.5 | V / 16-24unf |
| Sa209 | 45 | 85 | 43.7 | 19 | 30.2 | 11 | 63.5 | 18.3 | 6.5 | M8x1.0 | |
| Sa209-28 | 44.45 | 13/4 | 85 | 43.7 | 19 | 30.2 | 11 | 63.5 | 18.3 | 6.5 | V / 16-24unf |
| Sa210-30 | 47.625 | 17/8 | 90 | 43.7 | 20 | 30.2 | 11 | 69.9 | 18.3 | 6.5 | V / 16-24unf |
| Sa210-31 | 49.213 | 15/16 | 90 | 43.7 | 20 | 30.2 | 11 | 69.9 | 18.3 | 6.5 | V / 16-24unf |
| Sa210 | 50 | 90 | 43.7 | 20 | 30.2 | 11 | 69.9 | 18.3 | 6.5 | M8x1.0 | |
| Sa211-32 | 50.8 | 2 | 100 | 48.4 | 24 | 32.4 | 12 | 76.2 | 20.7 | 8 | III / 8-24unf |
| Sa211-34 | 53.975 | 21/8 | 100 | 48.4 | 24 | 32.4 | 12 | 76.2 | 20.7 | 8 | III / 8-24unf |
| Sa211 | 55 | 100 | 48.4 | 24 | 32.4 | 12 | 76.2 | 20.7 | 8 | M10x1.25 | |
| Sa211-35 | 55.563 | 23/16 | 100 | 48.4 | 24 | 32.4 | 12 | 76.2 | 20.7 | 8 | III / 8-24unf |
| Sa212-36 | 57.15 | 21/4 | 110 | 53.1 | 24 | 33.4 | 12 | 84.2 | 22.3 | 8 | III / 8-24unf |
| Sa212 | 60 | 110 | 53.1 | 24 | 33.4 | 12 | 84.2 | 22.3 | 8 | M10x1.25 | |
| Sa212-38 | 60.325 | 23/8 | 110 | 53.1 | 24 | 33.4 | 12 | 84.2 | 22.3 | 8 | III / 8-24unf |
