SB series inserta gestus sunt princeps perficientur gustas disposito in occursum gravibus onus et altum celeritate requisita in Industrial et mechanica applications. Et unique consilio features includit sphaerica exterius anulum ad facile installation et temperatio, cum internum structura usus summus qualis ferro et provectus lubricatae technology ut optimum gerunt resistentia et lassitudine resistentia. SB series inserere gestus late in Motors, fans, TRADUCTOR zona et alia circumducitur apparatu. Non habent bonum signantes perficientur efficaciter ne intrusionem pulvere et lutum, ita extendens muneris vitae. Haec series gestus offert varietate magnitudinum et configurationes, faciens facilis users eligere secundum specifica necessitatibus. Hoc est bonum compatibility et adaptability et est necessaria clavis pars in modern industria.
Parametri producti

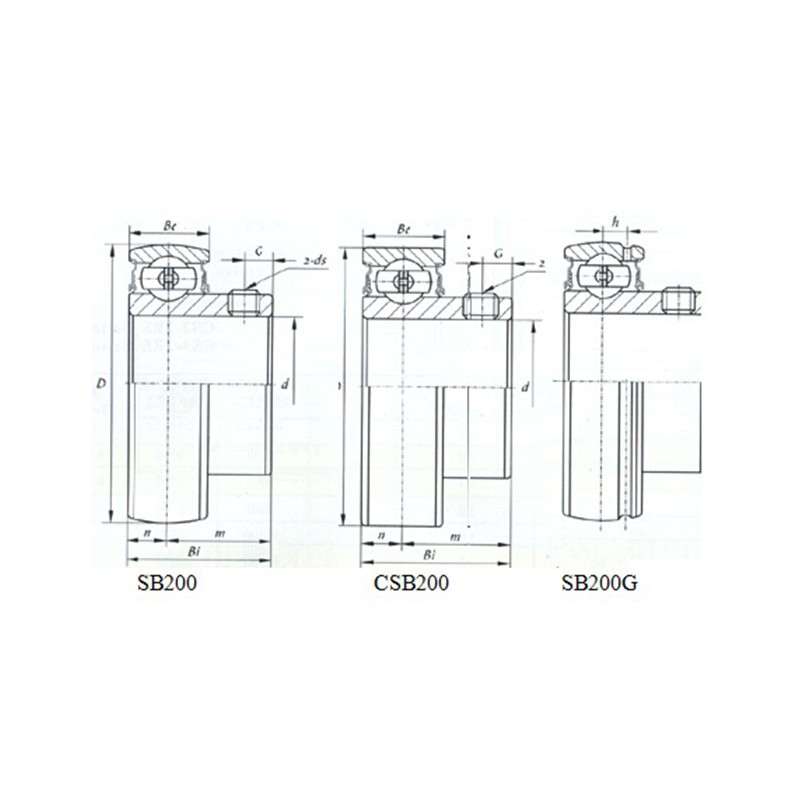

| NOTA | d | Dimensiones (M) | ||||||
| (mm) | (In.) | D | Bi | Ineo | n | G | ds | |
| SB201 | 12 | 40 | 22 | 12 | 6 | 4.5 | M5x0.8 | |
| Sb201-8 | 12.7 | 1/2 | 40 | 22 | 12 | 6 | 4.5 | 10-32unf |
| SB202 | 15 | 40 | 22 | 12 | 6 | 4.5 | M5x0.8 | |
| SB202-10 | 15.875 | 5/8 | 40 | 22 | 12 | 6 | 4.5 | 10-32unf |
| SB203 | 17 | 40 | 22 | 12 | 6 | 4.5 | M5x0.8 | |
| SB203-11 | 17.462 | 11/16 | 40 | 22 | 12 | 6 | 4.5 | 10-32unf |
| Sb204-12 | 19.05 | 3/4 | 47 | 25 | 14 | 7 | 4.5 | I / 4-28unf |
| SB204 | 20 | 47 | 25 | 14 | 7 | 4.5 | M6x1.0 | |
| Sb205-14 | 22.225 | 7/8 | 52 | 27 | 15 | 7.5 | 5.5 | I / 4-28unf |
| SB205 | 25 | 52 | 27 | 15 | 7.5 | 5.5 | M6x1.0 | |
| SB205-16 | 25.4 | 1 | 52 | 27 | 15 | 7.5 | 5.5 | I / 4-28unf |
| Sb206-18 | 28.575 | 11/8 | 62 | 30 | 16 | 8 | 6 | I / 4-28unf |
| SB206 | 30 | 62 | 30 | 16 | 8 | 6 | M6x1.0 | |
| SB206-19 | 30.162 | 13/16 | 62 | 30 | 16 | 8 | 6 | I / 4-28unf |
| SB206-20 | 31.75 | 11/4 | 62 | 30 | 16 | 8 | 6 | I / 4-28unf |
| Sb207-20 | 31.75 | 11/4 | 72 | 32 | 17 | 8.5 | 6.5 | V / 16-24unf |
| SB207-22 | 34.925 | 13/8 | 72 | 32 | 17 | 8.5 | 6.5 | V / 16-24unf |
| SB207 | 35 | 72 | 32 | 17 | 8.5 | 6.5 | M8x1.0 | |
| SB207-23 | 36.513 | 17/16 | 72 | 32 | 17 | 8.5 | 6.5 | V / 16-24unf |
| SB208-24 | 38.1 | 11/2 | 80 | 34 | 18 | 9 | 7 | V / 16-24unf |
| SB208-25 | 39.688 | 19/16 | 80 | 34 | 18 | 9 | 7 | V / 16-24unf |
| SB208 | 40 | 80 | 34 | 18 | 9 | 7 | M8x1.0 | |
| Sb209-26 | 41.275 | 15/8 | 85 | 41.2 | 19 | 9.5 | 8.2 | V / 16-24unf |
| SB209-27 | 42.863 | 11/6 | 85 | 41.2 | 19 | 9.5 | 8.2 | V / 16-24unf |
| SB209 | 45 | 85 | 41.2 | 19 | 9.5 | 8.2 | M8x1.0 | |
| SB209-28 | 44.45 | 13/4 | 85 | 41.2 | 19 | 9.5 | 8.2 | V / 16-24unf |
| SB210-30 | 47.625 | 17/8 | 90 | 41.6 | 20 | 10 | 9.2 | V / 16-24unf |
| SB210-31 | 49.213 | 15/16 | 90 | 41.6 | 20 | 10 | 9.2 | V / 16-24unf |
| SB210 | 50 | 90 | 41.6 | 20 | 10 | 9.2 | M8x1.0 | |
| SB211-32 | 50.8 | 2 | 100 | 45.3 | 24 | 12 | 9.8 | V / 16-24unf |
| S211-34 | 53.975 | 21/8 | 100 | 45.3 | 24 | 12 | 9.8 | V / 16-24unf |
| SB211 | 55 | 100 | 45.3 | 24 | 12 | 9.8 | M8x1.0 | |
| SB211-35 | 55.563 | 23/16 | 100 | 45.3 | 24 | 12 | 9.8 | III / 8-24unf |
| SB212-36 | 57.15 | 21/4 | 110 | 53.7 | 24 | 14.9 | 9.8 | III / 8-24unf |
| SB212 | 60 | 110 | 53.7 | 24 | 14.9 | 9.8 | M10x1.25 | |
| SB212-38 | 60.325 | 23/8 | 110 | 53.7 | 24 | 14.9 | 9.8 | III / 8-24unf |
