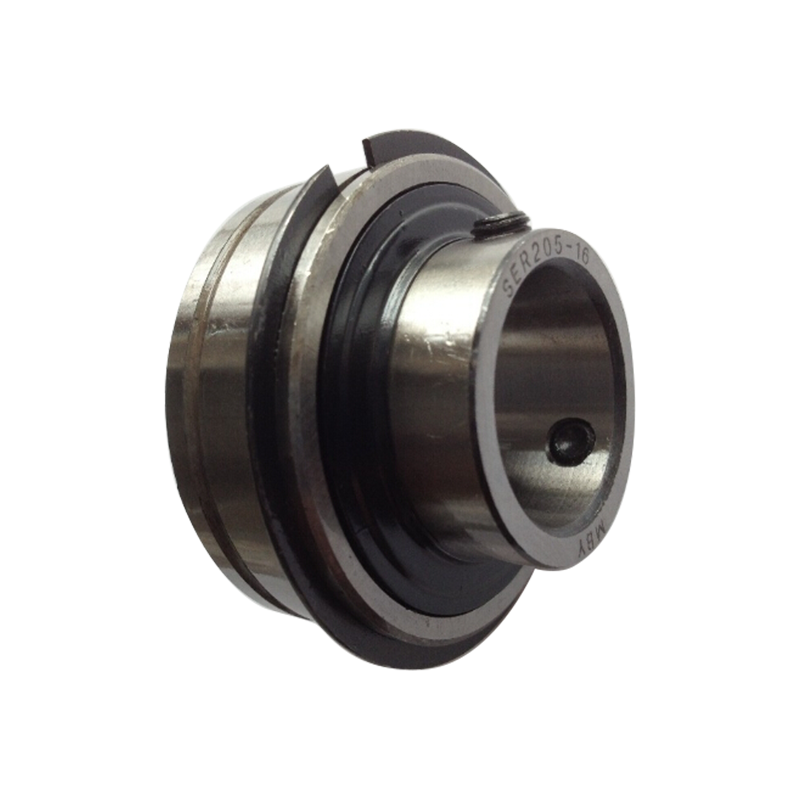

SER series gestarum inserta alta sunt gestus perficiendi ad onera axialia et radialia sustinenda et disposita. Solent consistere anulis internis, circulis exterioribus, elementis et caveis volubilibus, et aequabiliter currere sub magna celeritate et gravi onere condiciones. Praecipua harum actionum commoditates sunt earum compacta magnitudo et facilitas institutionis, easque aptas facientibus variis applicationibus industrialibus, sicut motoribus, nuntiis et automationi instrumento. SER seriei gestus inserta habent bonam gerunt resistentiam et corrosionem resistentiam et eorum servitium vitae efficaciter extendere possunt. Praeterea consilium suum permittit ut velox replacement, reducendo sustentationem gratuita et efficax operandi apparatus. Series SER diversis ambitibus laborandi apta est ac praecipue bene peragit ubi crebrae partes substitutio requiritur.
SER Series immaculata ferro inserta pila gestus machinantur ad applicationes ubi resistentia corrosio, hygiene et durabilitas precipua sunt. Ex ferro incorrupta AISI 440C martensitico constructa, hae gestus optimam repugnantiam praebent umori, acida lenia, et ambitus lavandi sine ullo oneris possibilitate componendo. Anulus sphaericus exteriori consilio stipitem misalignment et inaccuras escendens compensat, dum cochleae densis mechanismus statuto stipite affixum securum praebet. 2RS contactu cum sigillis Flexilis utrinque instructi, gestus ducatus retinent ac ne contagiones in cibariis processus, medicamentis pharmaceuticis et marinis ingrediantur. Partes prae-lubricatae sunt cum uncto ciborum graduum (NSF H1 descripti) ad contactum directum cum productorum consumabilium. Temperatus operans vagatur ab -20°C ad 110°C, compatitur cum cyclis lavatoriis temperatus summus. Available in utroque inch et metrico moles portantes pro reposito directo in apparatu existente.
AISI 440C ferrum est martensiticum immaculatum cum superiore duritie (HRC 58-60) et resistentia ad 304 (austeniticum). 440C aptius facultatem ac lassitudinem vitae onus praebet, eamque potiorem eligit ad applicationes ferendas ubi resistentia corrosio et vires mechanicae requiruntur.
Ita, SER Series ad ambitus washdown cum operating temperaturis usque ad CX°C ordinatur. Sigilla 2RS et adeps cibi-gradus per cyclos purgatio summus temperatus obtinent observantiam. Ad continuam operationem supra 100°C, consule fabricam adipe delectu.
Clavis torque torque cum valore determinato (typice 2-4 Nm pro minoribus magnitudinibus, usque ad 8 Nm ad gestus maiores). Anulum interiorem nimis constringentem deformare potest, dum sub-strictum scapus lapsus causare potest. Semper in compositis filamentis obfirmatis ad applicationes cum tremore utuntur.
Ita, SER Series praesto est cum NSF H1 adipe ciborum gradus descripti, idoneos faciens ad applicationes contactus cibi incidentes. Constructione ferro immaculata et consilio signati ne ducatus contagione cibi emendas.
Parametri producti
| Ferens No. | d | Dimensiones（mm | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (mm) | (in.) | D | Bi | Be | n | j | a | h | P | G | ds | |
| SER201 | 12 | 47 | 31 | 15.9 | 12.7 | 2.38 | 1.07 | 4 | 52.7 | 5 | M6x1 | |
| SER201-8 | 12.7 | 1/2 | 47 | 31 | 15.9 | 12.7 | 2.38 | 1.07 | 4 | 52.7 | 5 | 1/4-28UNF |
| SER202 | 15 | 47 | 31 | 15.9 | 12.7 | 2.38 | 1.07 | 4 | 52.7 | 5 | M6x1 | |
| SER202-10 | 15.875 | 5/8 | 47 | 31 | 15.9 | 12.7 | 2.38 | 1.07 | 4 | 52.7 | 5 | 1/4-28UNF |
| SER203 | 17 | 47 | 31 | 15.9 | 12.7 | 2.38 | 1.07 | 4 | 52.7 | 5 | M6x1 | |
| SER203-11 | 17.463 | 11/16 | 47 | 31 | 15.9 | 12.7 | 2.38 | 1.07 | 4 | 52.7 | 5 | 1/4-28UNF |
| SER204-12 | 19.05 | 3/4 | 47 | 31 | 15.9 | 12.7 | 2.38 | 1.07 | 4 | 52.7 | 5 | 1/4-28UNF |
| SER204 | 20 | 47 | 31 | 15.9 | 12.7 | 2.38 | 1.07 | 4 | 52.7 | 5 | M6x1 | |
| SER205-14 | 22.225 | 7/8 | 52 | 34.9 | 19 | 13.1 | 2.38 | 1.07 | 5.2 | 57.9 | 5.5 | 1/4-28UNF |
| SER205-15 | 23.813 | 15/16 | 52 | 34.9 | 19 | 13.1 | 2.38 | 1.07 | 5.2 | 57.9 | 5.5 | 1/4-28UNF |
| SER205 | 25 | 52 | 34.9 | 19 | 13.1 | 2.38 | 1.07 | 5.2 | 57.9 | 5.5 | M6x1 | |
| SER205-16 | 25.4 | 1 | 52 | 34.9 | 19 | 13.1 | 2.38 | 1.07 | 5.2 | 57.9 | 5.5 | 1/4-28UNF |
| SER206-18 | 28.575 | 1 1/8 | 62 | 38.1 | 22.2 | 15.9 | 3.18 | 1.65 | 5.6 | 67.7 | 5.5 | 1/4-28UNF |
| SER206 | 30 | 62 | 38.1 | 22.2 | 15.9 | 3.18 | 1.65 | 5.6 | 67.7 | 5.5 | M8x1.0 | |
| SER206-19 | 30.163 | 1 3/16 | 62 | 38.1 | 22.2 | 15.9 | 3.18 | 1.65 | 5.6 | 67.7 | 5.5 | 1/4-28UNF |
| SER206-20 | 31.75 | 1 1/4 | 62 | 38.1 | 22.2 | 15.9 | 3.18 | 1.65 | 5.6 | 67.7 | 5.5 | 1/4-28UNF |
| SER207-20 | 31.75 | 1 1/4 | 72 | 42.9 | 23.8 | 17.5 | 3.18 | 1.65 | 5.6 | 78.6 | 6.5 | 5/16-24UNF |
| SER207-21 | 33.338 | 1 5/16 | 72 | 42.9 | 23.8 | 17.5 | 3.18 | 1.65 | 5.6 | 78.6 | 6.5 | 5/16-24UNF |
| SER207-22 | 34.925 | 1 3/8 | 72 | 42.9 | 23.8 | 17.5 | 3.18 | 1.65 | 5.6 | 78.6 | 6.5 | 5/16-24UNF |
| SER207 | 35 | 72 | 42.9 | 23.8 | 17.5 | 3.18 | 1.65 | 5.6 | 78.6 | 6.5 | M8x1.0 | |
| SER207-23 | 36.513 | 1 7/16 | 72 | 42.9 | 23.8 | 17.5 | 3.18 | 1.65 | 5.6 | 78.6 | 6.5 | 5/16-24UNF |
| SER208-24 | 38.1 | 1 1/2 | 80 | 49.2 | 27.8 | 19 | 3.18 | 1.65 | 6.4 | 86.6 | 8 | 5/16-24UNF |
| SER208-25 | 39.688 | 1 9/16 | 80 | 49.2 | 27.8 | 19 | 3.18 | 1.65 | 6.4 | 86.6 | 8 | 5/16-24UNF |
| SER208 | 40 | 80 | 49.2 | 27.8 | 19 | 3.18 | 1.65 | 6.4 | 86.6 | 8 | M8x1.0 | |
| SER209-26 | 41.275 | 1 5/8 | 85 | 49.2 | 27.8 | 19 | 3.18 | 1.65 | 6.4 | 91.6 | 8 | 5/16-24UNF |
| SER209-27 | 42.863 | 1 11/16 | 85 | 49.2 | 27.8 | 19 | 3.18 | 1.65 | 6.4 | 91.6 | 8 | 5/16-24UNF |
| SER209 | 45 | 85 | 49.2 | 27.8 | 19 | 3.18 | 1.65 | 6.4 | 91.6 | 8 | M8x1.0 | |
| SER209-28 | 44.45 | 1 3/4 | 85 | 49.2 | 27.8 | 19 | 3.18 | 1.65 | 6.4 | 91.6 | 8 | 5/16-24UNF |
| SER210-30 | 47.625 | 1 7/8 | 90 | 51.6 | 28.6 | 19 | 3.18 | 2.41 | 7.5 | 96.5 | 9.5 | 3/8-24UNF |
| SER210-31 | 49.213 | 1 15/16 | 90 | 51.6 | 28.6 | 19 | 3.18 | 2.41 | 7.5 | 96.5 | 9.5 | 3/8-24UNF |
| SER210 | 50 | 90 | 51.6 | 28.6 | 19 | 3.18 | 2.41 | 7.5 | 96.5 | 9.5 | M10x1.25 | |
| SER211-32 | 50.8 | 2 | 100 | 55.6 | 30.2 | 22.2 | 3.18 | 2.41 | 7.5 | 106.5 | 10 | 3/8-24UNF |
| SER211-34 | 53.975 | 2 1/8 | 100 | 55.6 | 30.2 | 22.2 | 3.18 | 2.41 | 7.5 | 106.5 | 10 | 3/8-24UNF |
| SER211 | 55 | 100 | 55.6 | 30.2 | 22.2 | 3.18 | 2.41 | 7.5 | 106.5 | 10 | M10x1.25 | |
| SER211-35 | 55.563 | 2 3/16 | 100 | 55.6 | 30.2 | 22.2 | 3.18 | 2.41 | 7.5 | 106.5 | 10 | 3/8-24UNF |
| SER212-36 | 57.15 | 2 1/4 | 110 | 65.1 | 31.8 | 25.4 | 3.18 | 2.41 | 7.5 | 116.6 | 10 | 3/8-24UNF |
| SER212 | 60 | 110 | 65.1 | 31.8 | 25.4 | 3.18 | 2.41 | 7.5 | 116.6 | 10 | M10x1.25 | |
| SER212-38 | 60.325 | 2 3/8 | 110 | 65.1 | 31.8 | 25.4 | 3.18 | 2.41 | 7.5 | 116.6 | 10 | 3/8-24UNF |
| SER212-39 | 61.913 | 2.4375 | 110 | 65.1 | 31.8 | 25.4 | 3.18 | 2.41 | 7.5 | 116.6 | 10 | 3/8-24UNF |
