UC200 series inserere afferentem est summus perficientur volvens ferre late in mechanica apparatu. Eius consilio features includit otium of installation et sustentationem, faciens idoneam ad varietatem operis environments. Et UC200 series plerumque habet integrated habitationi structuram quod potest sustinere magna radiales onerat et axial onerat dum providente bonum anti-fouling capabilities. High-qualis ferro adhibetur intra portantes ut princeps gerunt resistentia et longa muneris vitae. Hoc series inserere et in variis exempla et magnitudinum in occursum diversis applicationem necessitates et communiter in agriculturae machinatione, importans apparatu et industriae machinery. Praeterea, UC200 serie gestus instructa cum diversis generis signantes cogitationes ne uncto lacus et intrusionem externum contaminants, ulterius improving eorum operantes stabilitatem et reliability.
Parametri producti

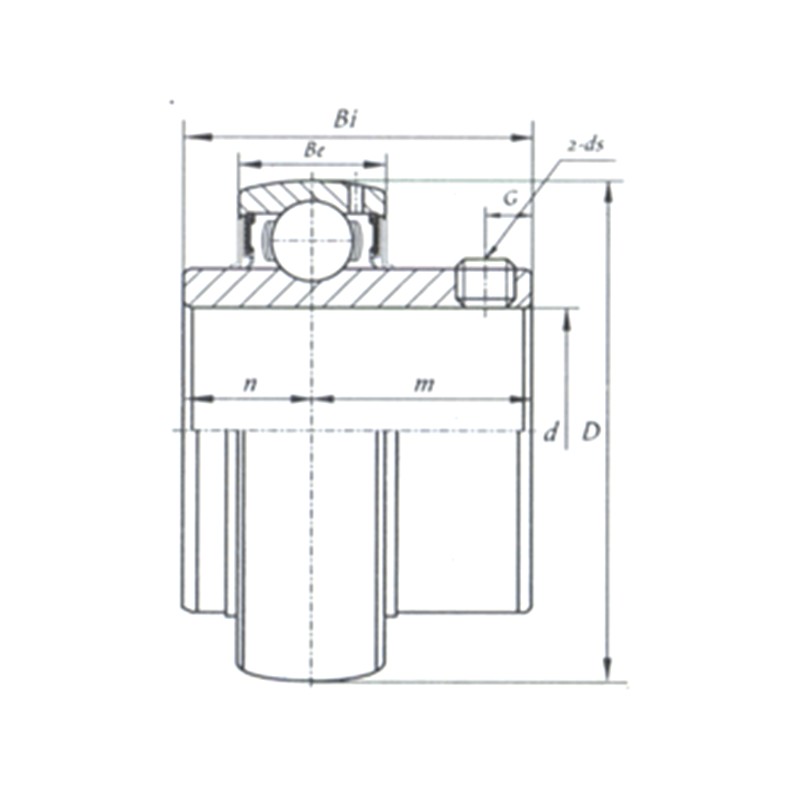

| NOTA | d | Dimensiones (M) | |||||||
| (mm) | (In.) | D | Bi | Ineo | n | m | G | ds | |
| Ucw201 | 12 | 40 | 27.4 | 14 | 11.5 | 15.9 | 4 | M5x0.8 | |
| Ucw202 | 15 | 40 | 27.4 | 14 | 11.5 | 15.9 | 4 | M5x0.8 | |
| Ucw203 | 17 | 40 | 27.4 | 14 | 11.5 | 15.9 | 4 | M5x0.8 | |
| Uc201 | 12 | 47 | 31 | 17 | 12.7 | 18.3 | 5 | M6x1.0 | |
| Uc201-8 | 12.7 | 0.5 | 47 | 31 | 17 | 12.7 | 18.3 | 5 | I / 4-28unf |
| Uc202 | 15 | 47 | 31 | 17 | 12.7 | 18.3 | 5 | M6x1.0 | |
| Uc202-10 | 15.875 | 0.625 | 47 | 31 | 17 | 12.7 | 18.3 | 5 | I / 4-28unf |
| Uc203 | 17 | 47 | 31 | 17 | 12.7 | 18.3 | 5 | M6x1.0 | |
| Uc203-11 | 17.463 | 0.6875 | 47 | 31 | 17 | 12.7 | 18.3 | 5 | I / 4-28unf |
| Uc204-12 | 19.05 | 0.75 | 47 | 31 | 17 | 12.7 | 18.3 | 5 | I / 4-28unf |
| Uc204 | 20 | 47 | 31 | 17 | 12.7 | 18.3 | 5 | M6x1.0 | |
| Uc205-14 | 22.225 | 0.875 | 52 | 34 | 17 | 14.3 | 19.7 | 5.5 | I / 4-28unf |
| Uc205-15 | 23.813 | 15/16 | 52 | 34 | 17 | 14.3 | 19.7 | 5.5 | I / 4-28unf |
| Uc205 | 25 | 52 | 34 | 17 | 14.3 | 19.7 | 5.5 | M6x1.0 | |
| UC205-16 | 25.4 | 1 | 52 | 34 | 17 | 14.3 | 19.7 | 5.5 | I / 4-28unf |
| Uc206-18 | 28.575 | 1.125 | 62 | 38.1 | 19 | 15.9 | 22.2 | 5.5 | I / 4-28unf |
| UC206 | 30 | 62 | 38.1 | 19 | 15.9 | 22.2 | 5.5 | M6x1.0 | |
| Uc206-19 | 30.163 | 1.1875 | 62 | 38.1 | 19 | 15.9 | 22.2 | 5.5 | I / 4-28unf |
| Uc206-20 | 31.75 | 1.25 | 62 | 38.1 | 19 | 15.9 | 22.2 | 5.5 | I / 4-28unf |
| Uc207-20 | 31.75 | 1.25 | 72 | 42.9 | 20 | 17.5 | 25.4 | 6.5 | V / 16-24unf |
| Uc207-21 | 33.338 | 1.3125 | 72 | 42.9 | 20 | 17.5 | 25.4 | 6.5 | V / 16-24unf |
| UC207-22 | 34.925 | 1.375 | 72 | 42.9 | 20 | 17.5 | 25.4 | 6.5 | V / 16-24unf |
| UC207 | 35 | 72 | 42.9 | 20 | 17.5 | 25.4 | 6.5 | M8x1.0 | |
| UC207-23 | 36.513 | 1.4375 | 72 | 42.9 | 20 | 17.5 | 25.4 | 6.5 | V / 16-24unf |
| Uc208-24 | 38.1 | 1.5 | 80 | 49.2 | 21 | 19 | 30.2 | 8 | V / 16-24unf |
| Uc208-25 | 39.688 | 1.5625 | 80 | 49.2 | 21 | 19 | 30.2 | 8 | V / 16-24unf |
| UC208 | 40 | 80 | 49.2 | 21 | 19 | 30.2 | 8 | M8x1.0 | |
| Uc209-26 | 41.275 | 1.625 | 85 | 49.2 | 22 | 19 | 30.2 | 8 | V / 16-24unf |
| Uc209-27 | 42.863 | 1.6875 | 85 | 49.2 | 22 | 19 | 30.2 | 8 | V / 16-24unf |
| UC209-28 | 44.45 | 1.75 | 85 | 49.2 | 22 | 19 | 30.2 | 8 | V / 16-24unf |
| UC209 | 45 | 85 | 49.2 | 22 | 19 | 30.2 | 8 | M8x1.0 | |
| Uc210-30 | 47.625 | 1.875 | 90 | 51.6 | 24 | 19 | 32.6 | 9.5 | III / 8-24unf |
| Uc210-31 | 49.213 | 1-15 / XVI | 90 | 51.6 | 24 | 19 | 32.6 | 9.5 | III / 8-24unf |
| Uc210 | 50 | 90 | 51.6 | 24 | 19 | 32.6 | 9.5 | M10x1.25 | |
| UC210-32 | 50.8 | 2 | 90 | 51.6 | 24 | 19 | 32.6 | 9.5 | III / 8-24unf |
| Uc211-32 | 50.8 | 2 | 100 | 55.6 | 25 | 22.2 | 33.4 | 10 | III / 8-24unf |
| Uc211-34 | 53.975 | 2.125 | 100 | 55.6 | 25 | 22.2 | 33.4 | 10 | III / 8-24unf |
| Uc211 | 55 | 100 | 55.6 | 25 | 22.2 | 33.4 | 10 | M10x1.25 | |
| UC211-35 | 55.563 | 2.1875 | 100 | 55.6 | 25 | 22.2 | 33.4 | 10 | III / 8-24unf |
| Uc212-36 | 57.15 | 2.25 | 110 | 65.1 | 27 | 25.4 | 39.7 | 10 | III / 8-24unf |
| UC212 | 60 | 110 | 65.1 | 27 | 25.4 | 39.7 | 10 | M10x1.25 | |
| UC212-38 | 60.325 | 2.375 | 110 | 65.1 | 27 | 25.4 | 39.7 | 10 | III / 8-24unf |
| Uc212-39 | 61.913 | 2.4375 | 110 | 65.1 | 27 | 25.4 | 39.7 | 10 | III / 8-24unf |
| Uc213-40 | 63.5 | 2.5 | 120 | 65.1 | 28 | 25.4 | 39.7 | 10 | III / 8-24unf |
| Uc213 | 65 | 120 | 65.1 | 28 | 25.4 | 39.7 | 10 | M10x1.25 | |
| Uc214-44 | 69.85 | 2.75 | 125 | 74.6 | 30 | 30.2 | 44.4 | 12 | VII / 16-20unf |
| Uc214 | 70 | 125 | 74.6 | 30 | 30.2 | 44.4 | 12 | M12x1.5 | |
| Uc215-47 | 74.613 | 2.9375 | 130 | 77.8 | 30 | 33.3 | 44.5 | 12 | VII / 16-20unf |
| Uc215 | 75 | 130 | 77.8 | 30 | 33.3 | 44.5 | 12 | M12x1.5 | |
| Uc215-48 | 76.2 | 3 | 130 | 77.8 | 30 | 33.3 | 44.5 | 12 | VII / 16-20unf |
| Uc216-50 | 79.375 | 3.125 | 140 | 82.6 | 33 | 33.3 | 49.3 | 14 | VII / 16-20unf |
| Uc216 | 80 | 140 | 82.6 | 33 | 33.3 | 49.3 | 14 | M12x1.5 | |
| Uc217-52 | 82.55 | 3.25 | 150 | 85.7 | 35 | 34.1 | 51.6 | 14 | VII / 16-20unf |
| UC217 | 85 | 150 | 85.7 | 35 | 34.1 | 51.6 | 14 | M12x1.5 | |
| Uc218-56 | 88.9 | 3.5 | 160 | 96 | 37 | 39.7 | 56.3 | 14 | I / 2-20unf |
| Uc218 | 90 | 160 | 96 | 37 | 39.7 | 56.3 | 14 | M12x1.5 | |
