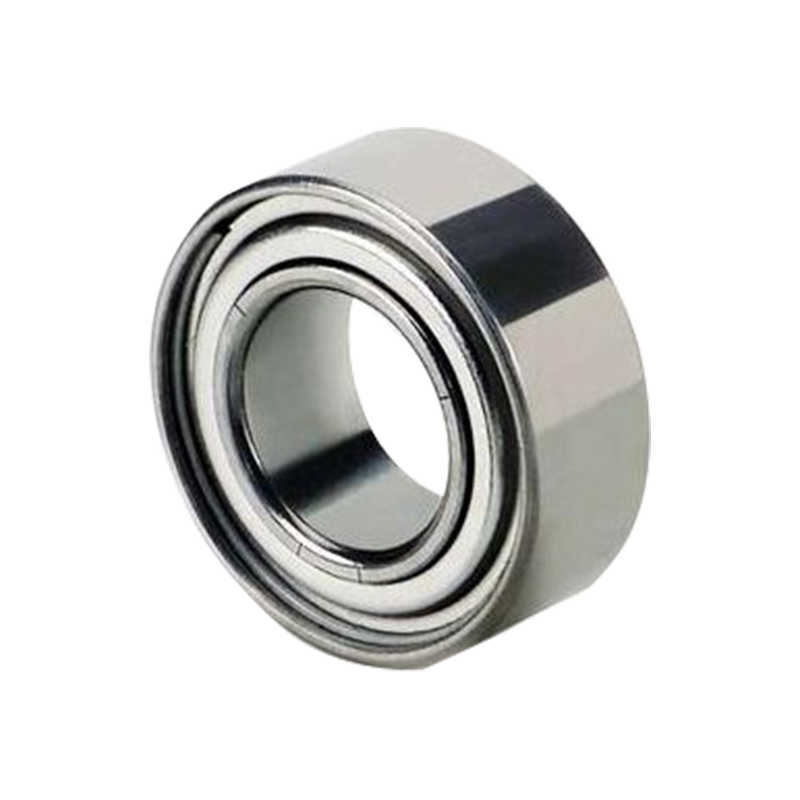

Series LX metrica Miniature pila gestus sunt parva volvens beata vulgo usus in applications ubi spatium limitatur. Fit in moles vndique ex typice 1mm ad 9mm in interiore diameter et usque ad 30mm in exterior diameter, idoneam ad altum praecisionem, humilis frictio et summus celeritas gyrationis necessitatibus. LX series gestus late in medicinae apparatu, parva Motors, instrumenta, robots et alia agri debitum ad suum leve consilium et pacto structura. Design Design duplici pulvis et pulvis et lubricatae tutela extenditur muneris vitae. In addition, haec series in high-qualitas materiae et in altum gestus et resistentia et bonam corrosio resistentia, cursus certa operatio in dura environments.
Parametri producti

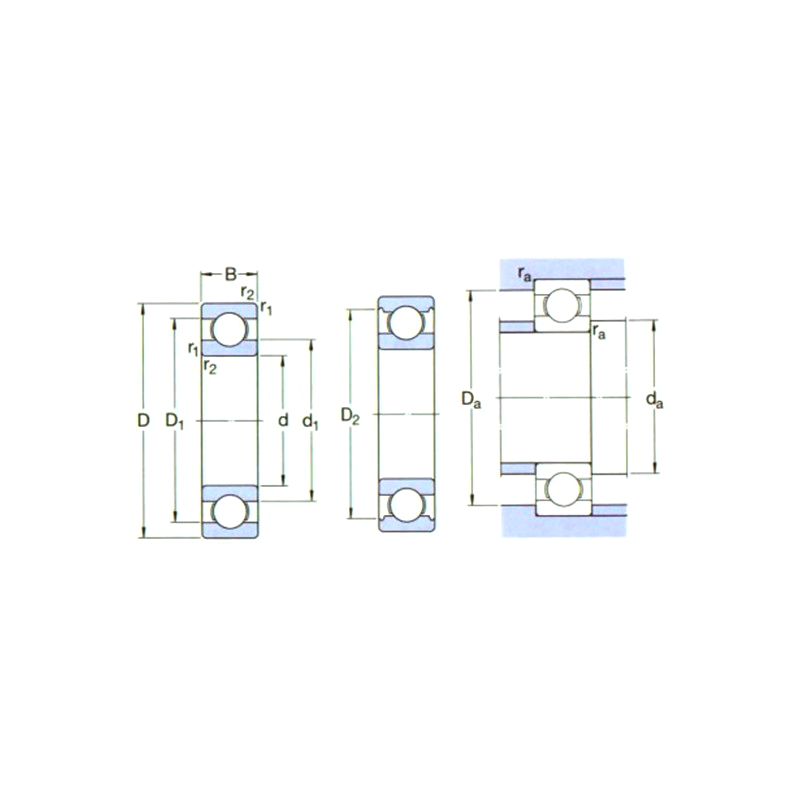

| Designatio | Principalem dimensiones (mm) | Basic onus ratings (n) | Basic load ratings{kgf} | Volo Ratings (RPM) | Abutment et filum dimensiones (mm) | Pondus (G) | |||||||||||||||||
| Clypeus | Type aperta | Et sigillum VV | Et sigillum dd | d | D | B | B1 | R (min) | Credoedo | COR | Cr | COR | Uncto | Oleum | da (min) | DB (Max) | Da (max) | DB (min) | Ra (Max) | RB (Max) | Type aperta | Clypeus | |
| ZZ | D · D | Z | |||||||||||||||||||||
| 601x | 601xzz | - | - | 1.5 | 6 | 2.5 | 3 | 0.15 | 330 | 98 | 34 | 10 | 75000 | - | 90000 | 2.7 | 3 | 4.8 | 0.211111111 | 0.15 | 0.15 | 0.33 | 0.38 |
| 602 | 602zz | - | - | 2 | 7 | 2.8 | 3.5 | 0.15 | 385 | 127 | 39 | 13 | 63000 | - | 75000 | 3.2 | 3.8 | 5.8 | 6.2 | 0.15 | 0.15 | 0.51 | 0.58 |
| 602x | 602xzz | - | - | 2.5 | 8 | 2.8 | 4 | 0.15 | 550 | 175 | 56 | 18 | 60000 | - | 71000 | 3.7 | 4.1 | 6.8 | 7 | 0.15 | 0.15 | 0.63 | 0.83 |
| 603 | 603zz | - | - | 3 | 9 | 3 | 5 | 0.15 | 570 | 187 | 58 | 19 | 56000 | - | 67000 | 4.2 | 4.3 | 7.8 | 7.9 | 0.15 | 0.15 | 0.87 | 1.45 |
| 604 | 604zz | - | - | 4 | 12 | 4 | 4 | 0.2 | 960 | 345 | 98 | 35 | 48000 | - | 56000 | 5.6 | 5.6 | 10.4 | 9.9 | 0.2 | 0.2 | 2.25 | 2.29 |
| 605 | 605zz | - | 605DD | 5 | 14 | 5 | 5 | 0.2 | 1330 | 505 | 135 | 52 | 40000 | 38000 | 50000 | 6.6 | 6.9 | 12.4 | 12.2 | 0.2 | 0.2 | 3.54 | 3.48 |
| 606 | 606zz | 606VV | 606DD | 6 | 17 | 6 | 6 | 0.3 | 2260 | 835 | 231 | 85 | 38000 | 34000 | 45000 | 8 | 8.2 | 15 | 14.8 | 0.3 | 0.3 | 5.97 | 6.08 |
| 607 | 607zz1 | 607vv | 607DD | 7 | 19 | 6 | 6 | 0.3 | 2340 | 885 | 238 | 90 | 36000 | 32000 | 43000 | 9 | 9.1 | 17 | 16.5 | 0.3 | 0.3 | 7.67 | 7.51 |
| 608 | 608zz | 608vv | 608DD | 8 | 22 | 7 | 7 | 0.3 | 3300 | 1370 | 335 | 140 | 34000 | 28000 | 40000 | 10 | 10.5 | 20 | 19 | 0.3 | 0.3 | 12.1 | 12.2 |
| 609 | 609zz | 609vv | 609DD | 9 | 24 | 7 | 7 | 0.3 | 3350 | 1430 | 340 | 146 | 32000 | 24000 | 38000 | 11 | 12 | 22.8 | 20.5 | 0.3 | 0.3 | 14.5 | 14.7 |
