Et UCF series ferre sedes est summus perficientur afferentem productum quod late in industriae machinatione, agriculturae apparatu, automation apparatu et aliis agris. Sunt facta de summus qualis materiae et optimum gerunt resistentia et corrosio resistentia ut diu terminus firmum operationem. Consilium UCF serie includit integrated ferre et bracket ad facile installation et sustentationem, quod potest efficaciter reducere apparatu vibrationis et strepitu. Et standardized magnitudine et configuratione faciunt altus compatible cum aliis mechanica components et in occursum necessitates variis operantes conditionibus. Praeterea, UCF series ferre sedes providere variis genera signantes structurae adhuc augendae eorum applicationem perficientur in dura environments. Utrum sit lux vel gravibus onus, UCF seriem ferre Housings sunt specimen enim agentibus tradenda et precise positioning.
Parametri producti

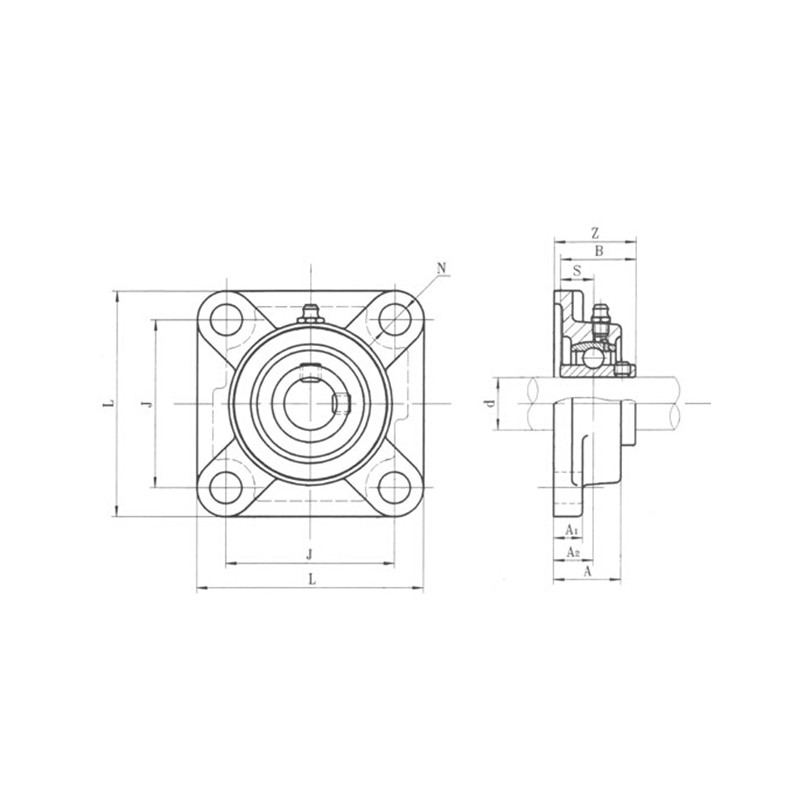

| Typus (in domo) | Dimensiones (mm) | Fulmine dimensiones | Type | Domus Type | Pondus (in domo) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | L | A | J | A1 | A2 | N | Z | B | S | (KG) | ||||
| Ucf204 | 20 | 86 | 25.5 | 64 | 11 | 15 | 12 | 33.3 | 31 | 12.7 | M10 | Uc204 | F204 | 0.6 |
| Ucf205 | 25 | 95 | 27 | 70 | 13 | 16 | 12 | 35.7 | 34.1 | 14.3 | M10 | Uc205 | F205 | 0.8 |
| Ucf206 | 30 | 108 | 31 | 83 | 13 | 18 | 12 | 40.2 | 38.1 | 15.9 | M10 | Uc206 | F206 | 1 |
| Ucf207 | 35 | 117 | 34 | 92 | 15 | 19 | 14 | 44.4 | 42.9 | 17.5 | M12 | Uc207 | F207 | 1.4 |
| Ucf208 | 40 | 130 | 36 | 102 | 15 | 21 | 16 | 51.2 | 49.2 | 19 | M14 | Uc208 | F208 | 1.8 |
| Ucf209 | 45 | 137 | 38 | 105 | 16 | 22 | 16 | 52.2 | 49.2 | 19 | M14 | Uc209 | F209 | 2.2 |
| Ucf210 | 50 | 143 | 40 | 111 | 16 | 22 | 16 | 54.6 | 51.6 | 19 | M14 | Uc210 | F210 | 2.4 |
| Ucf211 | 55 | 162 | 43 | 130 | 18 | 25 | 19 | 58.4 | 55.6 | 22.2 | M16 | Uc211 | F211 | 3.6 |
| Ucf212 | 60 | 175 | 48 | 143 | 18 | 29 | 19 | 68.7 | 65.1 | 25.4 | M16 | Uc212 | F212 | 4.4 |
| Ucf213 | 65 | 187 | 50 | 149 | 22 | 30 | 19 | 69.7 | 65.1 | 25.4 | M16 | Uc213 | F213 | 5.5 |
| Ucf214 | 70 | 193 | 54 | 152 | 22 | 31 | 19 | 75.4 | 74.6 | 30.2 | M16 | Uc214 | F214 | 6.1 |
| Ucf215 | 75 | 200 | 56 | 159 | 22 | 34 | 19 | 78.5 | 77.8 | 33.3 | M16 | Uc215 | F215 | 6.9 |
| Ucf216 | 80 | 208 | 58 | 165 | 22 | 34 | 23 | 83.3 | 82.6 | 33.3 | M20 | Uc216 | F216 | 8.1 |
| Ucf217 | 85 | 220 | 63 | 175 | 24 | 36 | 23 | 87.6 | 85.7 | 34.1 | M20 | UC217 | F217 | 9.3 |
| Ucf218 | 90 | 235 | 68 | 187 | 24 | 40 | 23 | 96.3 | 96 | 39.7 | M20 | Uc218 | F218 | 11 |
