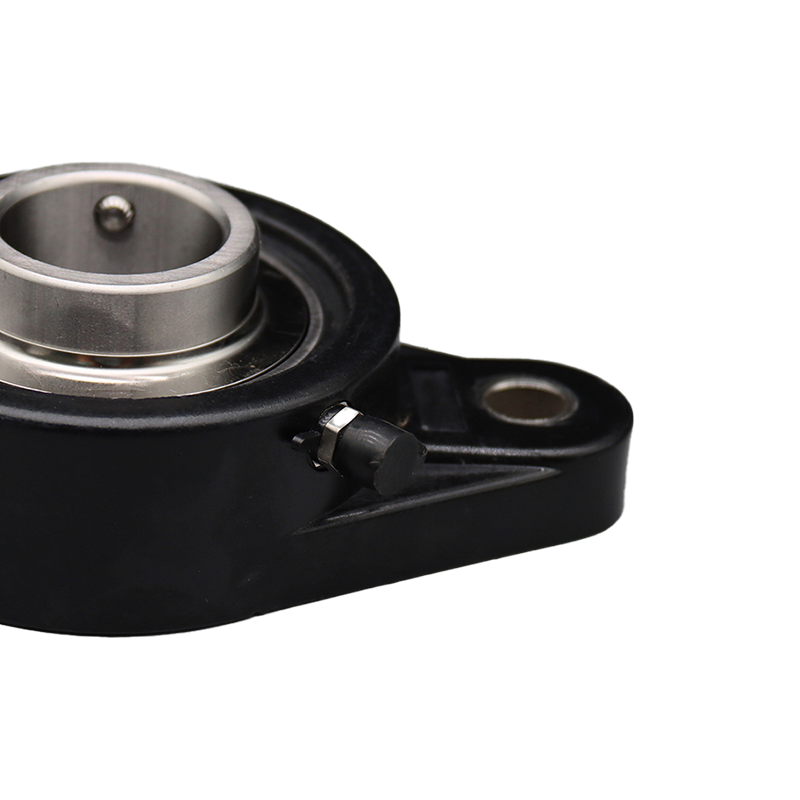

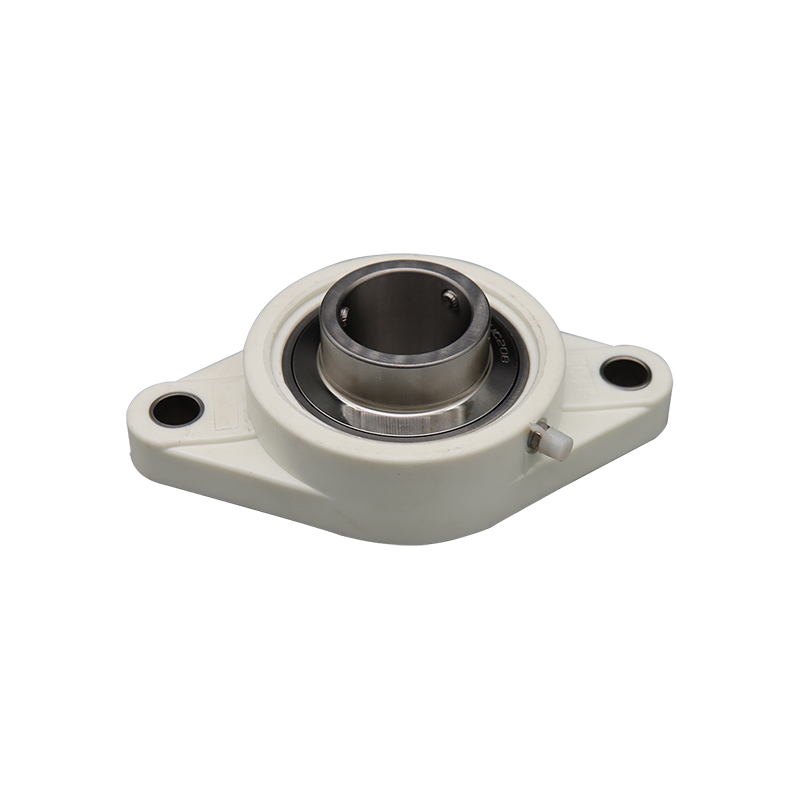

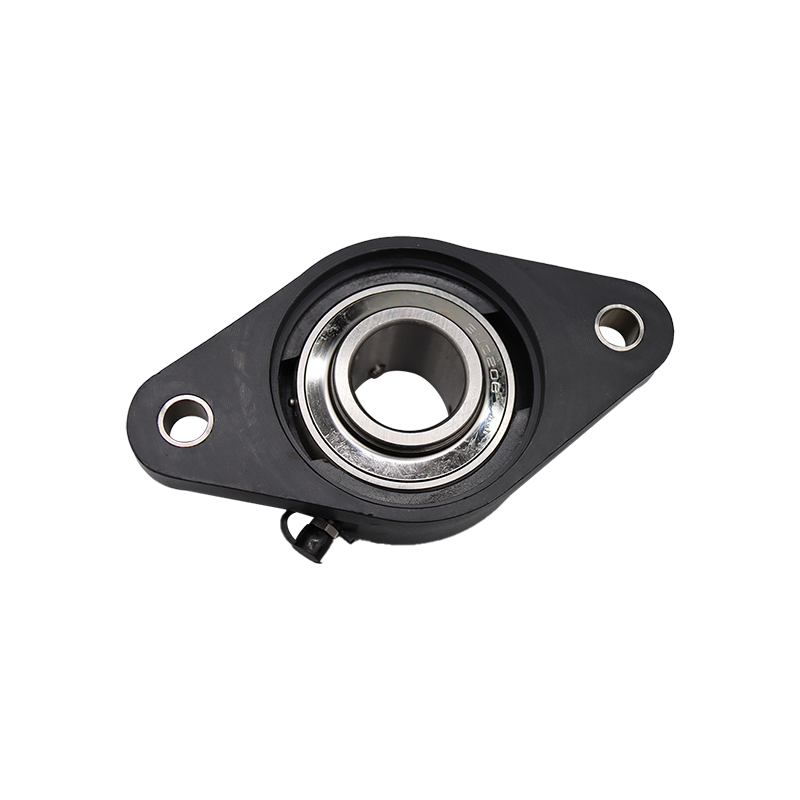

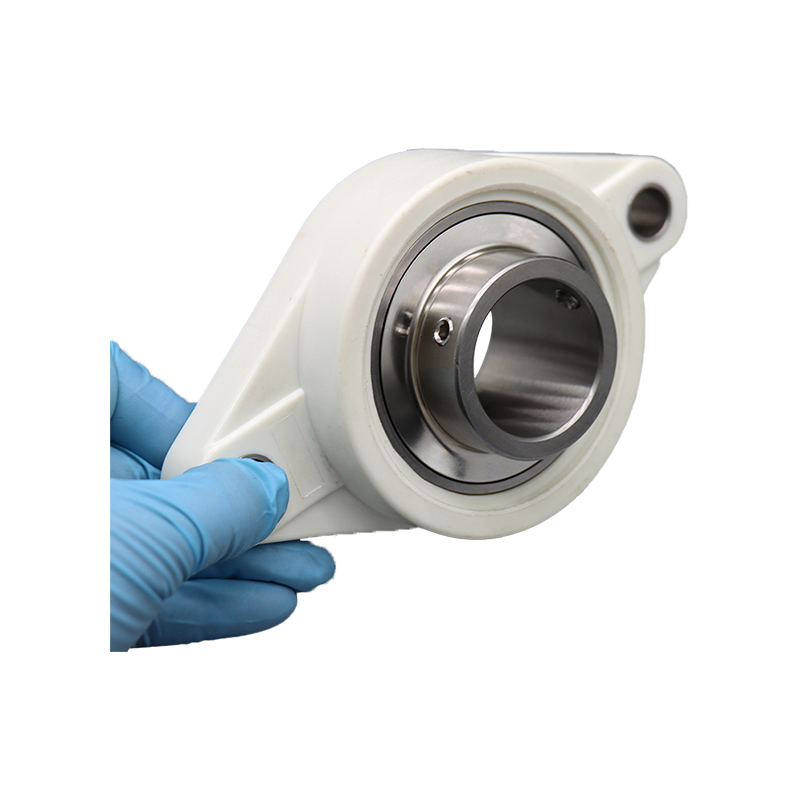

Et UCFL series ferre sedes est volvens ferre conventus late in mechanica apparatu et specialiter disposito ad resistere radiales onerat et axial onerat. Sunt plerumque de summus viribus mittebant ferrum aut aluminium mixturae materiae cum bono corrosio resistentia et gerunt resistentia. In Design Feature de UCFL series est verticalis installation structuram, quae concedit ad esse bonum operating perficientur etiam cum spatium limitatur. Hoc genus ferre sedes aedificavit-in altum sulcus pila gestus, quod potest efficaciter redigendum friction et gerunt et amplio opus efficientiam. UCFL series ferre sedes late in automation apparatibus, agriculturae machinatione, transmissione apparatu et aliis agri, et potest praebere firmum et certa firmamentum. Et otium of installation et sustentacionem facit popularibus in industria. Per usura UCFL series ferentem sedes, in ministerium vitae apparatu efficaciter extenditur, sustentacionem costs potest reduci, et altiore productio efficientiam potest esse melius.
Parametri producti

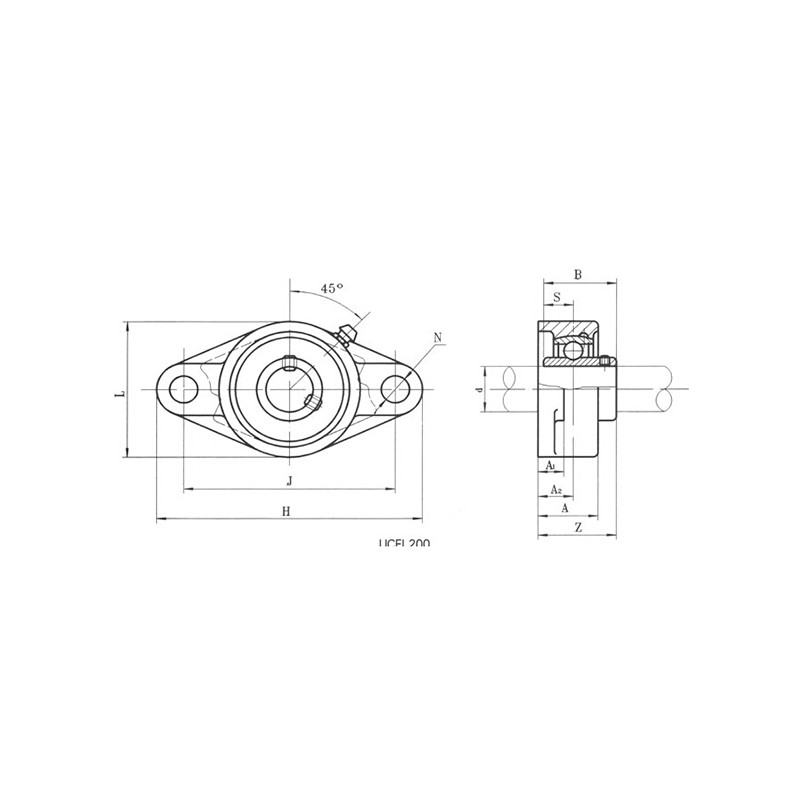

| Exemplar | Magnitudine (mm) | Apertura | EXEMPLAR | Ferre sedes exemplar | Pondus (cum sede) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | H | J | A2 | A1 | A | N | L | Z | B | S | (KG) | ||||
| Ucfl204 | 20 | 113 | 90 | 15 | 11 | 25.5 | 12 | 60 | 33.3 | 31 | 12.7 | M10 | Uc204 | Fl204 | 0.5 |
| Ucfl205 | 25 | 130 | 99 | 16 | 13 | 27 | 16 | 68 | 35.7 | 34.1 | 14.3 | M14 | Uc205 | Fl205 | 0.6 |
| Ucfl206 | 30 | 148 | 117 | 18 | 13 | 31 | 16 | 80 | 40.2 | 38.1 | 15.9 | M14 | Uc206 | Fl206 | 0.9 |
| Ucfl207 | 35 | 161 | 130 | 19 | 15 | 34 | 16 | 90 | 44.4 | 42.9 | 17.5 | M14 | Uc207 | Fl207 | 1.2 |
| Ucfl208 | 40 | 175 | 144 | 21 | 15 | 36 | 16 | 100 | 51.2 | 49.2 | 19 | M14 | Uc208 | Fl208 | 1.6 |
| Ucfl209 | 45 | 188 | 148 | 22 | 16 | 38 | 19 | 108 | 52.2 | 49.2 | 19 | M16 | Uc209 | Fl209 | 1.9 |
| UCFL210 | 50 | 197 | 157 | 22 | 16 | 40 | 19 | 115 | 54.6 | 51.6 | 19 | M16 | Uc210 | FL210 | 2.2 |
| UCFL211 | 55 | 224 | 184 | 25 | 18 | 43 | 19 | 130 | 58.4 | 55.6 | 22.2 | M16 | Uc211 | FL211 | 3.1 |
| UCFL212 | 60 | 250 | 202 | 29 | 18 | 48 | 23 | 140 | 68.7 | 65.1 | 25.4 | M20 | Uc212 | FL212 | 4 |
| UCFL213 | 65 | 258 | 210 | 30 | 22 | 50 | 23 | 155 | 69.7 | 65.1 | 25.4 | M20 | Uc213 | FL213 | 5 |
| UCFL214 | 70 | 265 | 216 | 31 | 22 | 54 | 23 | 160 | 75.4 | 74.6 | 30.2 | M20 | Uc214 | FL214 | 5.6 |
| UCFL215 | 75 | 275 | 225 | 34 | 22 | 56 | 23 | 165 | 78.5 | 77.8 | 33.3 | M20 | Uc215 | FL215 | 6.2 |
| UCFL216 | 80 | 290 | 233 | 34 | 22 | 58 | 25 | 180 | 83.3 | 82.6 | 33.3 | M22 | Uc216 | FL216 | 8.2 |
| UCFL217 | 85 | 305 | 248 | 36 | 24 | 63 | 25 | 190 | 87.6 | 85.7 | 34.1 | M22 | Uc217 | FL217 | 9.3 |
| UCFL218 | 90 | 320 | 265 | 40 | 24 | 68 | 25 | 205 | 96.3 | 96 | 39.7 | M22 | Uc218 | FL218 | 11 |
