Gebj ... s sphaerica plane afferentem est magni momenti portantes late in variis machinatione et ipsum apparatu, cum unique consilio et perficientur characteres. Est ex interiore circulum et exterius anulum. Interiorem circulum potest gyrari et deflectunt in aliquo directionem ad exteriorem annulum, et apta Axialia et radiales onerat. Gebj gestus solent ex summus vires stille materiae, ut optimum gerunt resistentia et corrosio resistentia, et potest operari stabiliter diu in dura ambitus. Hoc genus afferentem late in aerospace, automotive, constructione et metalla industries propter suam facultatem efficaciter redigendum frictio, amplio apparatus efficientiam et extend ad ministerium vitae apparatu.
Parametri producti

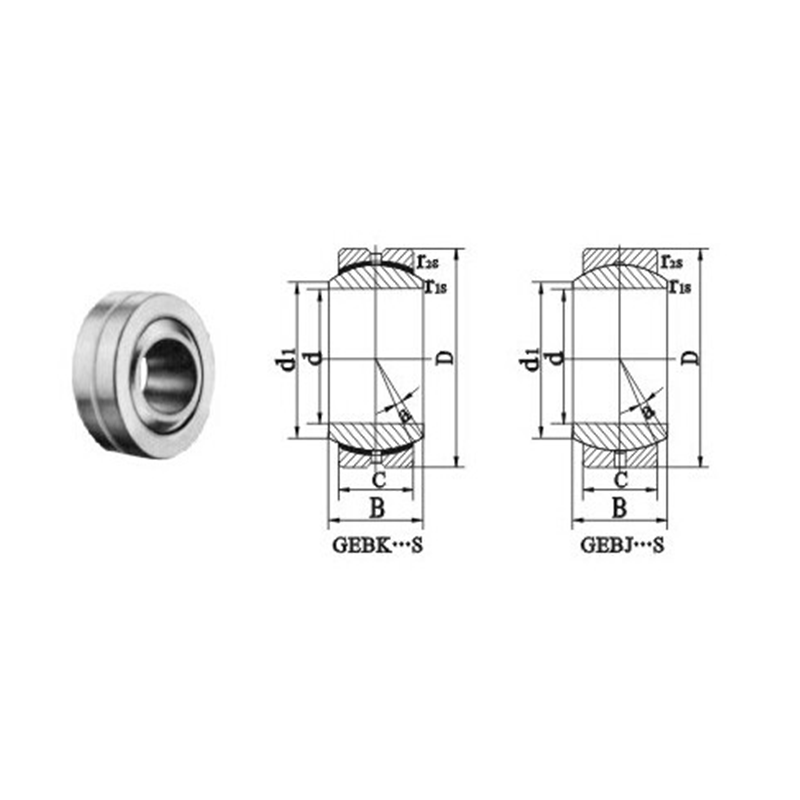

| Designatio | Dimensiones (mm) | Load ratings (KN) | α · ≈ | Pondus (kg) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| d | D | B | C | D1 min | r1s min | r2s min | C | Cogo | |||
| Gebk5s | 5 | 16 | 8 | 6 | 7.7 | 0.3 | 0.3 | 3.3 | 7.8 | 13 | 0.009 |
| Gebk6s | 6 | 18 | 9 | 6.75 | 9 | 0.3 | 0.3 | 4.3 | 9.8 | 13 | 0.013 |
| Gebk8s | 8 | 22 | 12 | 9 | 10.4 | 0.3 | 0.3 | 6.8 | 16 | 14 | 0.024 |
| Gebk10s | 10 | 26 | 14 | 10.5 | 12.9 | 0.3 | 0.6 | 10 | 23 | 14 | 0.039 |
| Gebk12s | 12 | 30 | 16 | 12 | 15.4 | 0.3 | 0.6 | 13 | 31 | 13 | 0.058 |
| Gebk14s | 14 | 34 | 19 | 13.5 | 16.9 | 0.3 | 0.6 | 17 | 40 | 16 | 0.084 |
| Gebk16s | 16 | 38 | 21 | 15 | 19.4 | 0.3 | 0.6 | 21 | 50 | 15 | 0.111 |
| Gebk18s | 18 | 42 | 23 | 16.5 | 21.9 | 0.3 | 0.6 | 26 | 61 | 15 | 0.16 |
| Gebk20s | 20 | 46 | 25 | 18 | 24.4 | 0.3 | 0.6 | 31 | 73 | 15 | 0.21 |
| Gebk22s | 22 | 50 | 28 | 20 | 25.8 | 0.3 | 0.6 | 38 | 88 | 15 | 0.26 |
| Gebk25s | 25 | 56 | 31 | 22 | 29.6 | 0.6 | 0.6 | 47 | 110 | 15 | 0.39 |
| Gebk30s | 30 | 66 | 37 | 25 | 34.8 | 0.6 | 0.6 | 63 | 148 | 17 | 0.61 |
| Gebj5s | 5 | 13 | 8 | 6 | 7.7 | 0.3 | 0.3 | 3.2 | 9 | 13 | 0.007 |
| Gebj6s | 6 | 16 | 9 | 6.75 | 9 | 0.3 | 0.3 | 4.1 | 12 | 13 | 0.01 |
| Gebj8s | 8 | 19 | 12 | 9 | 10.4 | 0.3 | 0.3 | 6.5 | 20 | 13 | 0.016 |
| Gebj10s | 10 | 22 | 14 | 10.5 | 12.9 | 0.3 | 0.6 | 9.6 | 28 | 13 | 0.031 |
| Gebj12s | 12 | 26 | 16 | 12 | 15.4 | 0.3 | 0.6 | 12 | 37 | 13 | 0.055 |
| Gebj14s | 14 | 28 | 19 | 13.5 | 16.9 | 0.3 | 0.6 | 16 | 49 | 15 | 0.078 |
| Gebj16s | 16 | 32 | 21 | 15 | 19.4 | 0.3 | 0.6 | 20 | 61 | 15 | 0.095 |
| Gebj18s | 18 | 35 | 23 | 16.5 | 21.9 | 0.3 | 0.6 | 25 | 74 | 15 | 0.14 |
| Gebj20s | 20 | 40 | 25 | 18 | 24.4 | 0.3 | 0.6 | 30 | 89 | 15 | 0.18 |
| Gebj22s | 22 | 42 | 28 | 20 | 25.8 | 0.3 | 0.6 | 36 | 108 | 15 | 0.21 |
| Gebj25s | 25 | 47 | 31 | 22 | 29.6 | 0.6 | 0.6 | 45 | 130 | 15 | 0.35 |
| Gebj30s | 30 | 55 | 37 | 25 | 34.8 | 0.6 | 0.6 | 61 | 178 | 15 | 0.56 |
