23200 Series

23200 series globosa cylindrus gestus quaedam sunt gestus ad onera gravia et incursus oneris aptas condiciones, cum praestantia observantia aligning, quae sponte aptare potest errorem angularem generatum ex vecte misalignment vel habitationi misalignment. Vexillationes harum gestuum sunt sphaericae figurae, et curricula annulorum interiorum et exteriorum sunt etiam sphaerici, quae efficit ut efficaciter onera distribuant, frictiones induant et vitam prolongent. 23200 series communiter in agris industrialibus adhibentur, ut fodienda machina, metallica instrumenta, vectores et graves machinis, quae possunt in duris ambitibus et in maximis gressibus firmam accommodare.

Mitte inquisitionem

23200 Series Spherical Roller Bearing

23200 series globosus cylindrus gerens onera radialia et bidirectionalia onera axialis per suam configurationem rotundum symmetricum duplicatum accommodat. Exterior anulus incorporat stadium sphaericum, quod auto-alignmentam dat, compensans misalignationem angularis inter hastile et habitationem. Haec series notat cylindrus optimized geometriae cum cavea aenea machinata vel chalybea quae cylindrum iustae servat sub variis oneris conditionibus. Ferens operatur intra -30°C ad 150°C temperatura range pro calonibus vexillum ferreum. Quaelibet unitas logarithmica includit profile in scutulis et stadiis ad marginem reducendum extollit. Internus alvi coetus CN vexillum est, cum C3 et C4 in specificatione praesto sunt. Load ratings follow ISO 281 calculi methodi.

Core Commoda

Misalignment excambium usque ad 2 gradus sub conditionibus stabilibus vel 1.5 gradibus sub operatione dynamica
Duplex ordo cylindrus dispositio distribuit onera radialia per duas lineas contactus
Parametri dimensibiles convertuntur secundum ISO 15:2017 vexillum
Per obduratum ferreum cum 58-62 HRC superficiei duritiei
Anulus interior removeri ad ornatum cylindricum vel acuminati manicas nibh

Product Characteres

Pertundere diam range	40 mm usque ad 200 mm
Exterior diam rhoncus	80 mm usque ad 420 mm
Latitudo range	23 mm usque ad 138 mm
Dynamic onus rating (C)	98 kN ad 1680 kN
Static onus rating (C0)	127 kN ad 2360 kN
Limitandi celeritas (adipe)	2000 rpm ad 5000 rpm
Limitandi celeritas (oleum)	2600 rpm ad 6700 rpm
Cagea materiales optiones	Aes, chalybs, polyamide
Internum alvi genera	CN, C3, C4

Application missiones

Vibrantes screens et eccentrici agitet in complexu processus
Industrial gearboxes hastile claudicatio requisita
Ventus Turbine sagittis et yaW / picem machinationes
Charta fabricandis rotulis et siccandis cylindris
Mining TRADUCTOR in longum hastile palmorum
Ferro molendini armorum continua mittentes

Frequenter Interrogata

Quae methodus lubricationis ad 23200 series applicat?

Unguitas lubricationis cum NLGI gradu 2 vel 3 incom- culo lithio est norma celeritatum infra 70% limitandi celeritatis. Lubricatio olei circulatio vel oleum balneum applicatur cum temperaturas operating 100°C excedunt vel celeritates valorem limitem appropinquant.

Quomodo eligere rectam alvi internam?

CN alvi normales temperaturae operandi inter 20°C et 80°C cum hastilia ferro convenit. C3 alvi applicat, si temperamentum differentiale inter annulum interiorem et habitationem 15°C excedit, vel cum impedimentum idoneus superat 0.05% scapularum diametri.

Quid significat necessitatem postea afferentem?

Crescite in amplitudine vibrationis operativae limina excedente ISO 10816-3, oriuntur in portando habitationem temperatura supra 95°C sub onere consistente, vel stridorem metallicum audibile in rotatione.

Cautiones instruitur

Adscendens modum

Utere inductione calefacientis ad dilatandum anulum internum uniformiter. Maximum temperamentum calefactionis 110°C limitatum ad vexillum ferreum portantem. Noli excedere 120°C ad vitandum effectus temperandos in duritia.

Comprobatio apta hastile

Ad applicationes hastili circumagendo, impedimentum utere cum tolerantia f6 vel m6 apta. Ad applicationes scapus stationarius, uti h6 vel h7, fit transitus. Habitationi tolerantiam tolerantiae commendatur ut H7 pro insternis scissuris vel P6 pro solidis insternitionibus.

Lubricatio intervallum

Omnem 1000 horarum operantem vel trimestre tempus sub condicionibus normalibus retrahe. Nam temperaturas ambientes supra 70°C, intervallum ad 500 horas reducendum.

Repono conditionibus

Copia in originali packaging cum corrosione inhibitoris integri. Humiditas ambiens infra 65% RH, temperatura range 0°C ad 40°C. Vitare positis plus quam tria cursare.

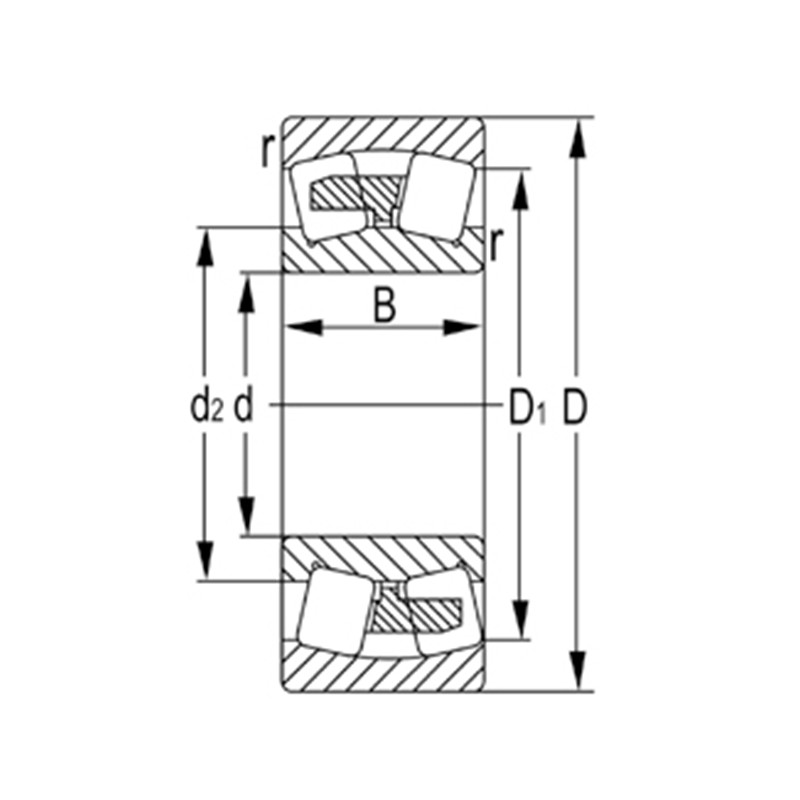

Designatio	Dimensiones principales (mm)				Basic Load* Ratings (KN)		Mobilitate limitata (rpm)		Pondus
Designatio	d	D	B	rs min	Dynamic(Cr)	Static(Cor)	Grease	Oleum	(kg)
23218	90	160	52.4	2	315	455	1800	2800	4.45
23218K	90	160	52.4	2	315	455	1800	2800	4.32
23218KW33C3	90	160	52.4	2	315	455	1800	2800	4.32
23218W33C3	90	160	52.4	2	315	455	1800	2800	4.45
23220	100	180	60.3	2.1	405	580	1600	2500	6.47
23220K	100	180	60.3	2.1	405	580	1600	2500	6.28
23220KW33C3	100	180	60.3	2.1	405	580	1600	2500	6.28
23220W33C3	100	180	60.3	2.1	405	580	1600	2500	6.47
23222	110	200	69.8	2.1	515	760	1400	2200	9.71
23222K	110	200	69.8	2.1	515	760	1400	2200	9.43
23222KW33C3	110	200	69.8	2.1	515	760	1400	2200	9.43
23222W33C3	110	200	69.8	2.1	515	760	1400	2200	9.71
23224	120	215	76	2.1	585	880	1300	2000	12.1
23224K	120	215	76	2.1	585	880	1300	2000	11.7
23224KW33C3	120	215	76	2.1	585	880	1300	2000	11.7
23224W33C3	120	215	76	2.1	585	880	1300	2000	12.1
23226	130	230	80	3	685	1060	1200	1900	14.3
23226K	130	230	80	3	685	1060	1200	1900	13.9
23226KW33C3	130	230	80	3	685	1060	1200	1900	13.9
23226W33C3	130	230	80	3	685	1060	1200	1900	14.3
23228	140	250	88	3	805	1270	1100	1700	18.8
23228K	140	250	88	3	805	1270	1100	1700	18.2
23228KW33C3	140	250	88	3	805	1270	1100	1700	18.2
23228W33C3	140	250	88	3	805	1270	1100	1700	18.8
23230	150	270	96	3	935	1460	1000	1600	24.1
23230K	150	270	96	3	935	1460	1000	1600	23.4
23230KW33C3	150	270	96	3	935	1460	1000	1600	23.4
23230W33C3	150	270	96	3	935	1460	1000	1600	24.1
23232	160	290	104	3	1050	1660	960	1500	30
23232K	160	290	104	3	1050	1660	960	1500	29.1
23232KW33C3	160	290	104	3	1050	1660	960	1500	29.1
23232W33C3	160	290	104	3	1050	1660	960	1500	30
23234	170	310	110	4	1180	1960	910	1400	36.8
23234K	170	310	110	4	1180	1960	910	1400	35.7
23234KW33C3	170	310	110	4	1180	1960	910	1400	35.7
23234W33C3	170	310	110	4	1180	1960	910	1400	36.8
23236	180	320	112	4	1230	2000	850	1300	39
23236K	180	320	112	4	1230	2000	850	1300	37.8
23236KW33C3	180	320	112	4	1230	2000	850	1300	37.8
23236W33C3	180	320	112	4	1230	2000	850	1300	39
23238	190	340	120	4	1400	2330	790	1200	47.6
23238K	190	340	120	4	1400	2330	790	1200	46.2
23238KW33C3	190	340	120	4	1400	2330	790	1200	46.2
23238W33C3	190	340	120	4	1400	2330	790	1200	47.6
23240	200	360	128	4	1610	2640	750	1200	57.2
23240K	200	360	128	4	1610	2640	750	1200	55.5
23240KW33C3	200	360	128	4	1610	2640	750	1200	55.5
23240W33C3	200	360	128	4	1610	2640	750	1200	57.2
23244	220	400	144	4	2010	3350	670	1000	80
23244K	220	400	144	4	2010	3350	670	1000	77.6
23244KW33C3	220	400	144	4	2010	3350	670	1000	77.6
23244W33C3	220	400	144	4	2010	3350	670	1000	80
23248	240	440	160	4	2430	4100	610	940	108
23248K	240	440	160	4	2430	4100	610	940	105
23248KW33C3	240	440	160	4	2430	4100	610	940	105
23248W33C3	240	440	160	4	2430	4100	610	940	108
23252	260	480	174	5	2760	4700	560	860	141
23252K	260	480	174	5	2760	4700	560	860	137
23252KW33C3	260	480	174	5	2760	4700	560	860	137
23252W33C3	260	480	174	5	2760	4700	560	860	141
23256	280	500	176	5	2930	5150	510	790	150
23256K	280	500	176	5	2930	5150	510	790	145
23256KW33C3	280	500	176	5	2930	5150	510	790	145
23256W33C3	280	500	176	5	2930	5150	510	790	150
23260	300	540	192	5	3450	6000	470	730	193
23260K	300	540	192	5	3450	6000	470	730	187
23260KW33C3	300	540	192	5	3450	6000	470	730	187
23260W33C3	300	540	192	5	3450	6000	470	730	193
