LM Series vexillum linearibus illapsum afferentem Est summus perficientur linearibus motus component late in variis mechanica et automation apparatu. Haec series gestus fiunt altus qualis ferro et optimum gerunt resistentia et corrosio resistentia, et potest sustinere altum onera et celeritatibus. Et structural consilium facit installation facile et compatible cum variis dux rail systems ut lenitate et accurate linearibus motus. In interiore et exteriores annulos LM serie gestus sunt praecisione machined et matched cum summus qualitas balls ad redigendum friction et amplio operating efficientiam. In addition, hoc seriem gestus habere bonum temperatus adaptability et anti-pollutio capabilities et idoneam operantes in dura environments. Sunt idealis electiones ad industriae automation, robots, cnc machina instrumenta et aliis agris. Per rationabile sustentationem et upkeep, in ministerium vitae LM series gestus potest esse significantly extenditur, cursus firmum operationem in apparatu.
In LM series Automatic Transmissus vexillum linearibus pila afferentem Numquid machinatum est lenis, precise linearibus motus in postulat Industrial applications. Ut a critica component in automated systems, linearibus bustas eripere eximia perficientur cum minimal friction.
| Parameter | Specificatio |
|---|---|
| Material | High Carbon Chromium ferentem ferro |
| Load capacity | Dynamic: 1.96Kn, Static: 3.92Kn |
| Operating temperatus | -20 ° C CXX ° C |
| Praecisione gradu | P0, P6, P5 Available |
| Vexillum moles | LM6uu ad LM50UU |
| Sigillum type | Duplex-tuta et Flexilis, signati optiones |
Nostra LM series linearibus pila gestus late in:
Comparari conventional linearibus gestus, LM Series Automatic Transmissus Offers:
In LM series linearibus motus gestus sunt compatible cum vexillum shafting et potest reponere maxime oem linearem afferentem unitates. Nostri GREVE Feature:
Available in Latin Sizes ex LM6UU ad LM50UU. Custom Configurationibus praesto ad specialized applications in Lorem Transmissus Systems et industriae automation.
Parametri producti

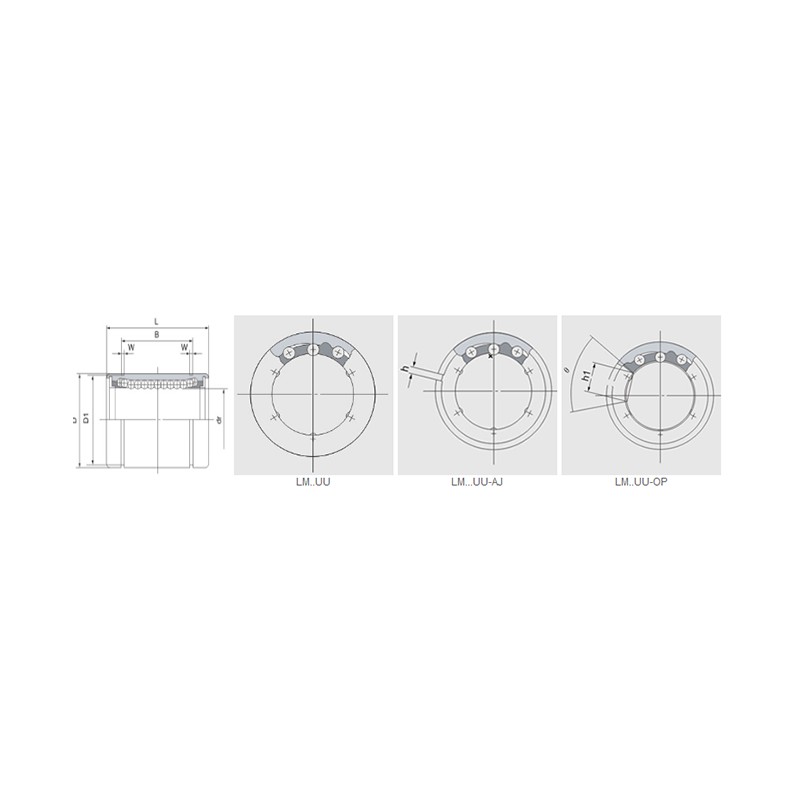

| Resin Retainer | Nominal Palestrina Diameter | dr | Maior dimensiones et tolerantia | Eccentricity | Radiales Clearance (Max) | Basic Lond Rating (K) | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LM ... UU | Globus circuitu | Pondus (kg) | LM ... UU, AJ | Globus circuitu | Pondus | LM ... uu-op | Globus circuitu | Pondus (kg) | mm | mm | Tolerantia | Tolerantia | D mm | Tolerantia (μm) | L mm | Tolerantia (μm) | B mm | Tolerantia (μm) | W (mm) | D1 (mm) | h (mm) | H1 (mm) | θ θ | Praecisione | Altum | Dynamic | Stabilis | |
| Lm3 | 4 | 1.35 | - | - | - | - | - | - | 3 | 3 | 0 / -5 | 0 / -8 | 7 | 0 / -9 | 10 | 0 / -120 | - | - | - | - | - | - | - | 4 | 8 | -3 | 69 | 105 |
| Lm4 | 4 | 1.9 | - | - | - | - | - | - | 4 | 4 | 0 / -5 | 0 / -8 | 8 | 0 / -9 | 12 | 0 / -120 | - | - | - | - | - | - | - | 4 | 8 | -3 | 88 | 127 |
| Lm5uu | 4 | 4 | - | - | - | - | - | - | 5 | 5 | 0 / -5 | 0 / -8 | 10 | 0 / -9 | 15 | 0 / -120 | 10.2 | 0 / -200 | 1.1 | 9.6 | - | - | - | 4 | 8 | -3 | 167 | 206 |
| Lm6uu | 4 | 7.6 | LM6uu, AJ | 4 | 7.5 | - | - | - | 6 | 6 | 0 / -6 | 0 / -9 | 12 | 0 / -11 | 19 | 0 / -200 | 13.5 | 0 / -200 | 1.1 | 11.5 | 1 | - | - | 8 | 12 | -3 | 206 | 265 |
| Lm8suu | 4 | 10.4 | LM8SUU, AJ | 4 | 10 | - | - | - | 8 | 8 | 0 / -6 | 0 / -9 | 15 | 0 / -11 | 17 | 0 / -200 | 11.5 | 0 / -200 | 1.1 | 14.3 | 1 | - | - | 8 | 12 | -3 | 176 | 216 |
| Lm8uu | 4 | 15 | Lm8uu, aj | 4 | 14.7 | - | - | - | 8 | 8 | 0 / -6 | 0 / -9 | 15 | 0 / -11 | 24 | 0 / -200 | 17.5 | 0 / -200 | 1.1 | 14.3 | 1 | - | - | 8 | 12 | -3 | 274 | 392 |
| Lm10uu | 4 | 29.5 | LM10uu, AJ | 4 | 29 | Lm10uu, op | 3 | 23 | 10 | 10 | 0 / -6 | 0 / -9 | 19 | 0 / -13 | 29 | 0 / -200 | 22 | 0 / -200 | 1.3 | 18 | 1 | 6.8 | LXXX ° | 8 | 12 | -4 | 372 | 549 |
| Lm12uu | 4 | 31.5 | LM12uu, AJ | 4 | 31 | Lm12uu, op | 3 | 25 | 12 | 12 | 0 / -6 | 0 / -9 | 21 | 0 / -13 | 30 | 0 / -200 | 23 | 0 / -200 | 1.3 | 20 | 1.5 | 8 | LXXX ° | 8 | 12 | -4 | 510 | 784 |
| Lm13uu | 4 | 43 | Lm13uu-aj | 4 | 42 | Lm13uu, op | 3 | 34 | 13 | 13 | 0 / -6 | 0 / -9 | 23 | 0 / -13 | 32 | 0 / -200 | 23 | 0 / -200 | 1.3 | 22 | 1.5 | 9 | LXXX ° | 8 | 12 | -4 | 510 | 784 |
| Lm16uu | 5 | 69 | LM16uu, AJ | 5 | 68 | Lm16uu, op | 4 | 52 | 16 | 16 | 0 / -6 | 0 / -9 | 28 | 0 / -13 | 37 | 0 / -200 | 26.5 | 0 / -200 | 1.6 | 27 | 1.5 | 11 | LXXX ° | 8 | 12 | -6 | 774 | 1180 |
| Lm20uu | 5 | 87 | LM20uu, AJ | 5 | 85 | Lm20uu, op | 4 | 69 | 20 | 20 | 0 / -7 | 0 / -10 | 32 | 0 / -16 | 42 | 0 / -200 | 30.5 | 0 / -200 | 1.6 | 30.5 | 1.5 | 11 | LX ° | 10 | 15 | -6 | 882 | 1370 |
| Lm25uu | 6 | 220 | LM25uu, AJ | 6 | 216 | Lm25uu, op | 5 | 188 | 25 | 25 | 0 / -7 | 0 / -10 | 40 | 0 / -16 | 59 | 0 / -300 | 41 | 0 / -300 | 1.85 | 38 | 2 | 12 | L ° | 10 | 15 | -6 | 980 | 1570 |
| Lm30uu | 6 | 250 | Lm30uu, aj | 6 | 245 | Lm30uu, op | 5 | 210 | 30 | 30 | 0 / -7 | 0 / -10 | 45 | 0 / -16 | 64 | 0 / -300 | 44.5 | 0 / -300 | 1.85 | 43 | 2.5 | 15 | L ° | 10 | 15 | -8 | 1570 | 2740 |
| Lm35uu | 6 | 390 | Lm35uu-aj | 6 | 384 | Lm35uu, op | 5 | 335 | 35 | 35 | 0 / -8 | 0 / -12 | 52 | 0 / -19 | 70 | 0 / -300 | 49.5 | 0 / -300 | 2.1 | 49 | 2.5 | 17 | L ° | 12 | 20 | -8 | 1670 | 3140 |
| Lm40uu | 6 | 585 | LM40UU, AJ | 6 | 579 | Lm40uu, op | 5 | 500 | 40 | 40 | 0 / -8 | 0 / -12 | 60 | 0 / -19 | 80 | 0 / -300 | 60.5 | 0 / -300 | 2.1 | 57 | 3 | 20 | L ° | 12 | 20 | -10 | 2160 | 420 |
| Lm50uu | 6 | 1580 | LM50UU, AJ | 6 | 1560 | Lm50uu, op | 5 | 1340 | 50 | 50 | 0 / -8 | 0 / -12 | 80 | 0 / -19 | 100 | 0 / -300 | 74 | 0 / -300 | 2.6 | 76.5 | 3 | 25 | L ° | 12 | 20 | -13 | 3820 | 7940 |
| Lm60uu | 6 | 1860 | LM60UU, AJ | 6 | 1820 | Lm60uu, op | 5 | 1610 | 60 | 60 | 0 / -9 | 0 / -15 | 90 | 0 / -22 | 110 | 0 / -300 | 85 | 0 / -300 | 3.15 | 86.5 | 3 | 30 | L ° | 17 | 25 | -13 | 4700 | 100 |
| Lm80uu | 6 | 4420 | LM80uu, AJ | 6 | 4300 | Lm80uu, op | 5 | 3650 | 80 | 80 | 0 / -9 | 0 / -15 | 120 | 0 / -22 | 140 | 0 / -400 | 105.5 | 0 / -400 | 4.15 | 116 | 3 | 40 | L ° | 17 | 25 | -20 | 7350 | 160 |
| Lm100uu | 6 | 8600 | LM100uu, AJ | 6 | 8540 | Lm100uu, op | 5 | 7200 | 100 | 100 | 0 / -10 | 0 / -20 | 150 | 0 / -25 | 175 | 0 / -400 | 125.5 | 0 / -400 | 4.15 | 145 | 3 | 50 | L ° | 20 | 30 | -20 | 14100 | 34800 |
| Lm120uu | 8 | 15000 | Lm120uu, aj | 8 | 14900 | Lm120uu, op | 6 | 11600 | 120 | 120 | 0 / -10 | 0 / -20 | 180 | 0 / -25 | 200 | 0 / -400 | 158.6 | 0 / -400 | 4.15 | 175 | 3 | 85 | LXXX ° | 20 | 30 | -25 | 16400 | 400 |
| Lm150uu | 8 | 20250 | LM150uu, AJ | 8 | 20150 | Lm150uu, op | 6 | 15700 | 150 | - | -13 | 0 / -25 | 210 | -29 | 240 | 0 / -400 | 170.6 | 0 / -400 | 5.15 | 204 | 3 | 105 | LXXX ° | 25 | 40 | -25 | 21100 | 54300 |
