Et 51300 series detegit pila afferentem est summus praecisione, summus onus-portans mechanica component quae late in variis genibus industriae apparatu et machinery. Hoc series in beati utitur par taperati scutulis et afferentem sedes ad sustinere axial onerat et providere bonum gyratorius stabilitatem. In consilio 51300 series gestus efficaciter reducere friction durante summus celeritate operatio, ita extendens muneris vitae. Et materiam est fere summus vires Alloy ferro, cursus optimum gerunt resistentia et lassitudine resistentia. Praeterea, hoc genus afferentem est facile ut install et ponere, et idoneam ad Automotive, Aerospace, gravibus machinatione et aliis agris.
Parametri producti

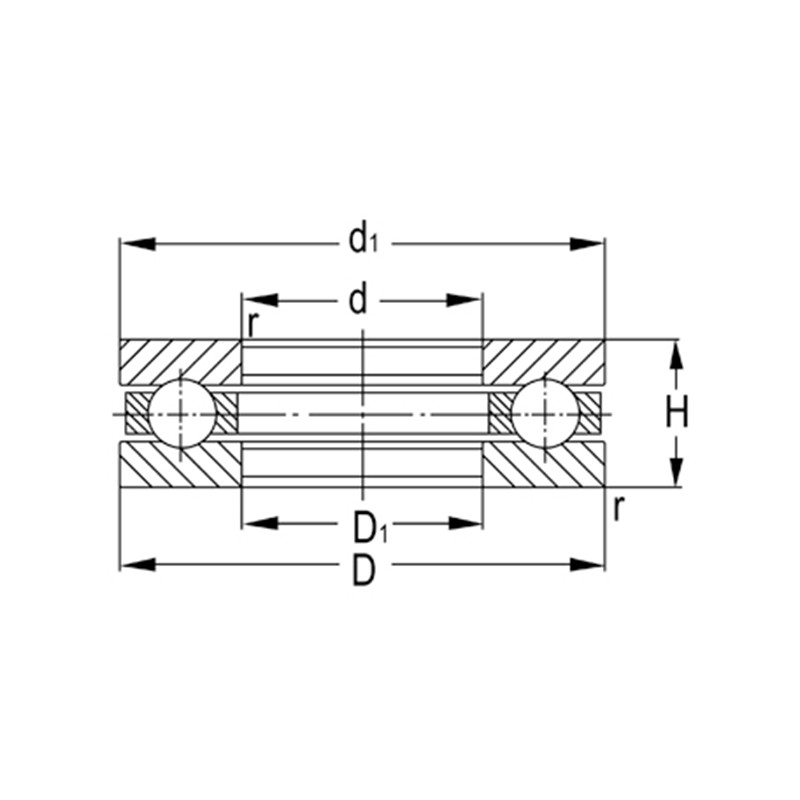

| Designatio | Principalem dimensiones (mm) | Basic onus ratings (K) | LiMND Celeritati (RPM) | Pondus | ||||
| d | D | T | Dynamic (CR) | Static (Cor) | Uncto | Oleum | (KG) | |
| 51305 | 25 | 52 | 18 | 35.5 | 61.5 | 3000 | 4300 | 0.17 |
| 51306 | 30 | 60 | 21 | 42.8 | 78.5 | 2400 | 3600 | 0.26 |
| 51307 | 35 | 68 | 24 | 55.2 | 105 | 2000 | 3200 | 0.37 |
| 51308 | 40 | 78 | 26 | 69.2 | 135 | 1900 | 3000 | 0.53 |
| 51309 | 45 | 85 | 28 | 75.8 | 150 | 1700 | 2600 | 0.66 |
| 51310 | 50 | 95 | 31 | 96.5 | 202 | 1600 | 2400 | 0.92 |
| 51311 | 55 | 105 | 35 | 115 | 242 | 1500 | 2200 | 1.28 |
| 51312 | 60 | 110 | 35 | 118 | 262 | 1400 | 2000 | 1.37 |
| 51313 | 65 | 115 | 36 | 115 | 262 | 1300 | 1900 | 1.48 |
| 51314 | 70 | 125 | 40 | 148 | 340 | 1200 | 1800 | 1.98 |
| 51315 | 75 | 135 | 44 | 162 | 380 | 1100 | 1700 | 2.58 |
| 51316 | 80 | 140 | 44 | 160 | 380 | 1000 | 1600 | 2.69 |
| 51317 | 85 | 150 | 49 | 208 | 495 | 950 | 1500 | 3.47 |
| 51318 | 90 | 155 | 50 | 205 | 495 | 900 | 1400 | 3.69 |
| 51320 | 100 | 170 | 55 | 235 | 595 | 800 | 1200 | 4.86 |
