In (XXIX) CD series repellit sphaericae firmatione est summus perficientur afferentem specialiter disposito sustinere gravibus onera et axalia copiis. Est late in metallurgy, metalla, shipbuilding et gravibus machinery industries. Structural pluma est quod tam interior et exteriores annulos sphaerica in consilio, quod potest efficaciter aptet ad angularem obsessio causatur per installation errores vel hastile eccentricitatem. Et scutulis huius series in gestus cylindrici, providing maior contactus area et significantly improving onus-afferentem facultatem et stabilitatem. In eodem tempore, in (XXIX) CD series gestus habere altum gerunt resistentia et æstus resistentia, cursus fideles sub diu-terminus-onus operationem. Eius principalis commoda optimum labore resistentia et humilis sonitus characteres, faciens idoneam usum in dura ambitus. Ferre sustentationem et lubricatae sunt etiam relative simplex, ulteriores reducing usu costs.
Parametri producti

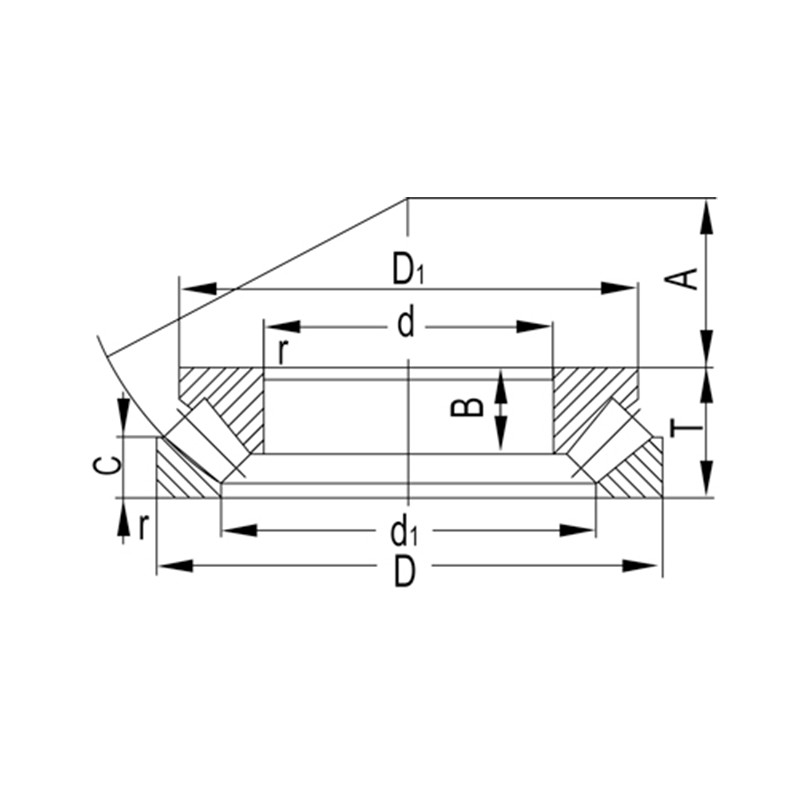

| Designatio | Principalem dimensiones (mm) | Basic onus ratings (K) | LiMND Celeritati (RPM) | Pondus | ||||
|---|---|---|---|---|---|---|---|---|
| d | D | B | Rs min | Dynamic (CR) | Static (Cor) | Oleum | (KG) | |
| 29412 | 60 | 130 | 42 | 1.5 | 283 | 805 | 2600 | 2.78 |
| 29413 | 65 | 140 | 45 | 2 | 330 | 945 | 2400 | 3.44 |
| 29414 | 70 | 150 | 48 | 2 | 365 | 1040 | 2200 | 4.19 |
| 29415 | 75 | 160 | 51 | 2 | 415 | 1190 | 2100 | 5.07 |
| 29416 | 80 | 170 | 54 | 2.1 | 460 | 1380 | 1900 | 6.09 |
| 29417 | 85 | 180 | 58 | 2.1 | 490 | 1480 | 1800 | 7.2 |
| 29418 | 90 | 190 | 60 | 2.1 | 545 | 1680 | 1700 | 8.38 |
| 29420 | 100 | 210 | 67 | 3 | 685 | 2130 | 1500 | 11.5 |
| 29422 | 110 | 230 | 73 | 3 | 845 | 2620 | 1400 | 15 |
| 29424 | 120 | 250 | 78 | 4 | 975 | 3050 | 1300 | 18.6 |
| 29426 | 130 | 270 | 85 | 4 | 1080 | 3550 | 1200 | 23.7 |
| 29428 | 140 | 280 | 85 | 4 | 1110 | 3750 | 1200 | 25.2 |
| 29430 | 150 | 300 | 90 | 4 | 1280 | 4350 | 1100 | 30.5 |
| 29432 | 160 | 320 | 95 | 5 | 1500 | 5150 | 1000 | 37 |
| 29434 | 170 | 340 | 103 | 5 | 1660 | 5750 | 940 | 45 |
| 29436 | 180 | 360 | 109 | 5 | 1840 | 6200 | 890 | 52.9 |
| 29438 | 190 | 380 | 115 | 5 | 2010 | 6800 | 840 | 62 |
| 29440 | 200 | 400 | 122 | 5 | 2230 | 7650 | 790 | 73.3 |
